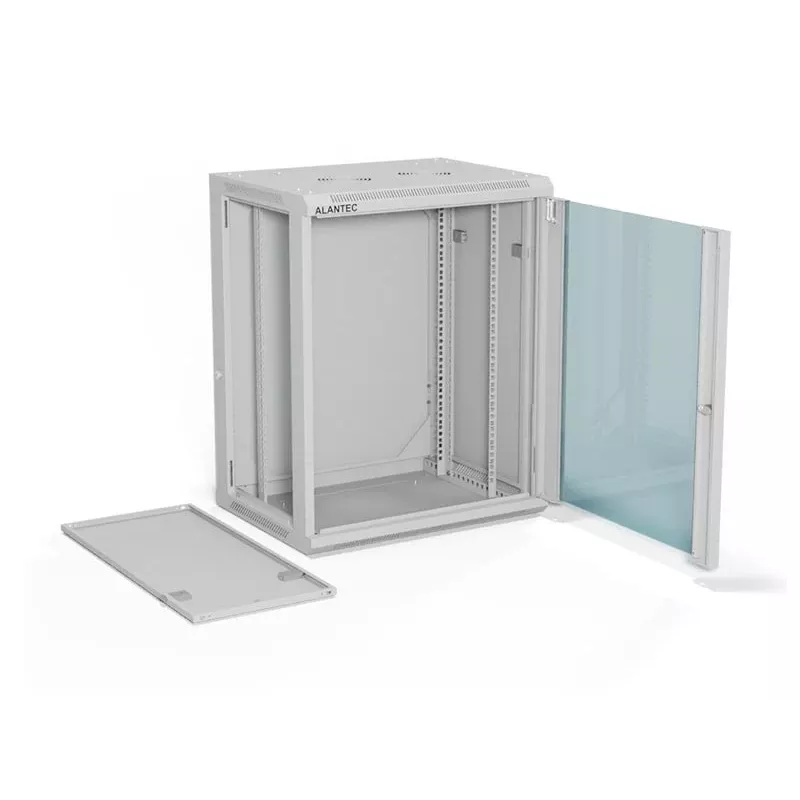

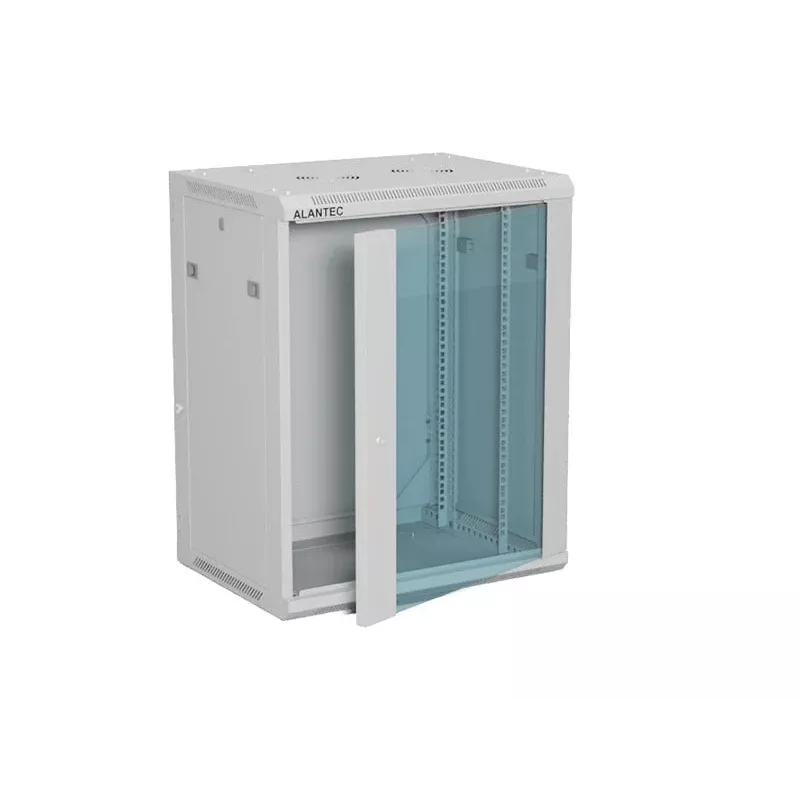

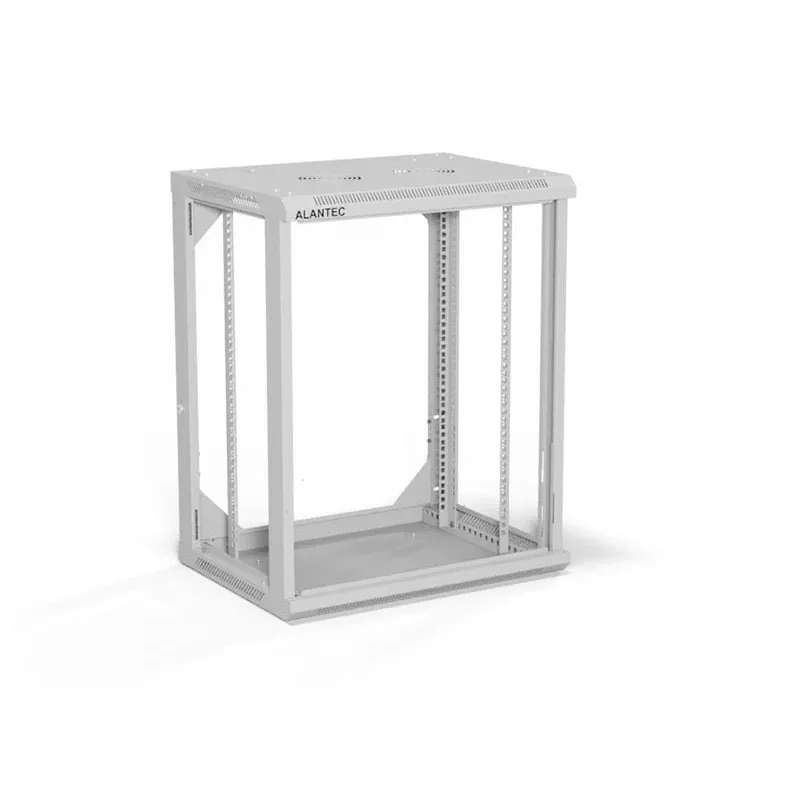

A-LAN ALANTEC 19 15U 600x450 wandbehuizing, grijs

When a school's IT coordinator needed to secure a 24-port switch and patch panel in a narrow hallway closet, the ALANTEC 19" 15U wall-mounted cabinet provided the lockable, space-saving solution. Its 600x450 mm footprint and 15U capacity accommodate standard 19-inch rack devices while keeping them protected and organized.

Key specifications

• Rack standard: 19-inch
• Rack units: 15U
• External dimensions (W x D x H): 600 x 450 x 760 mm
• Colour: Grey (RAL 7035)
• Material: SPCC cold rolled steel, frame thickness 1.2 mm, mounting profile thickness 2.0 mm
• Front door: 5 mm tempered glass, lockable
• Side panels: removable and lockable
• Maximum static load: 60 kg
• IP protection: IP20
• Cable entry: top and bottom

Why choose it

Built from heavy-duty SPCC steel, this cabinet ensures long-term durability and stable equipment mounting. The tempered glass front door allows visual monitoring of indicator lights without opening the cabinet, while the lockable side panels and door prevent unauthorized access. Its wall-mounted design frees up floor space, making it ideal for areas with limited room. The RAL 7035 grey finish blends seamlessly into professional environments.

Ideal use cases

• Small to medium business server rooms
• Network closets in educational institutions
• Retail back offices requiring secure IT enclosures
• Industrial control panels and automation systems
• Remote branch offices with space constraints

Good to know

The cabinet includes top and bottom cable entry points for flexible cable management. Its IP20 rating is suitable for indoor use. The wall-mounted design requires proper wall anchoring (mounting hardware not included).
