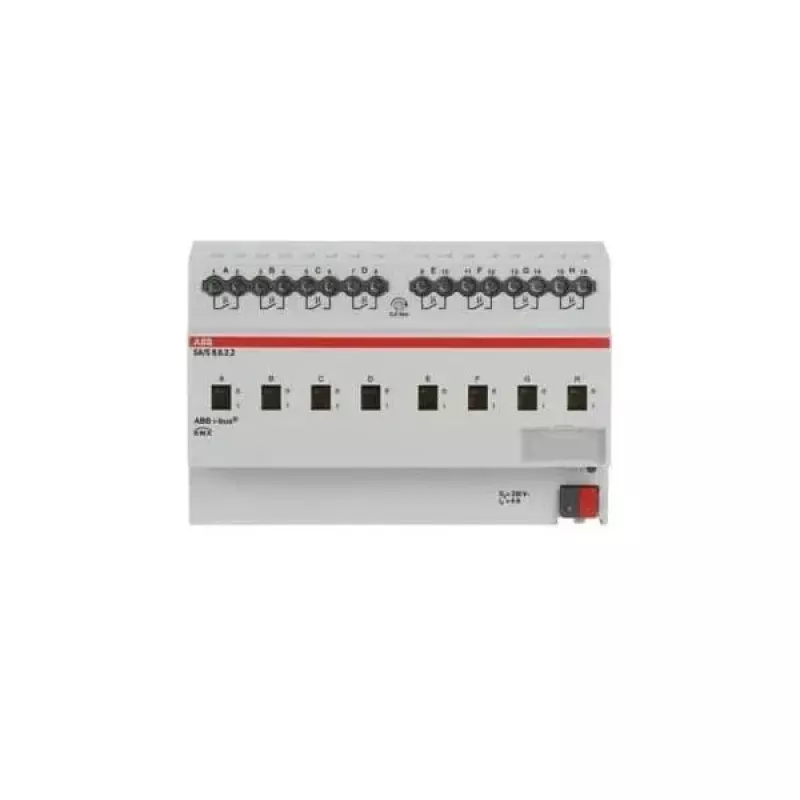

ABB KNX schakelactor 8-voudig, 6A, DIN-rail SA/S8.6.2.2 2CDG110255R0011

KNX switching actuator with 8 independent outputs, each rated for 6 A switching current. This DIN rail mounted device enables control of lighting and other electrical loads via KNX bus, with manual operation and status indication per channel.

Advantages

Compact 4-module width saves space in distribution boards. Manual push buttons allow local control without bus communication. LED indicators provide clear status feedback for each output.

Suitable for

• Switching resistive, inductive, and capacitive loads
• Lighting control in residential and commercial buildings
• KNX installations requiring multi-channel switching

Key specifications

• 8 outputs, 6 A each (AC1)
• Rated voltage: 230 V AC
• KNX bus powered (21-30 V DC)
• DIN rail mounting, width 4 modules (72 mm)
• Screw terminals for load connections
• Manual operation with push buttons
• LED status indication per channel
• Functions: switching, scene control, central functions, time functions, logic functions

Recommendations

Ideal for KNX projects needing reliable multi-channel switching with manual override capability.
