Acculader SkyRC B6AC Neo 10A AC DC LiPo Li-Ion LiFePO4

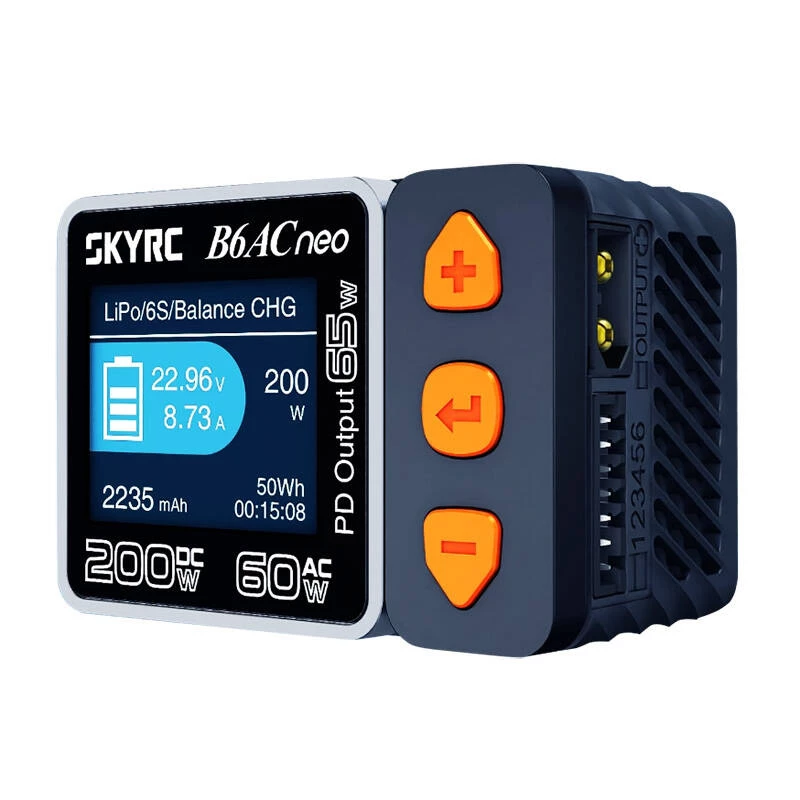

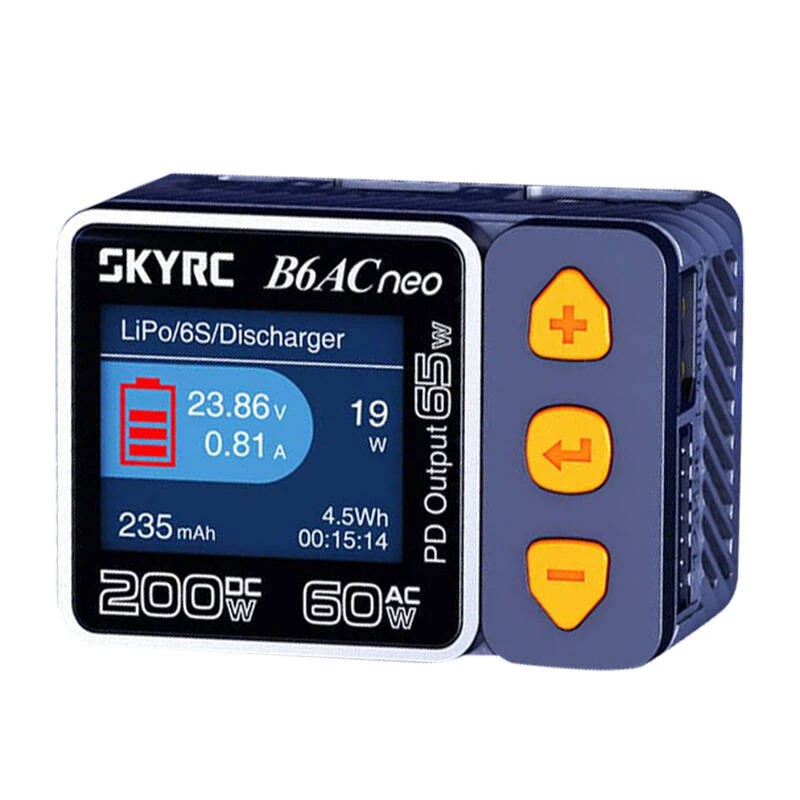

SkyRC B6ACneo is a compact AC/DC battery charger compatible with LiPo, Li‑Ion and LiFePO4 chemistries. Smaller than a credit card, the unit supports DC charging up to 200W (10A max) and AC charging up to 60W, and includes an XT60 DC input and universal 100–240V AC input. A 4.5 cm display and a built‑in balance port provide voltage monitoring and balance functions for multi‑cell packs.

Advantages

The B6ACneo combines a very small form factor with high DC charging power, reducing charge times while remaining portable. The device offers both XT60 DC input and universal AC compatibility for flexible power options. A balance port improves discharge and servicing of individual cells, and the onboard MCU with a proprietary rectifier circuit increases conversion efficiency and helps minimize power loss during charging.

Suitable for

• Charging LiPo, Li‑Ion and LiFePO4 battery packs for RC models
• Portable charging from DC sources (XT60) or mains AC (100–240V)
• Monitoring and balancing multi‑cell battery packs

Key specifications

• Maximum DC power: 200W (up to 10A)
• Maximum AC power: 60W
• Supported chemistries: LiPo, Li‑Ion, LiFePO4
• DC input connector: XT60
• AC input: Universal 100–240V
• Balance port: yes (cell voltage display and balancing)
• Discharge power (with balance port): up to 19W; main port alone: 5W
• Display: 4.5 cm
• Manufacturer: SKYRC, MPN SK-100200, EAN 6930460008206

How to use

Connect the charger to a power source: use an XT60 connection to a suitable DC supply for up to 200W or plug the unit into mains AC (100–240V) for up to 60W. Attach the battery to the main output leads and connect the balance plug to the balance port for multi‑cell packs. Use the display to monitor total pack voltage and individual cell voltages, select the appropriate battery chemistry and set the desired charge current. Follow on‑screen prompts to start charging or balancing.

Recommendations

Always select the correct battery chemistry and cell count before charging. Use the balance port when charging multi‑cell LiPo/Li‑Ion/LiFePO4 packs to enable balancing and faster safe discharge. Avoid exceeding the specified current limits and ensure good ventilation during high‑power DC charging. Regularly inspect connectors and battery condition to maintain safe operation.
