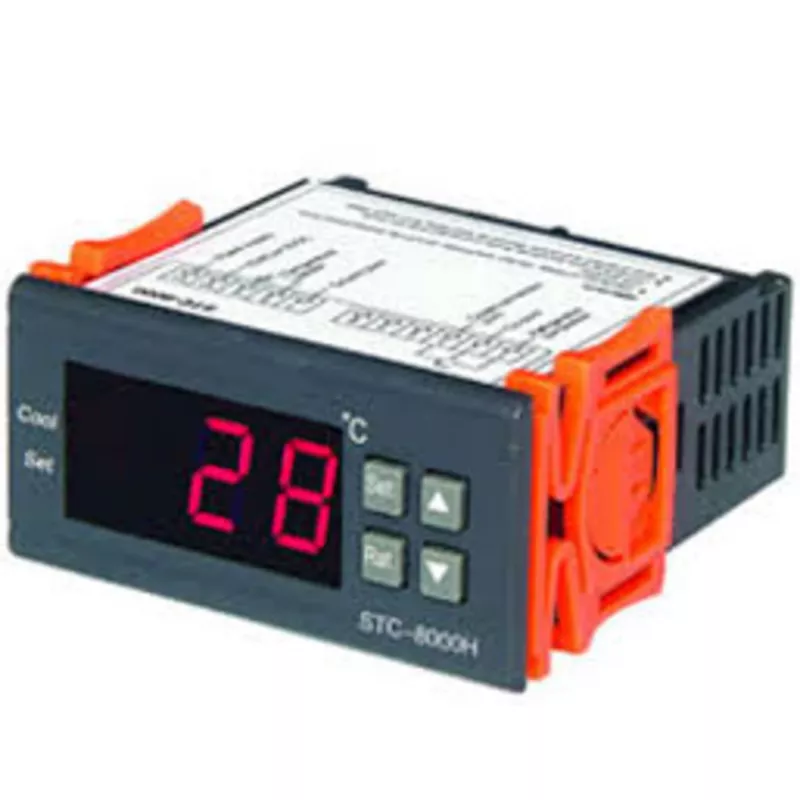

ALLNET 19 inch vervangende temperatuureenheid STC-8000H

The ALLNET 19inch Replacement Temperature Unit STC-8000H is a high-precision digital temperature controller designed for panel mounting. It features an LED display and NTC thermistor sensor for accurate temperature measurement and control in a range of -50°C to 99°C. Ideal for industrial and commercial applications requiring reliable temperature regulation.

Advantages

Accurate temperature control with 0.1°C resolution and ±1°C accuracy. Easy panel mount installation with standard cutout dimensions. Supports both cooling and heating modes with adjustable parameters. Built-in delay protection and alarm function enhance safety and reliability.

Suitable for

• Industrial temperature control systems
• HVAC equipment
• Refrigeration units
• Heating systems
• Laboratory and environmental chambers

Key specifications

• Control Type: Digital Temperature Controller
• Display Type: LED Digital Display
• Temperature Measurement Range: -50°C to 99°C
• Control Temperature Range: -50°C to 99°C
• Temperature Resolution: 0.1°C
• Temperature Accuracy: ±1°C (-40°C to 70°C)
• Sensor Type: NTC Thermistor (10KΩ/25°C)
• Power Supply: 230V AC, 50/60Hz
• Power Consumption: <3W
• Relay Output Current: 10A
• Relay Output Voltage: 250V AC
• Operating Temperature: 0°C to 60°C
• Relative Humidity: 20% to 85% (non-condensing)
• Mounting Type: Panel Mount
• Panel Cutout Dimensions (W x H): 71 x 29 mm
• Front Panel Dimensions (W x H): 75 x 34.5 mm
• Control Modes: Cooling or Heating
• Key Features: Temperature Calibration, Delay Protection, Alarm Function

Recommendations

For optimal performance, ensure proper sensor placement and calibration. Suitable for use in dry, non-condensing environments. Always follow manufacturer guidelines for installation and operation.
