ALLNET 19 inch wandbehuizing 12U 1-delig diepte 450mm lichtgrijs Flat Pack SMA-serie

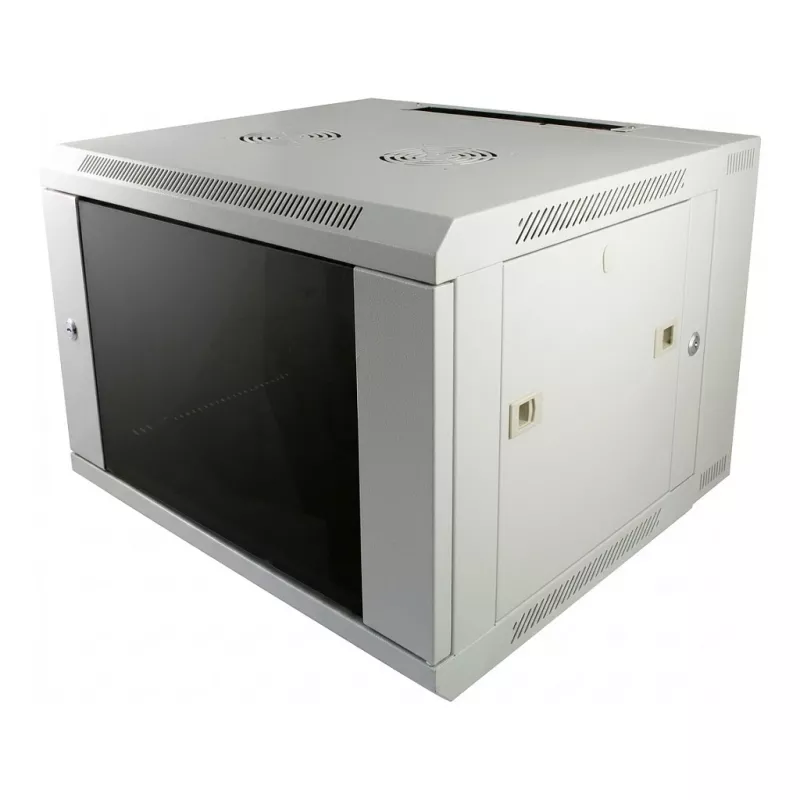

The ALLNET SMA-Series 19" wall-mount enclosure offers a robust and space-saving solution for housing network and IT equipment. With 12U of rack space and a depth of 450mm, this single-section cabinet is ideal for small to medium installations. Supplied as a flat pack for easy transport and assembly, it features a light grey (RAL 7035) finish and a front glass door with key lock for security.

Advantages

Space-saving wall-mount design frees up floor space. The flat pack delivery reduces shipping volume and allows for flexible on-site assembly. Removable side panels provide easy access for cable management and maintenance. Passive ventilation with fan cutouts ensures adequate airflow for your equipment.

Suitable for

• Network switches, patch panels, and routers
• Small server installations
• Audio/visual equipment
• Security system components

Key specifications

• Rack Units: 12U
• Form Factor: 19-inch
• Mounting Type: Wall-mount
• External Dimensions (W x D x H): 600 x 450 x 635 mm
• Colour: Light Grey (RAL 7035)
• Construction: Single-section, disassembled (flat pack)
• Door: Front glass door with key lock
• Side Panels: Removable
• Material: Steel
• Load Capacity: Up to 60 kg
• Cable Entry: Top and bottom with brush strips
• Ventilation: Passive, with fan cutouts
• Protection Class: IP20
• Series: SMA-Series

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the maximum load capacity. Use appropriate mounting hardware for wall installation.
