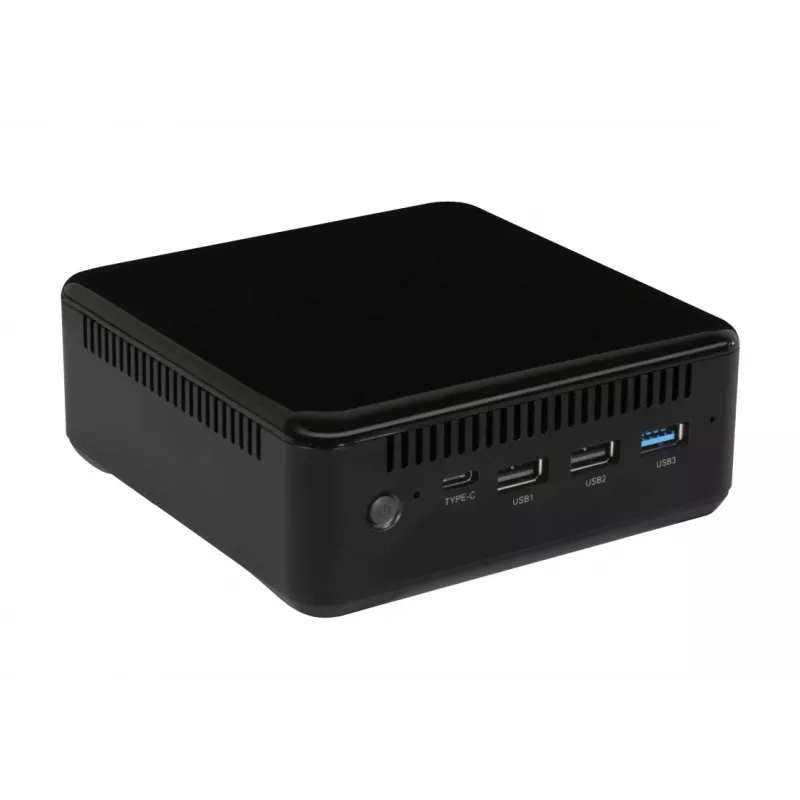

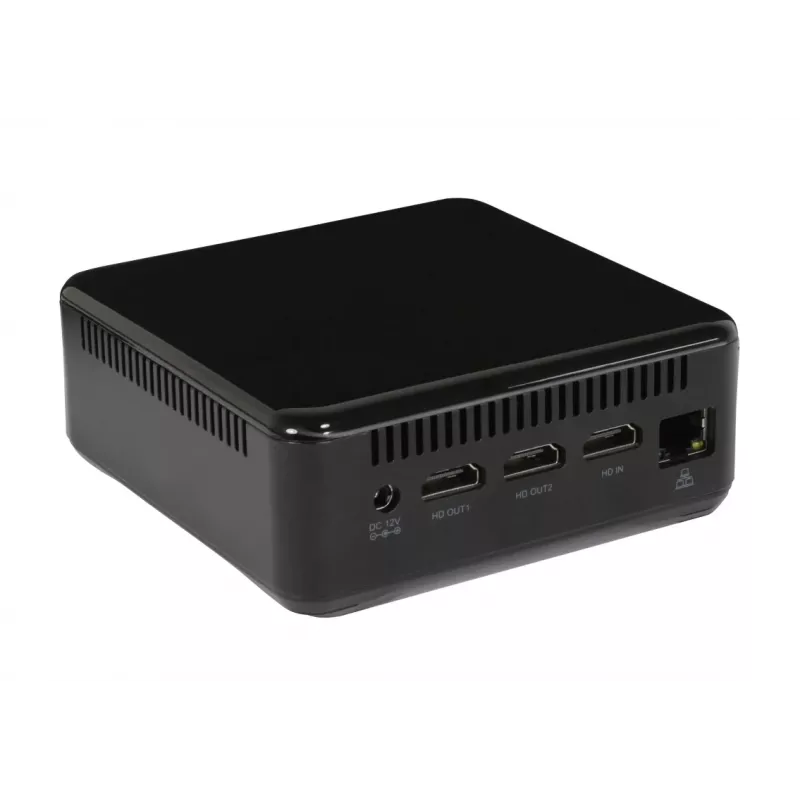

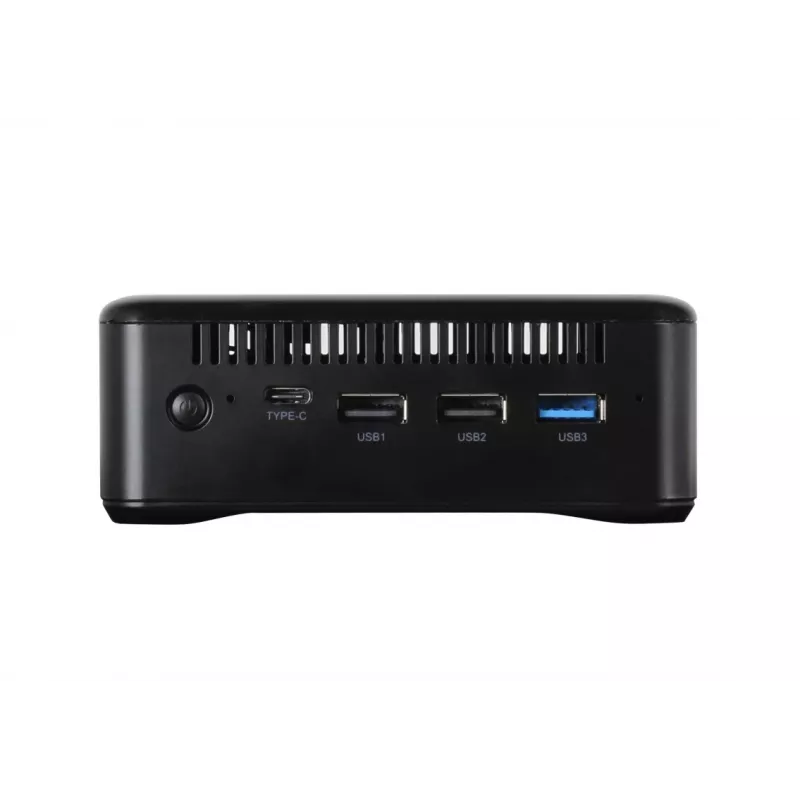

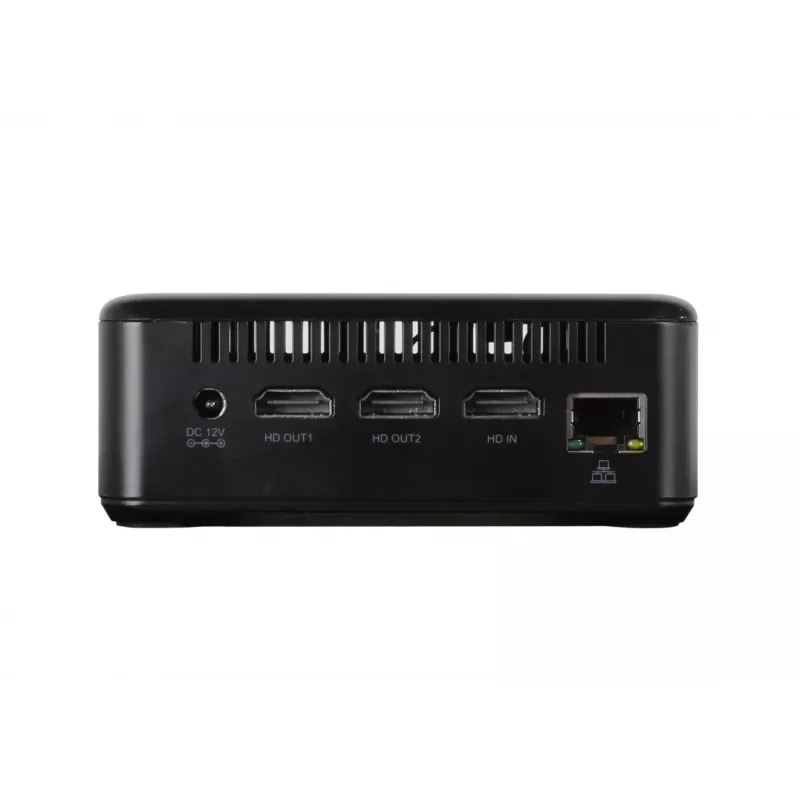

ALLNET NX5Pro mini-pc videoserver/client met Linux en Networkoptix 8GB/64GB (ALL-NX5Pro-864)

For video surveillance deployments that demand a compact, silent, always-on server, the ALLNET NX5Pro MiniPC eliminates the need for bulky, noisy NVR hardware. This fanless mini PC arrives with Linux and Networkoptix Nx Witness VMS pre-installed, so it is ready to record, manage, and view IP camera streams out of the box.

Who is it for

System integrators, security installers, and small-to-medium businesses looking for a dedicated video management appliance that fits into tight spaces, mounts behind a monitor, or runs 24/7 without fan noise.

Main features

• Intel Celeron J4125 quad-core processor for efficient multi-camera recording.
• 8GB DDR4 RAM and 64GB eMMC storage pre-loaded with Linux and Networkoptix VMS.
• Dual Gigabit Ethernet ports for camera network separation and uplink.
• Dual display output via HDMI 2.0 and DisplayPort 1.2 for local monitoring.
• Fanless aluminum chassis with VESA mount support for silent, space-saving installation.

Specifications

• Processor: Intel Celeron J4125 (Quad-Core, up to 2.7 GHz)
• Graphics: Intel UHD Graphics 600
• Memory: 8GB DDR4 SO-DIMM
• Storage: 64GB eMMC, plus M.2 2280 slot for SSD expansion
• Networking: 2x Gigabit Ethernet (RJ45)
• USB: 2x USB 3.0, 2x USB 2.0
• Video outputs: 1x HDMI 2.0, 1x DisplayPort 1.2
• Audio: 1x 3.5mm combo jack
• Power: DC 12V input
• Operating temperature: -10°C to 50°C

Tips

Pair this unit with PoE switches and IP cameras from major brands; Networkoptix Nx Witness supports thousands of camera models. For larger installations, add an M.2 SSD for extended recording retention.
