APC EasyPDU EPDU2232M metered rack PDU 32A 230V 24 stopcontacten

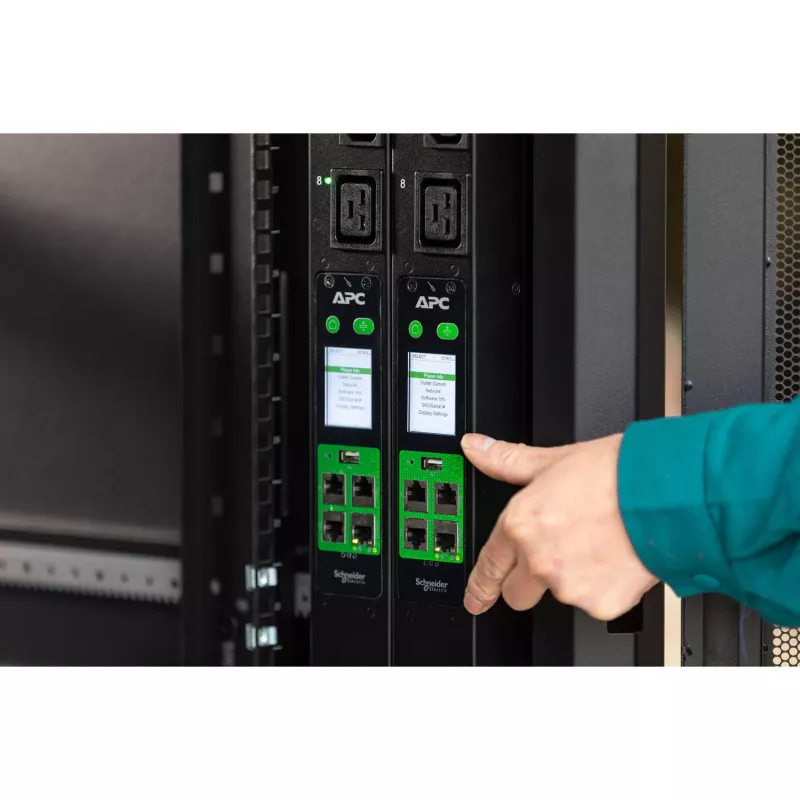

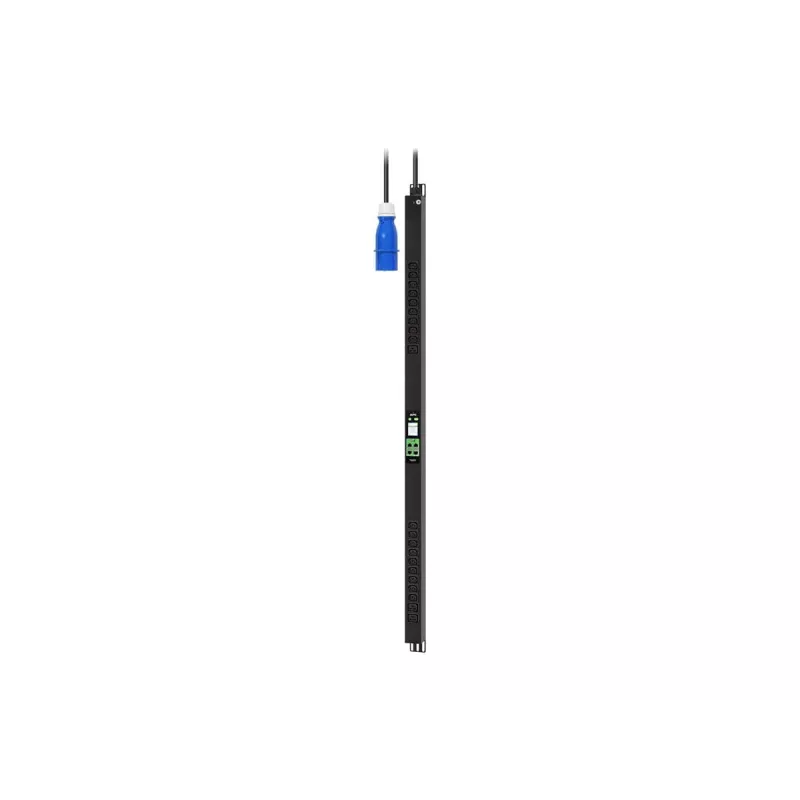

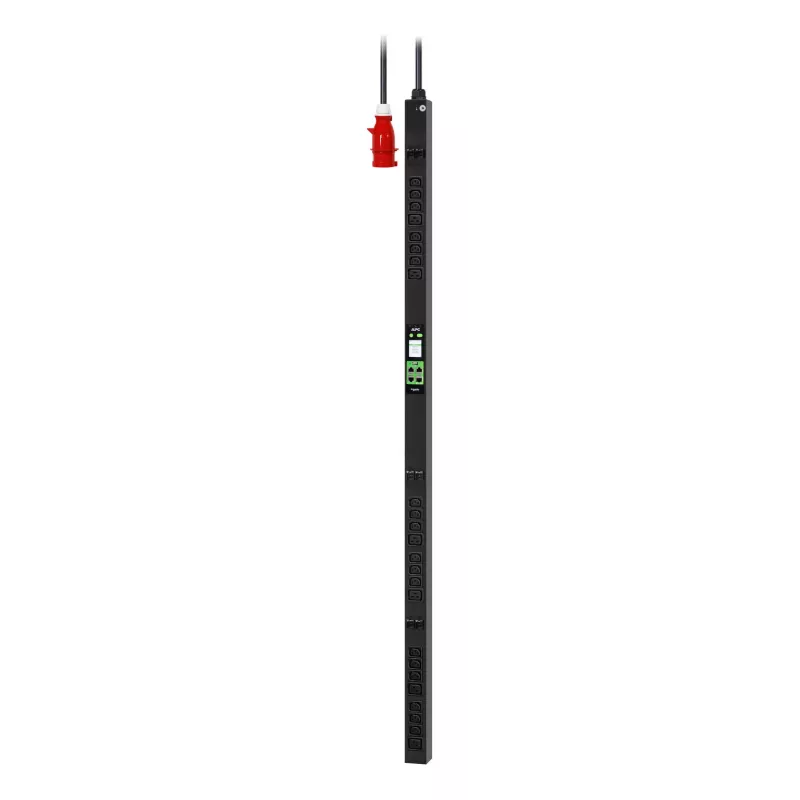

The APC EasyPDU EPDU2232M is a metered rack power distribution unit designed for efficient and intelligent power management in data centers and server rooms. It provides real-time remote monitoring of power consumption, enabling users to optimize energy usage and prevent overloads. With a 32A input and 24 outlets (18 C13 + 6 C19), this PDU is ideal for high-density equipment.

Advantages

Easy installation with a 1U horizontal rack-mount form factor. The integrated digital display shows current draw, and the web-based interface allows remote management via SNMP or CLI. Firmware upgrades can be performed over the network, ensuring future compatibility.

Suitable for

• Data centers requiring real-time power monitoring
• Server racks with mixed C13 and C19 devices
• IT professionals needing remote power management

Key specifications

• PDU Type: Metered
• Mounting: Horizontal, 1U
• Input: IEC 60309 32A 2P+E, 3m cable
• Output: 18x IEC C13 + 6x IEC C19
• Voltage: 230V AC
• Max Current: 32A
• Metering: Local digital display (Amps)
• Overload Protection: Hydraulic-magnetic circuit breakers
• Operating Temperature: 0-45°C
• Certifications: CE, EN 55022 Class A, EN 55024, IEC 60950-1, VDE

Recommendations

For optimal performance, ensure the input circuit is rated for 32A and use appropriate power cords for connected equipment. Regularly monitor load levels via the web interface to avoid overloads.
