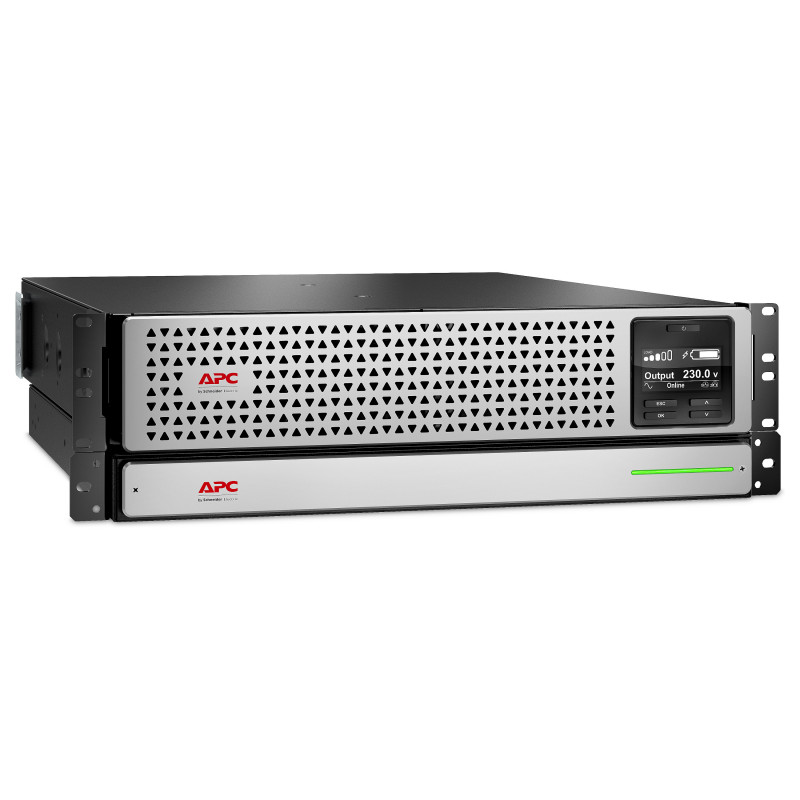

APC Smart-UPS SRT Li-Ion 1000VA RM 230V

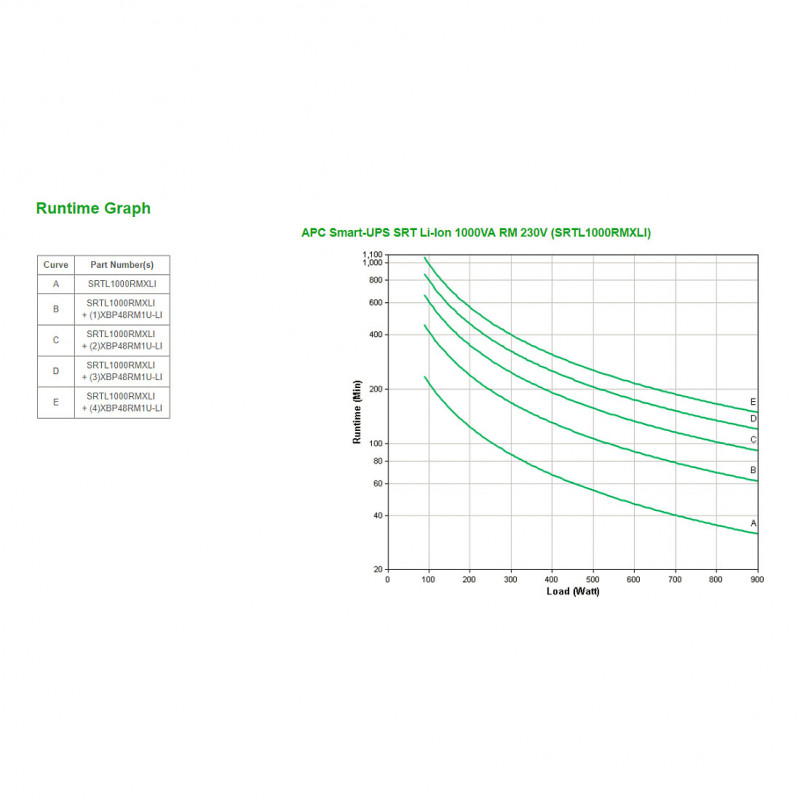

The APC Smart-UPS SRT Li-Ion 1000VA RM 230V Switch is a rackmount online UPS from the Smart-UPS On-Line series, delivering high-density double-conversion power protection with a pure sine wave output. It is designed for IT professionals and network administrators, providing a wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. The UPS supports scalable runtime and minimizes maintenance.

Key features

• Online double-conversion topology with pure sine wave output
• 1 kVA / 900 W output capacity

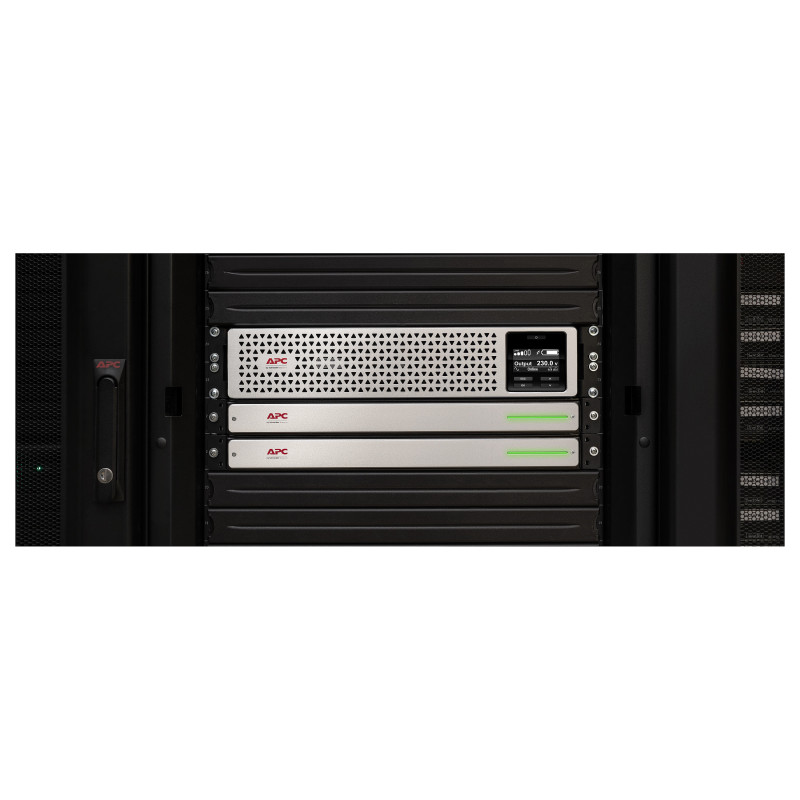

• Rackmount 3U form factor

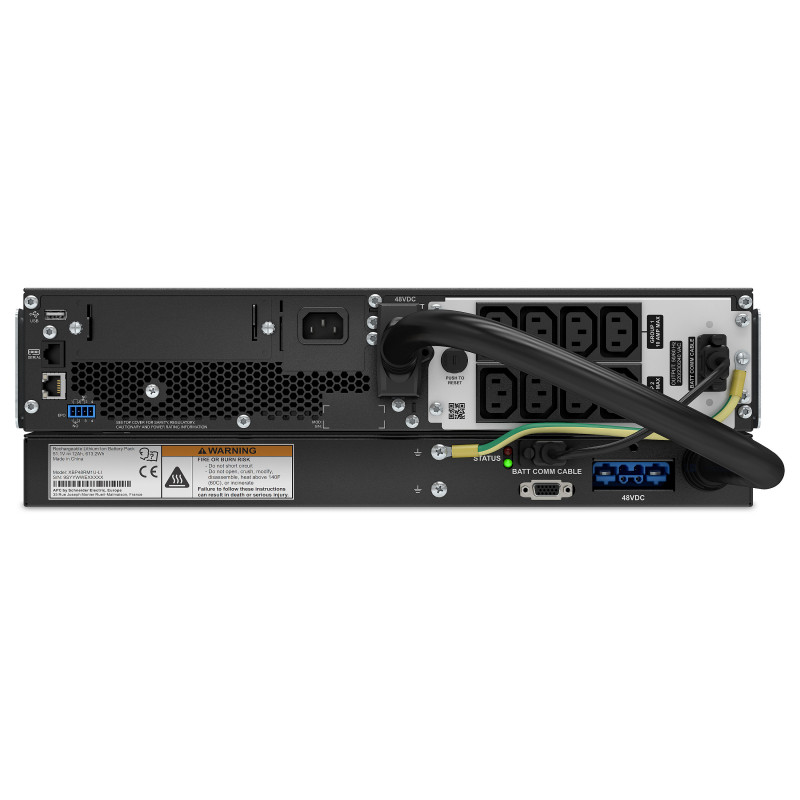

• 8x IEC 320 C13 outlets, 1x IEC 320 C14 input
• SmartSlot for optional network management card
• USB and serial (RJ-45) interfaces
• LCD display and LED status indicators
• Emergency power off (EPO), surge protection, audible alarms, auto-restart
• Hot-swappable, automatic battery test, cold start
• Generator compatible

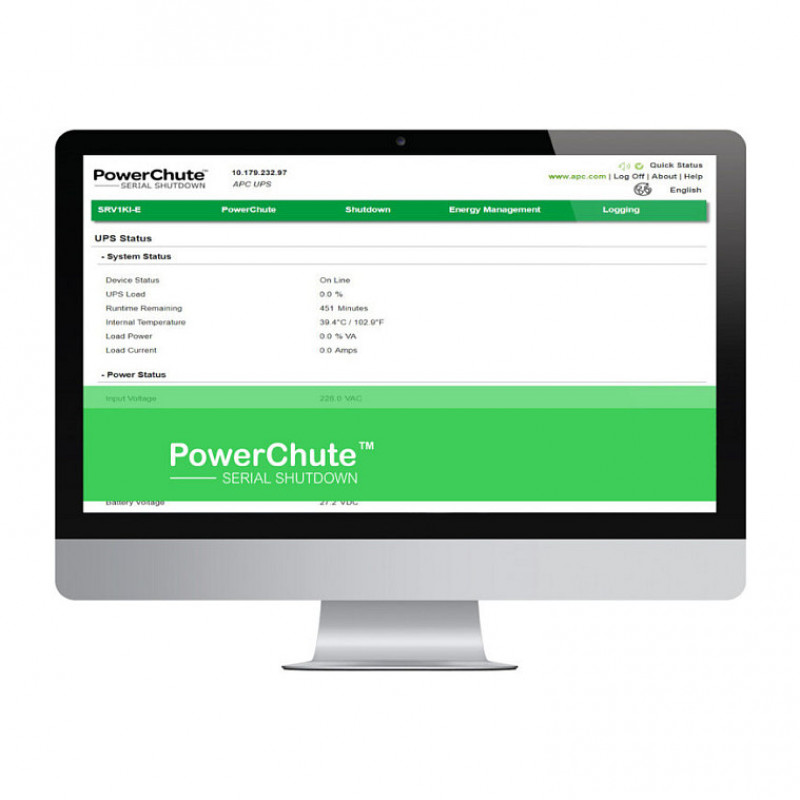

• EcoStruxure IT or third-party centralized management platform connectivity
• CE, EAC, RCM, VDE certified; Green Premium sustainability certification

Specifications

• Brand: APC
• MPN: SRTL1000RMXLI
• Product type: Uninterruptible Power Supply (UPS)
• UPS topology: Online
• Output power capacity: 1 kVA
• Output power: 900 W
• Input voltage range: 220-240 V
• Input frequency: 40/70 Hz
• Output voltage range: 220-240 V
• Output frequency: 50/60 Hz
• Surge energy rating: 340 J
• Crest factor: 3:1
• Noise level: 50 dB
• Battery technology: Lithium-Ion (Li-Ion)
• Battery life (max): 10 years
• Battery recharge time: 6 h
• Form factor: Rackmount
• Rack capacity: 3U
• Product colour: Black, Grey
• Display type: LCD
• IP code: IP20
• Operating temperature: 0 - 40 °C
• Storage temperature: -20 - 50 °C
• Operating relative humidity: 0 - 95%
• Storage relative humidity: 0 - 95%
• Operating altitude: 0 - 3000 m
• Storage altitude: 0 - 15000 m
• Width: 432 mm
• Depth: 590 mm
• Height: 128 mm
• Weight: 26.7 kg
• Package width: 600 mm
• Package depth: 850 mm
• Package height: 445 mm
• Package weight: 37.4 kg
• Products per pallet: 6
• HS code: 85078000
