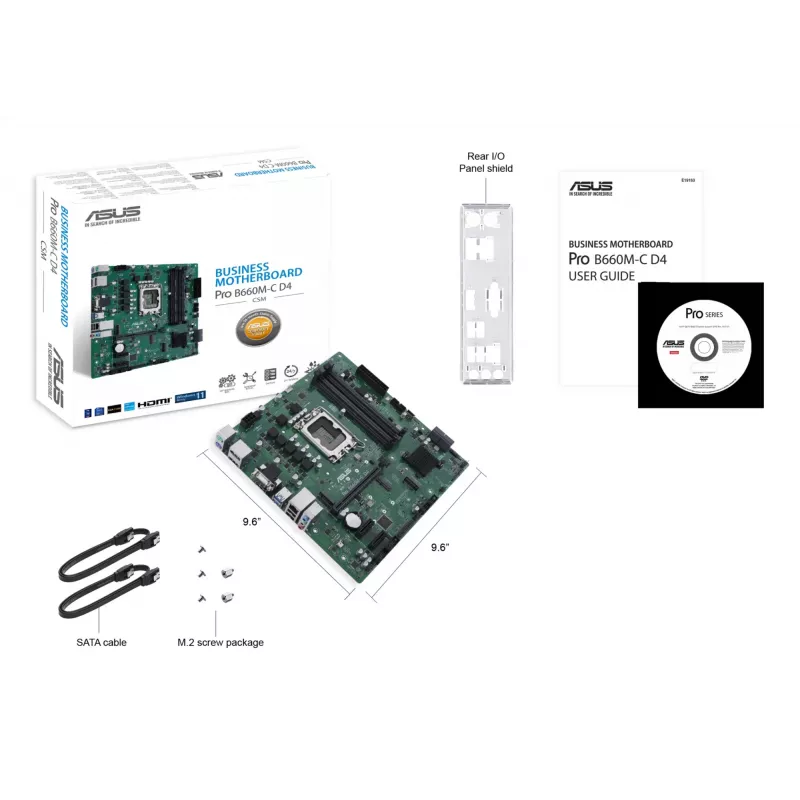

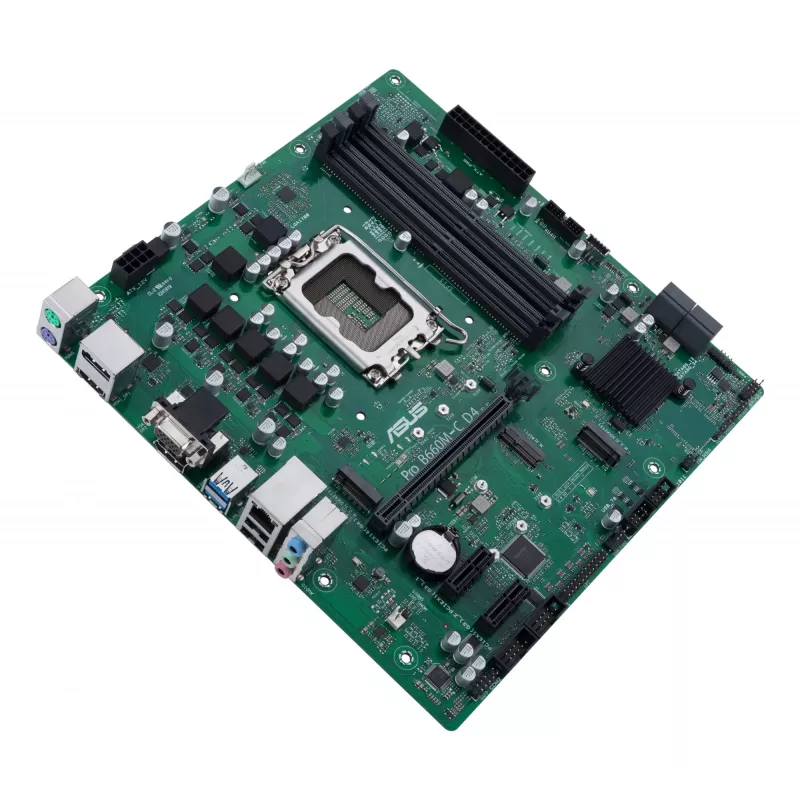

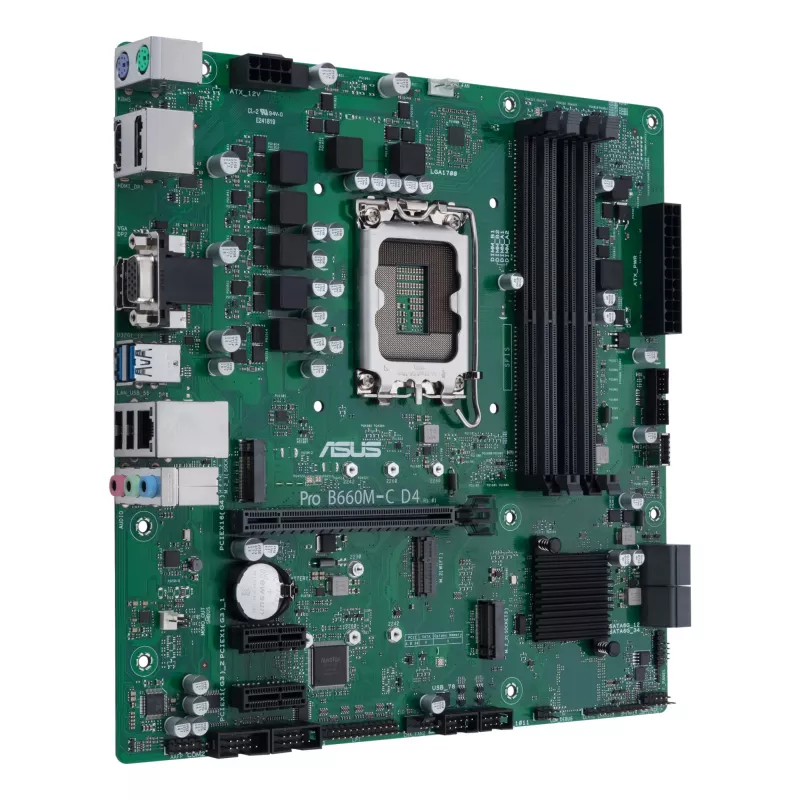

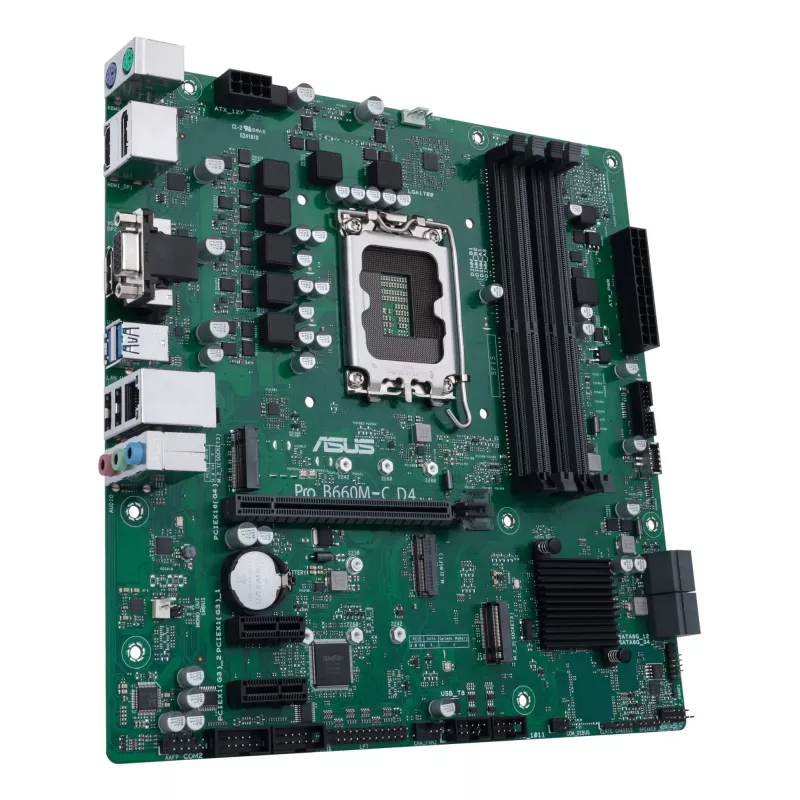

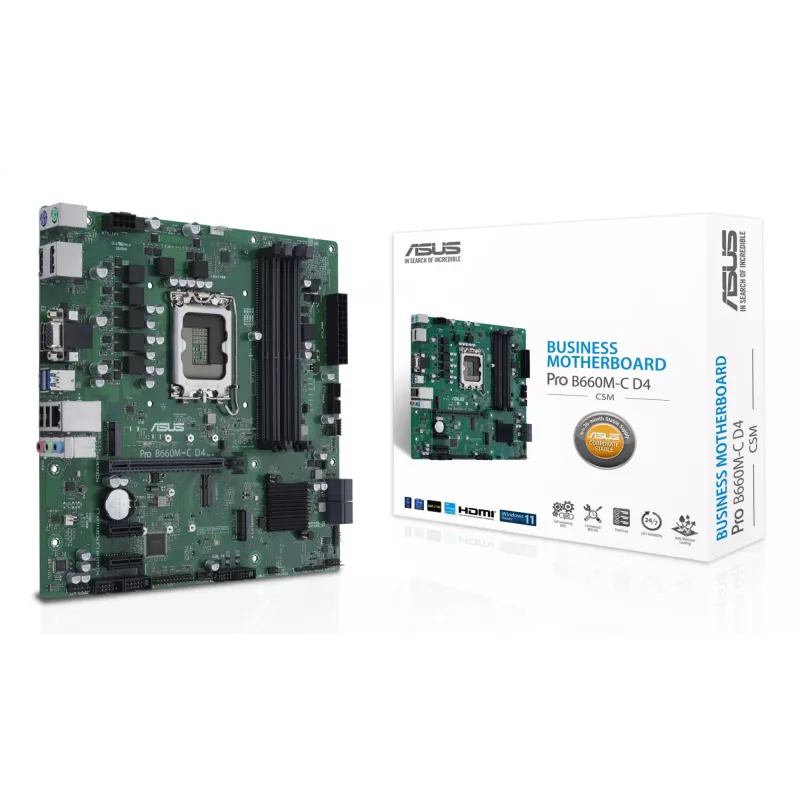

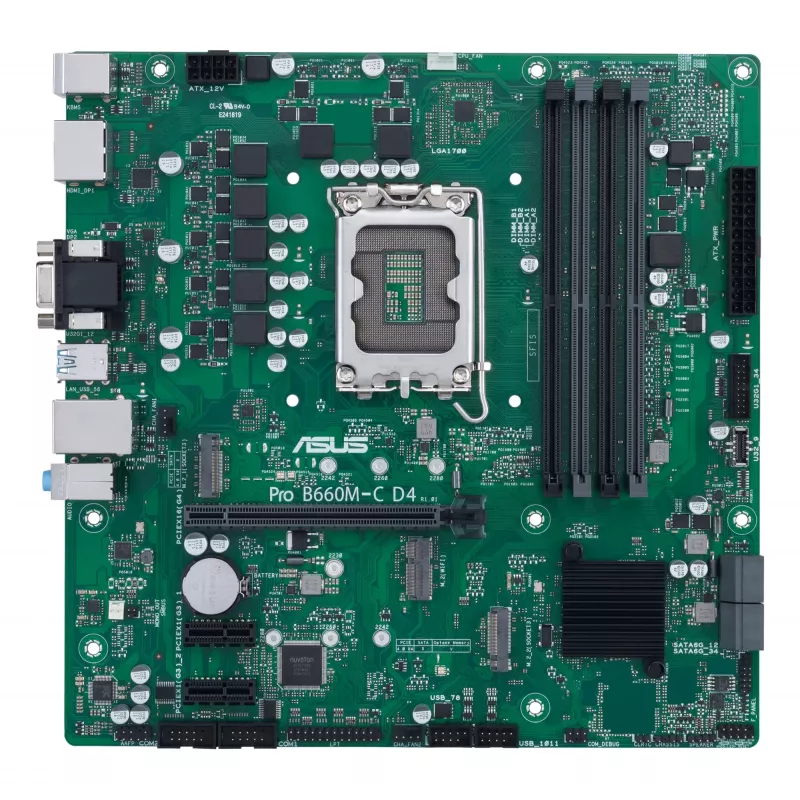

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

ASUS PRO B660M-C D4-CSM Intel B660 LGA 1700 micro ATX

206,23 €

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides wor... Lees meer

Aantal

Niet op voorraad

Op verlanglijst Vergelijk dit product

Voorraad Niet op voorraadGeen voorraad Code 1175625 Merk ASUS Model 90MB19B0-M1EAYC Garantie 2 jaar

CategorieMoederborden

Bezorging & retourneren

ASRock X870 Pro RS WiFi AM5 ATX moederbord

Snel bekijken

ASRock X870 Pro RS WiFi AM5 ATX moederbord

221,01 €

Excl. btw:182,66 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS PRIME B550-PLUS AMD B550 Socket AM4 ATX

Snel bekijken

Moederbord ASUS PRIME B550-PLUS AMD B550 Socket AM4 ATX

116,95 €

Excl. btw:96,65 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord GIGABYTE B760M DS3H DDR4 Micro ATX, Intel LGA 1700, 4x DIMM, 128GB, 2.5Gb LAN, 2x M.2, HDMI+DP

Snel bekijken

Moederbord GIGABYTE B760M DS3H DDR4 Micro ATX, Intel LGA 1700, 4x DIMM, 128GB, 2.5Gb LAN, 2x M.2, HDMI+DP

110,68 €

Excl. btw:91,47 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock B760M-H2/M.2 DDR5 LGA1700 Micro-ATX moederbord

Snel bekijken

ASRock B760M-H2/M.2 DDR5 LGA1700 Micro-ATX moederbord

82,94 €

Excl. btw:68,55 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASRock Z890 Pro-A ATX — Intel Z890-chipset, LGA 1851, DDR5, 4x DIMM, 256 GB, 2.5Gb LAN, PCIe Gen5

Snel bekijken

Moederbord ASRock Z890 Pro-A ATX — Intel Z890-chipset, LGA 1851, DDR5, 4x DIMM, 256 GB, 2.5Gb LAN, PCIe Gen5

182,84 €

Excl. btw:151,11 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASRock B850M Pro-A WiFi micro ATX – AMD B850, socket AM5, DDR5, 4x DIMM, 256 GB, Wi-Fi, 2,5-Gb-LAN

Snel bekijken

Moederbord ASRock B850M Pro-A WiFi micro ATX – AMD B850, socket AM5, DDR5, 4x DIMM, 256 GB, Wi-Fi, 2,5-Gb-LAN

144,87 €

Excl. btw:119,72 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock B860M-X moederbord, Intel B860, LGA 1851, micro ATX, DDR5

Snel bekijken

ASRock B860M-X moederbord, Intel B860, LGA 1851, micro ATX, DDR5

136,27 €

Excl. btw:112,62 €

In winkelwagen Op verlanglijst Vergelijk dit product

GIGABYTE B760M H DDR4 moederbord - ondersteunt Intel Core-processors van de 14e generatie, 6+1+1 fasen Digital VRM, tot 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1

Snel bekijken

GIGABYTE B760M H DDR4 moederbord - ondersteunt Intel Core-processors van de 14e generatie, 6+1+1 fasen Digital VRM, tot 3200MHz DDR4 (OC), 2xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen1

97,86 €

Excl. btw:80,87 €

In winkelwagen Op verlanglijst Vergelijk dit product

MSI PRO B840M-P WIFI6E moederbord AMD B840 socket AM5 micro ATX

Snel bekijken

MSI PRO B840M-P WIFI6E moederbord AMD B840 socket AM5 micro ATX

149,47 €

Excl. btw:123,53 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASRock moederbord A620AM Pro Rs AM5 AMD A620A 4 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX

Snel bekijken

ASRock moederbord A620AM Pro Rs AM5 AMD A620A 4 X DDR5 1 X HDMI 2.1 Tmds/frl 8g Compatible 1 X DisplayPort 1.4 With DSC mATX

91,03 €

Excl. btw:75,23 €

In winkelwagen Op verlanglijst Vergelijk dit product

html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)>*{opacity:1!important;visibility:visible!important;pointer-events:auto!important}html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)::before,html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready)::after{display:none!important}html .tab-container.product_extra.product_tabs.product_tabs-default:not(.dn-product-info-ready){min-height:0!important}

ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.

ASUS Control Center Express
ASUS Control Center Express is a real-time IT monitoring and management tool designed for business that improves productivity and enhances security, helping prevent unauthorized access and data leaks. The intuitive dashboard enables easy, real-time hardware and software management across your organization. Purchase of a Pro motherboard entitles you to a copy of Control Center Express – a US$60

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices
* ASUS Control Center Express is only available for CSM motherboards. Please consult your local sales representative for more information

PCIe 4.0
This business motherboard is specially designed for 12th Gen Intel® Core™ processors and offer PCIe® 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it’s needed.

Enhances system security from bottom to top

ASUS Self-recovering BIOS
ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware.

Trusted Platform Module(TPM)
Hardware-based security offers better data protection, enhances network security, protects digital identities and ensures platform integrity.

Certified NIST SP 800-147
ASUS Business motherboard is certified by the national computer security standards.

ASUS Secure Boot
ASUS business motherboard is set to check the firmware and signature of each piece of boot software.

ASUS Self-recovering BIOS
With ASUS Self-recovering BIOS
The user simply needs to reboot the system and ASUS Self-recovering BIOS will restore the latest BIOS update.

ASUS RELIANT
Ensures consistent performance with the finest components and rigorous reliability testing

Anti-moisture Coating
Protection against moisture and corrosion
An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard.

Anti-sulfur Resistors
Consider long-term reliability of commercial product, ASUS Business motherboard is equipped with anti-sulfur resistors. The resistors provide excellent resistance to sulfuration by constructed in a high grade ceramic body (aluminum oxide). With anti-sulfur resistors, ASUS Business motherboard can be operated under the harsh environments.

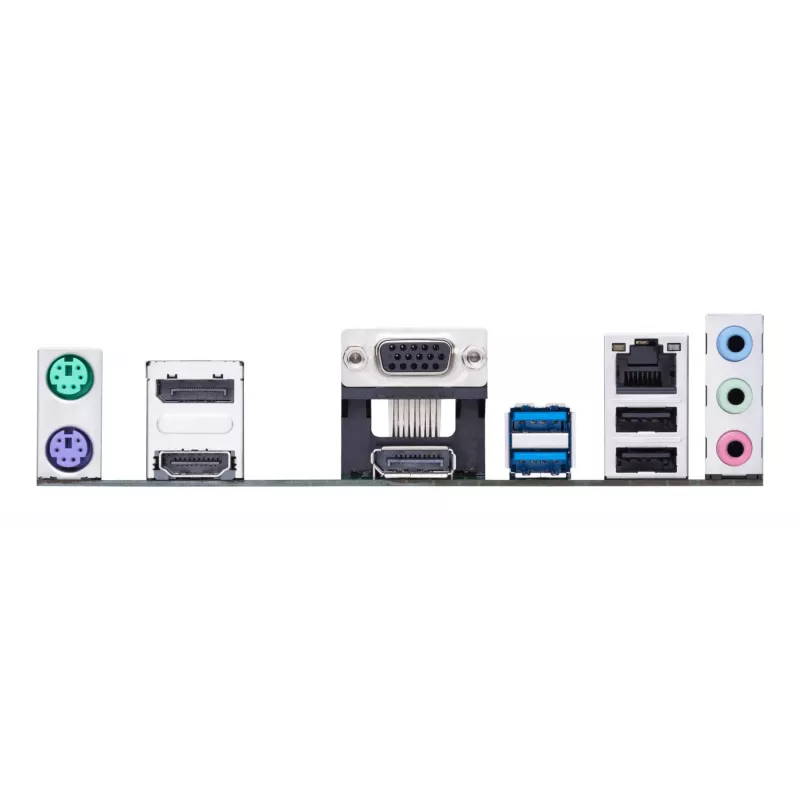

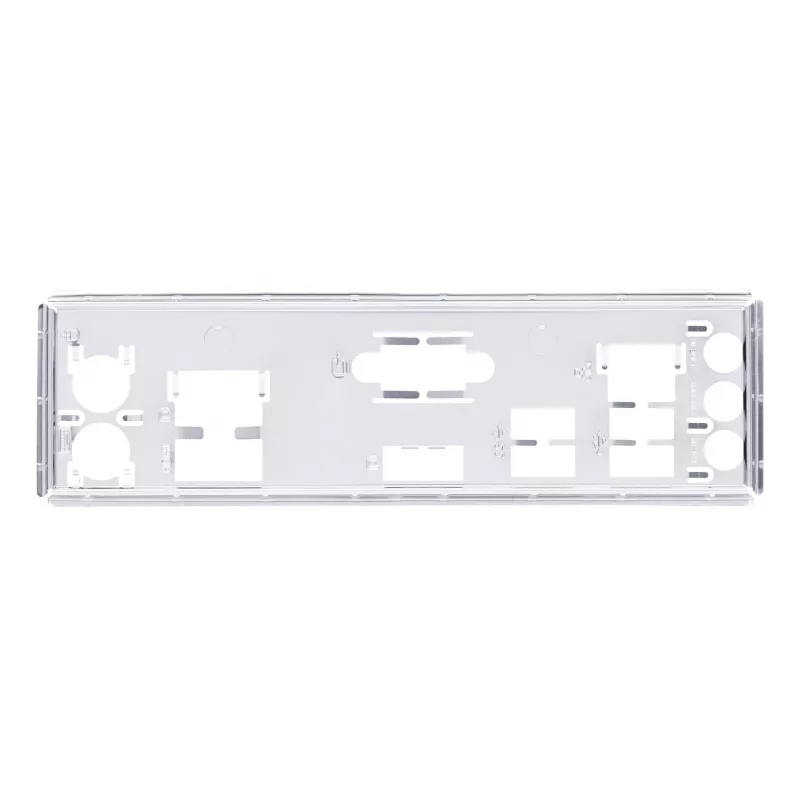

Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.

Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.

ESD Guards
Electrostatic discharge protection
ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/-15kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components.

LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.

24/7 Reliability Test
Optimized for twenty-four seven operations, the motherboard is tested under temperature up to 45°C and relative humidity up to 80% to ensure it can handle diverse temperature and humidity range of different location.+

ASUS MANAGEMENT SUITE
Make IT work more efficiency!

ASUS Commercial BIOS Kit
ASUS understands how important a customized product impacts users' mind share, experience the brand new Commercial BIOS Kit for partial BIOS update solution!

Remote IT Management
The onboard SMBUS header* connects to a DASH LAN card for remote IT management. DASH is a desktop and mobile architecture system hardware that allows the motherboard to be managed via the network.

ASUS SERVICEABILITY
Facilitate the assembly process and enable efficient troubleshooting

Q-LED Core
The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.

ASUS COM Debug Header
This 6-1 pin COM debug header allows for faster and more efficient motherboard troubleshooting. IT administrators can view error and debugging codes to get a better idea of initialization and recovery processes when connecting to a debug card*.
*Third-party debug card sold separately.

Box Headers
All USB headers are box style, enabling fast connector installation and preventing pin damage.

Fixed-position Connectors
Connector positions on ASUS Business motherboards remain consistent across product generations, protecting training, manufacturing and investments in supporting hardware.

Optimize IT endpoint management

Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance

Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints

Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

Belangrijkste kenmerken

Intel® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
Enhanced system security: A self-recovering BIOS and TPM to safeguard PCs
Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Intel LGA 1700 Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold
PC micro ATX Intel B660 Realtek ALC897 7.1 channels
DDR4-SDRAM 4 DIMM Maximum internal memory: 128 GB
HDD & SSD M.2, SATA RAID support
128 Mbit
Gigabit Ethernet Bluetooth 5.2

Specificaties

12V-stroomconnector

Yes

Aantal COM-poorten

1

Aantal connectors behuizingsventilator

2

Aantal DisplayPorts

2

Aantal DVI-D-poorten

0

Aantal geheugenslots

4

Aantal HDMI-poorten

1

Aantal M.2 (M)-slots

2

Aantal ondersteunde beeldschermen

3

Aantal PS/2-poorten

2

Aantal SATA II-poorten

0

Aantal SATA III-connectors

4

Aantal SATA-poorten

0

Aantal USB 2.0-poorten

2

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-A-poorten

2

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-C-poorten

0

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-A-poorten

0

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-C-poorten

0

Aantal VGA (D-Sub)-poorten

1

ATX-voedingsconnector (24-pins)

Yes

Audio-uitvoerkanalen

7.1 channels

Audiochip

Realtek ALC897

Audioconnector voorpaneel

Yes

BIOS-geheugengrootte

128 Mbit

Bluetooth

Yes

Bluetooth-versie

5.2

Breedte

244 mm

Compatibele processorserie

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold

Component voor

PC

CPU-ventilatorconnector

Yes

Diepte

244 mm

DisplayPort-versie

1.4

Drivers inbegrepen

Yes

ECC-compatibiliteit

Non-ECC

EPS-stroomconnector (8-pins)

Yes

Ethernet LAN

Yes

Ethernet LAN (RJ-45)-poorten

1

Geharmoniseerd Systeem (HS)-code

84733020

Geheugenkanalen

Dual-channel

Geïntegreerde videokaart

No

Gewicht

634 g

HDMI-versie

2.1

Hoogste wifi-standaard

Not available

Hoogte

51 mm

Kabels inbegrepen

SATA

Koptelefoonuitgangen

1

Maximaal aantal SMP-processors

1

Maximaal intern geheugen

128 GB

Microfooningang

Yes

Moederbordchipset

Intel B660

Moederbordchipsetfamilie

Intel

Ondersteunde geheugenkloksnelheden

2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4400,4600,4800,5000 MHz

Ondersteunde geheugentypes

DDR4-SDRAM

Ondersteunde interfaces opslagstations

M.2, SATA

Ondersteunde processorsockets

LGA 1700

Ondersteunde typen opslagstations

HDD & SSD

Ondersteunde Windows-besturingssystemen

Windows 10 x64, Windows 11 x64

Ondersteuning voor parallelle verwerkingstechnologie

Not supported

Ongebufferd geheugen

Yes

PCI Express x1 (Gen 3.x)-slots

2

PCI Express x16 (Gen 4.x)-slots

1

PCI-slots

0

Processormerk

Intel

Processorsocket

LGA 1700

Productkleur

Green

RAID-niveaus

0, 1, 5, 10

RAID-ondersteuning

Yes

RGB LED-pinheader

Yes

Type ethernetinterface

Gigabit Ethernet

Type geheugenslots

DIMM

USB 2.0-connectors

2

USB 3.2 Gen 1 (3.1 Gen 1)-connectors

2

USB 3.2 Gen 2 (3.1 Gen 2)-connectors

0

Vormfactor moederbord

micro ATX

Wifi

No

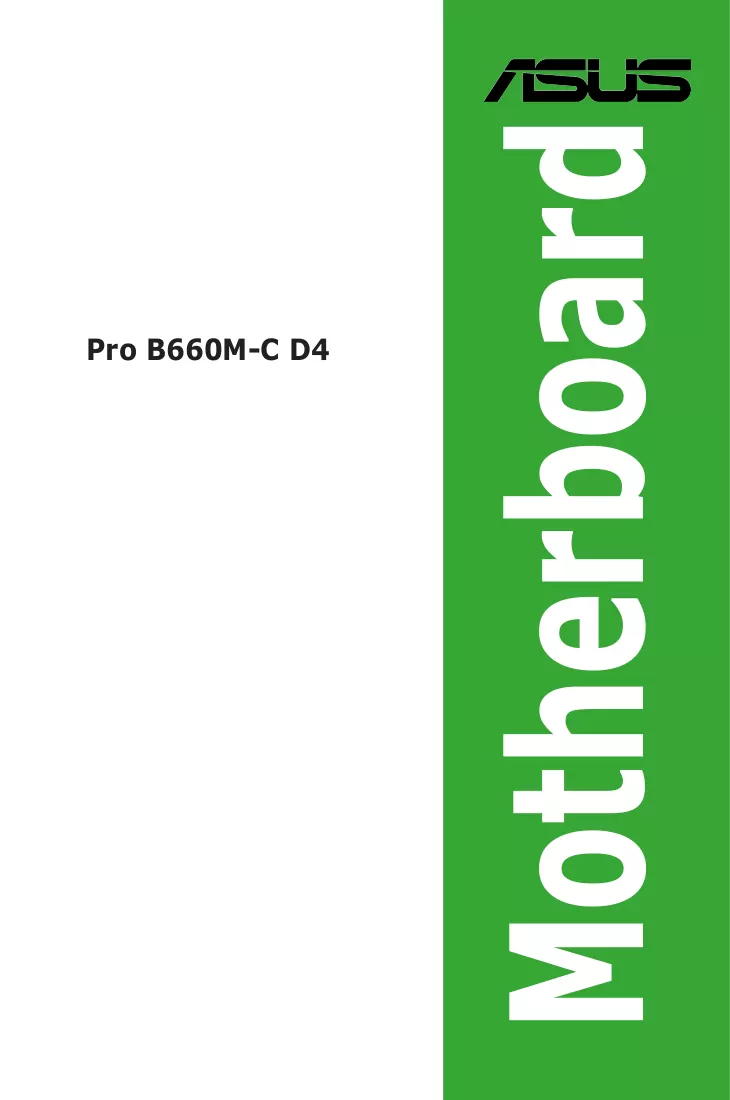

Handleiding

Document openen

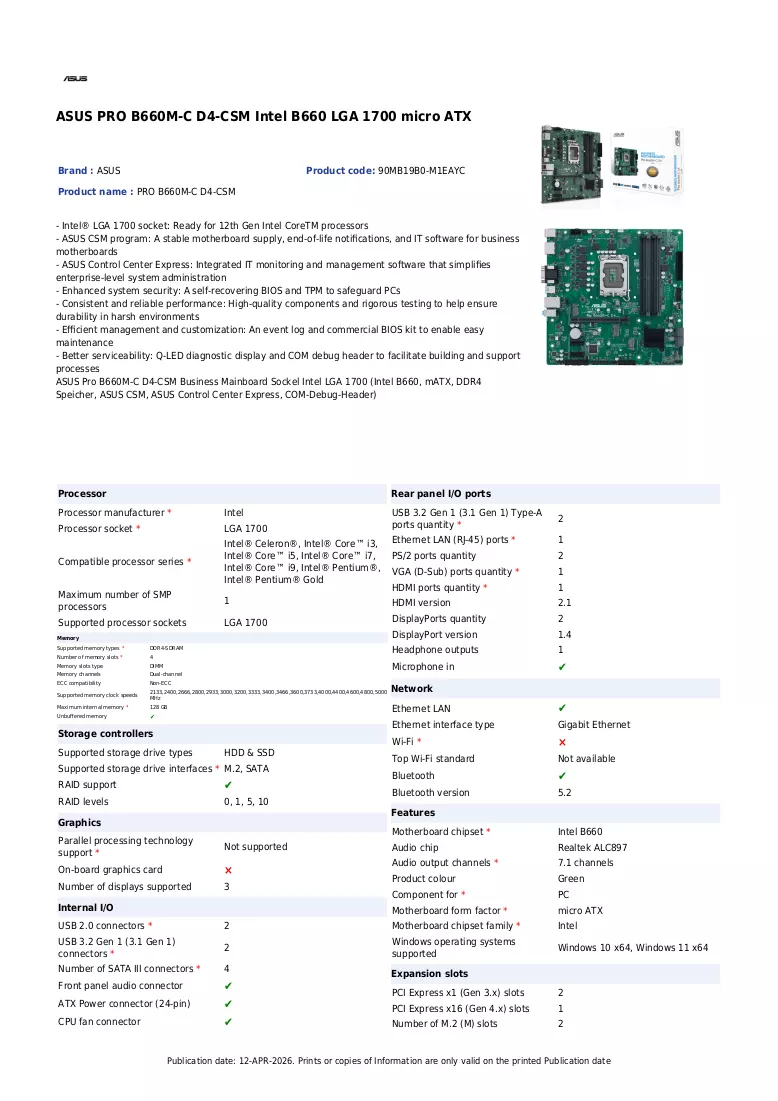

Folder

Document openen

Prijsverloop is nog niet beschikbaar

We zijn nog bezig met het verzamelen van voldoende dagelijkse prijsgegevens voor dit product.

Reviews van experts

Onafhankelijke reviews van techmedia

servethehome.comPatrick2022-04-05

9/10

Eindoordeel: It has been a long time since we reviewed an ASUS CSM motherboard. We looked and although we have done many, the last was the ASUS B85M-E/CSM Motherboard Review in 2013. The line has certainly changed diverging more from the consumer platforms than it had...

Lees de volledige review op servethehome.com →
