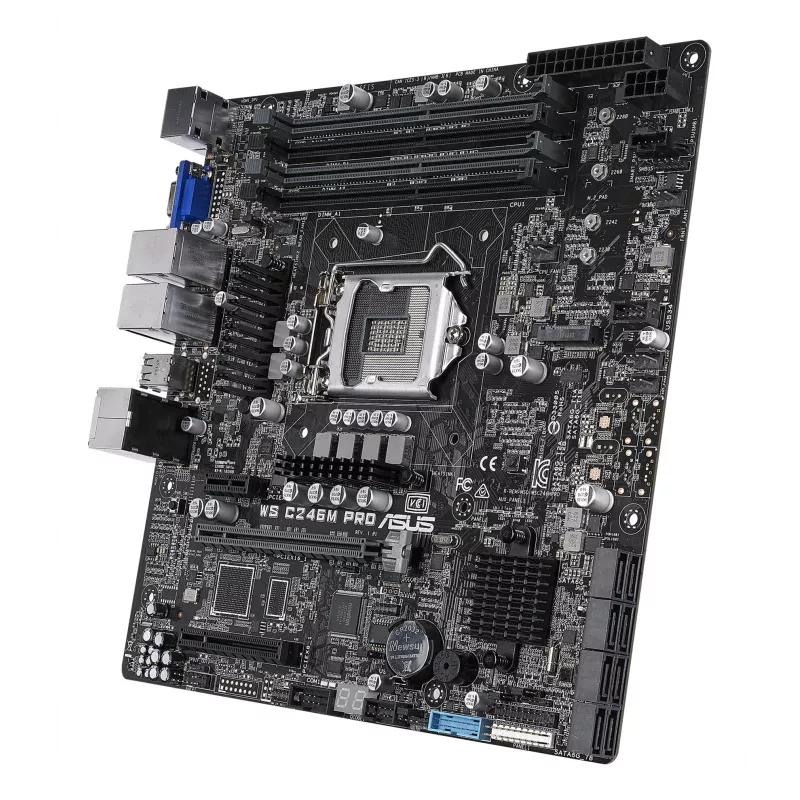

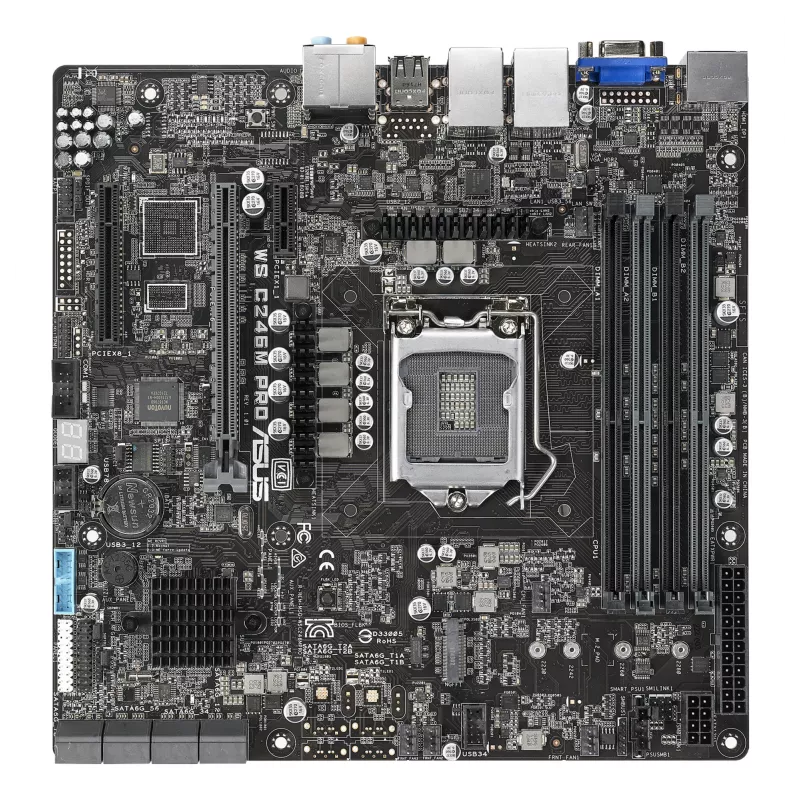

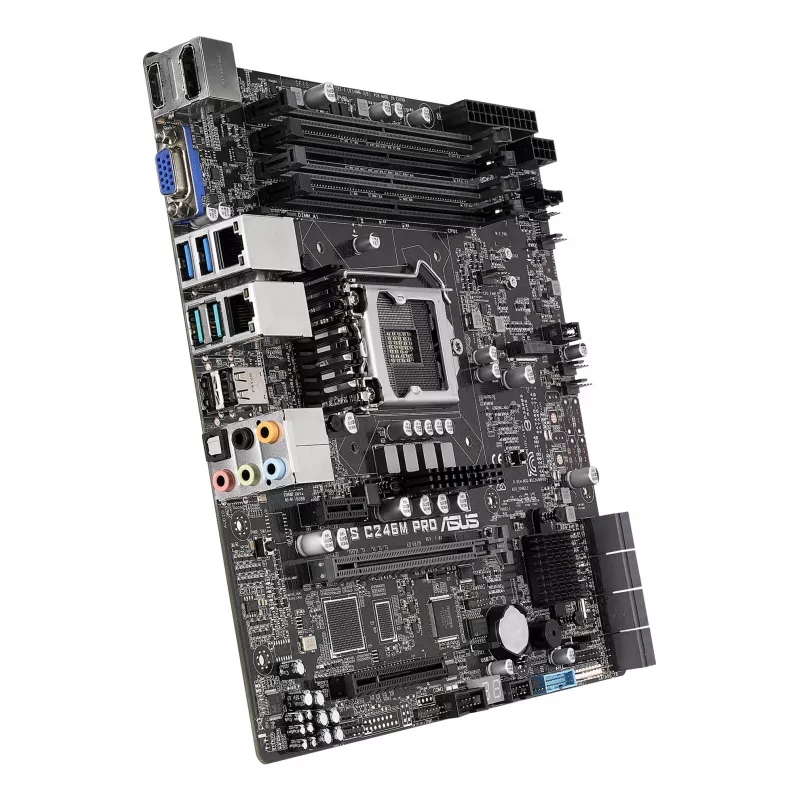

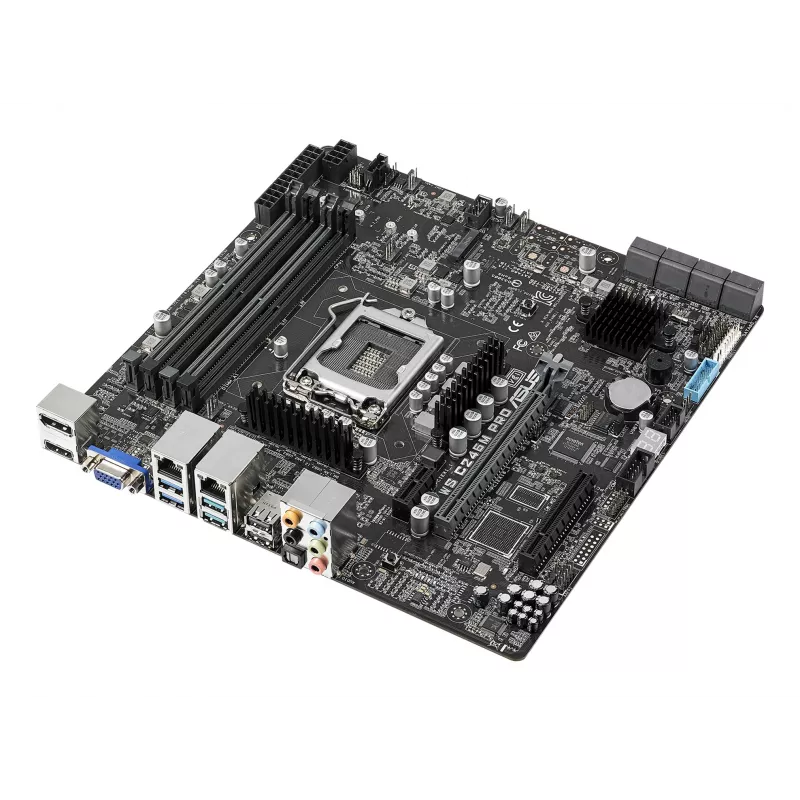

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

36 mnd.

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

ASUS WS C246M PRO Intel C246 LGA 1151 (Socket H4) micro ATX

0 reviews • Review schrijven

324,12 €

Rack-optimized design for better cooling efficiencyWS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the deman... Lees meer

Aantal

Niet op voorraad

Op verlanglijst Vergelijk dit product

Voorraad Niet op voorraadGeen voorraad Code 2359500 Merk ASUS Model 90SW00E0-M0EAY0 Garantie 3 jaar

Bezorging & retourneren

Supermicro – moederbord X13SWA-TF – E-ATX – LGA4677 Socket-E – W790 chipset USB 3.2 Gen 1 USB-C 3.2 Gen 2x2 USB 3.1 Gen 2 USB 3.2 Gen 2x2 10 Gigabit LAN Gigabit LAN onboard grafisch

Snel bekijken

Supermicro – moederbord X13SWA-TF – E-ATX – LGA4677 Socket-E – W790 chipset USB 3.2 Gen 1 USB-C 3.2 Gen 2x2 USB 3.1 Gen 2 USB 3.2 Gen 2x2 10 Gigabit LAN Gigabit LAN onboard grafisch

1.109,48 €

Excl. btw:916,93 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS PRO WS WRX90E-SAGE SE, AMD WRX90-chipset, socket sTR5, EEB, 8x DDR5 DIMM, 7x PCIe x16 GEN5, 4x M.2, 2x USB4 GEN3X2

Snel bekijken

Moederbord ASUS PRO WS WRX90E-SAGE SE, AMD WRX90-chipset, socket sTR5, EEB, 8x DDR5 DIMM, 7x PCIe x16 GEN5, 4x M.2, 2x USB4 GEN3X2

1.313,93 €

Excl. btw:1.085,89 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS PRO WS W890-SAGE — Intel W890, LGA 4710-2, CEB, 8× DIMM, DDR5, quad-channel, 2.5G & 10G Ethernet

Snel bekijken

Moederbord ASUS PRO WS W890-SAGE — Intel W890, LGA 4710-2, CEB, 8× DIMM, DDR5, quad-channel, 2.5G & 10G Ethernet

934,88 €

Excl. btw:772,63 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX

Snel bekijken

Moederbord ASUS PRO WS W680-ACE IPMI Intel W680 LGA 1700 ATX

577,27 €

Excl. btw:477,08 €

In winkelwagen Op verlanglijst Vergelijk dit product

Moederbord ASUS Pro WS W890E-SAGE SE — Intel W890, LGA 4710-2, EEB, 8x DIMM DDR5, octa-channel, 10GbE

Snel bekijken

Moederbord ASUS Pro WS W890E-SAGE SE — Intel W890, LGA 4710-2, EEB, 8x DIMM DDR5, octa-channel, 10GbE

1.313,56 €

Excl. btw:1.085,59 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS PRO WS W680-ACE moederbord, Intel W680, LGA 1700, ATX, DDR5 ECC tot 128 GB, M.2 NVMe, RAID 0/1/5/10, 2x 2,5 Gigabit LAN, USB-C 3.2 Gen 2x2

Snel bekijken

ASUS PRO WS W680-ACE moederbord, Intel W680, LGA 1700, ATX, DDR5 ECC tot 128 GB, M.2 NVMe, RAID 0/1/5/10, 2x 2,5 Gigabit LAN, USB-C 3.2 Gen 2x2

504,54 €

Excl. btw:416,98 €

In winkelwagen Op verlanglijst Vergelijk dit product

Supermicro MBD-H13SRA-TF moederbord, AMD TRX50, socket sTR5, Ryzen Threadripper 7000-serie

Snel bekijken

Supermicro MBD-H13SRA-TF moederbord, AMD TRX50, socket sTR5, Ryzen Threadripper 7000-serie

869,77 €

Excl. btw:718,82 €

In winkelwagen Op verlanglijst Vergelijk dit product

Supermicro H13SRA-F MBD-H13SRA-F-O workstation-moederbord, ATX, Socket sTR5, AMD, DDR5 tot 4 TB, M.2, SATA III, Gigabit Ethernet, retail

Snel bekijken

Supermicro H13SRA-F MBD-H13SRA-F-O workstation-moederbord, ATX, Socket sTR5, AMD, DDR5 tot 4 TB, M.2, SATA III, Gigabit Ethernet, retail

760,38 €

Excl. btw:628,42 €

In winkelwagen Op verlanglijst Vergelijk dit product

Supermicro Moederbord X13SAQ (Retail Pack) LGA1700 DDR5 ATX

Snel bekijken

Supermicro Moederbord X13SAQ (Retail Pack) LGA1700 DDR5 ATX

453,76 €

Excl. btw:375,01 €

In winkelwagen Op verlanglijst Vergelijk dit product

ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB

Snel bekijken

ASUS Pro WS TRX50-SAGE WIFI AMD TRX50 Socket sTR5 SSI CEB

865,88 €

Excl. btw:715,60 €

In winkelwagen Op verlanglijst Vergelijk dit product

Rack-optimized design for better cooling efficiency
WS C246M PRO is the perfect workstation motherboard for media server, cloud gaming and video streaming applications. Its rack-optimized layout maximizes cooling efficiency for the best performance and stability, ensuring it's ready to meet the demands of enterprise or academia use.

Powerful performance with Intel® Xeon® E processor and ECC memory
WS C246M PRO supports Intel® Xeon® E series processors to deliver powerful, optimized performance in always-on usage scenarios. Support for Error-Correcting Code (ECC) memory enables automatic detection and repair of single-bit memory errors, reducing the chance of system crashes and data corruption to ensure reliable and responsive workstation performance.

Supports up to three independent displays simultaneously
WS C246M PRO is equipped for total display flexibility with onboard HDMI, DisplayPort and VGA connectivity. With a compatible latest-generation Intel® processor, you can connect up to three independent displays simultaneously for better multitasking and enhanced productivity.

Accelerated data-transfer speeds of up to 32Gbps with M.2
With PCIe 3.0 x4 bandwidth, one M.2 supports up to 32Gbps data-transfer speeds with native NVMe — that's up to 5.3X faster than traditional SSDs. WS C246M PRO also supports the very latest 2.5-inch NVMe SSDs for quick and easy setup.

Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
WS C246M PRO has two onboard USB 3.1 Gen2 connectors that provide data-transfer speeds of up to 10Gbps, twice as fast USB3.1 Gen1.

SafeSlot
ASUS SafeSlot is the PCIe slot reinvented by ASUS and engineered to provide superior retention and shearing resistance, which protect your graphics card investment. Manufactured in a single step using a new injection-molding process integrates the slot with the fortifying metal for an inherently stronger slot, which is then firmly anchored to the PCB through additional solder points.

ASUS Control Center
WS C246M PRO features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.

ASUS WS C246M PRO. Processor manufacturer: Intel, Processor socket: LGA 1151 (Socket H4), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: SATA III. LAN controller: Intel® I210-AT, Intel I219LM. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel

Belangrijkste kenmerken

Rack-optimized design for better cooling efficiency and stability
Supports up to three independent displays simultaneously via HDMI, DisplayPort and VGA
Accelerated data-transfer speeds of up to 32Gbps with M.2
Onboard USB 3.1 for fast transfer speeds of up to 10Gbps
Dual Intel® Gigabit LAN with teaming support
ASUS Control Center — A software utility that provides convenient, secure and cost-saving centralized IT management for small and medium businesses
Intel LGA 1151 (Socket H4) Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®
PC micro ATX Intel C246 8.0 channels
DDR4-SDRAM 4 DIMM Maximum internal memory: 64 GB
SATA III

Specificaties

Aantal COM-poorten

1

Aantal DVI-D-poorten

1

Aantal geheugenslots

4

Aantal HDMI-poorten

1

Aantal USB 2.0-poorten

2

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-A-poorten

2

Aantal USB 3.2 Gen 1 (3.1 Gen 1) Type-C-poorten

0

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-A-poorten

2

Aantal USB 3.2 Gen 2 (3.1 Gen 2) Type-C-poorten

0

Aantal VGA (D-Sub)-poorten

1

ATX-voedingsconnector (24-pins)

Yes

Audio-uitvoerkanalen

8.0 channels

Beknopte installatiehandleiding

Yes

Breedte

244 mm

Breedte verpakking

367 mm

Compatibele processorserie

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium®, Intel® Xeon®

Component voor

PC

Diepte

244 mm

Diepte verpakking

353 mm

Ethernet LAN

Yes

Ethernet LAN (RJ-45)-poorten

2

Geharmoniseerd Systeem (HS)-code

84733020

Geheugenkanalen

Dual-channel

Handleiding

Yes

Hoogte verpakking

300 mm

Kabels inbegrepen

SATA

Koptelefoonuitgangen

1

LAN-controller

Intel® I210-AT, Intel I219LM

Maximaal intern geheugen

64 GB

Maximaal UDIMM-geheugen

64 GB

Microfooningang

Yes

Moederbordchipset

Intel C246

Moederbordchipsetfamilie

Intel

Ondersteunde geheugenkloksnelheden

2133,2400,2666 MHz

Ondersteunde geheugentypes

DDR4-SDRAM

Ondersteunde interfaces opslagstations

SATA III

Ondersteunde processorsockets

LGA 1151 (Socket H4)

PCI Express x1 (Gen 2.x)-slots

1

PCI Express x16 (Gen 3.x)-slots

1

PCI Express x4 (Gen 3.x)-slots

1

Processormerk

Intel

Processorsocket

LGA 1151 (Socket H4)

TPM-connector

Yes

Type geheugenslots

DIMM

USB 2.0-connectors

2

USB 3.2 Gen 1 (3.1 Gen 1)-connectors

1

USB 3.2 Gen 2 (3.1 Gen 2)-connectors

0

Vormfactor moederbord

micro ATX

Wifi

No

Handleiding

Document openen

Folder

Document openen

Prijsverloop is nog niet beschikbaar

We zijn nog bezig met het verzamelen van voldoende dagelijkse prijsgegevens voor dit product.

Onafhankelijke reviews van techmedia

servethehome.comWilliam2019-04-02

9/10

Eindoordeel: We want to set up and review our ASUS WS C246M Pro motherboard as an entry level deep learning platform using an NVIDIA GeForce RTX 2060 GPU. While GPUs like the NVIDIA Titan RTX and the ASUS WS C621E SAGE Motherboard with dual Intel Xeon Gold processors...

Lees de volledige review op servethehome.com →
