AV-aansluitdoos Lindy Single 60541

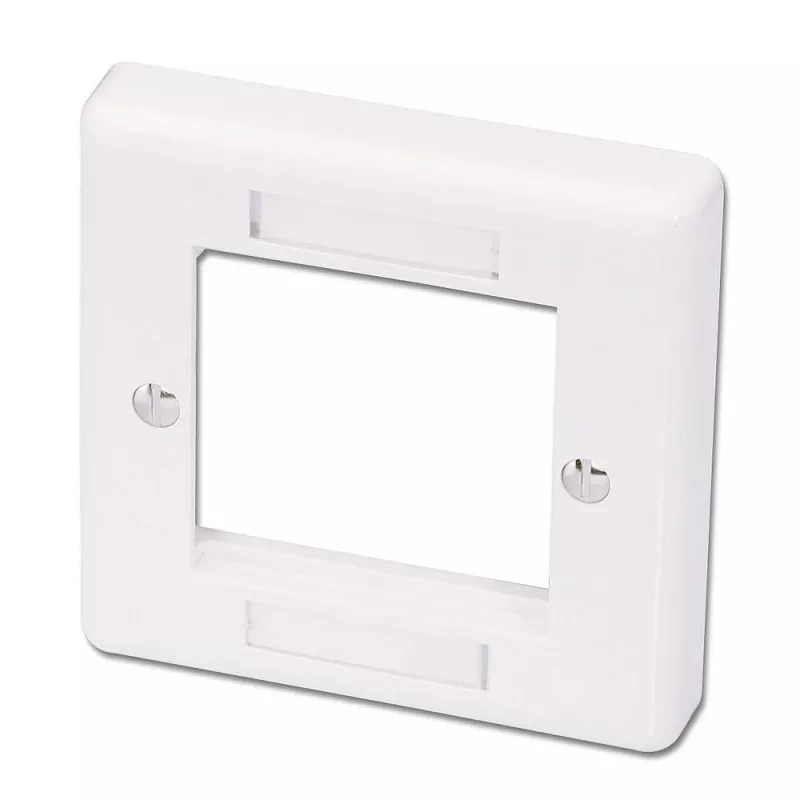

The Lindy Single AV Face Plate (model 60541) is a single-gang face plate designed for use with Lindy's Modular AV Extender Wall Plate System or AV Face Plate System. It measures 86 x 86 mm, is supplied with fixing screws and labels, and is finished in white. The plate can be surface- or flush-mounted and requires a minimum back box depth of 44 mm. It accepts up to two snap-in modules from the Lindy modular range and includes a two year warranty.

Advantages

This face plate provides a neat, professional finish for AV installations and supports both surface and flush mounting to suit different installation environments. It accommodates two modular AV inserts, allowing flexible combinations of connectors such as VGA, RCA/Phono and S-Video. A blanking plate can be used if only one module is installed, ensuring a tidy appearance. The product is supplied with fixing screws and labels and is compatible with standard single surface pattress back boxes.

Suitable for

• Extending audio and video signals over Cat5e/6 with Lindy AV extender modules
• Home theatre and multimedia room wall installations
• Office meeting rooms and presentation areas
• Retrofit or new-build installations requiring a single-gang AV face plate

Key specifications

• Manufacturer: Lindy
• Model / MPN: 60541
• EAN: 4002888605410
• Dimensions: 86 x 86 mm
• Colour: White
• Mounting: Surface or flush mount
• Back box minimum depth: 44 mm
• Module capacity: Up to 2 modular snap-in AV modules
• Warranty: 2 years

How to use

Install the face plate onto a compatible single-gang back box (minimum depth 44 mm) using the supplied fixing screws. Snap in up to two Lindy modular AV inserts according to the required connector types (for example VGA, RCA/Phono or S-Video). If only one module is used, fit the supplied blanking plate for a neat finish. Route the Cat5e/6 or other signal cabling through the back box and make the necessary terminations to the modules following the module instructions.

Recommendations

Use in conjunction with Lindy Single Surface Pattress Box and Lindy modular extender modules for a complete AV extender solution. Ensure the back box depth is at least 44 mm and follow good cabling practices (shielding, separation from power cables, and correct termination) for reliable signal transmission.
