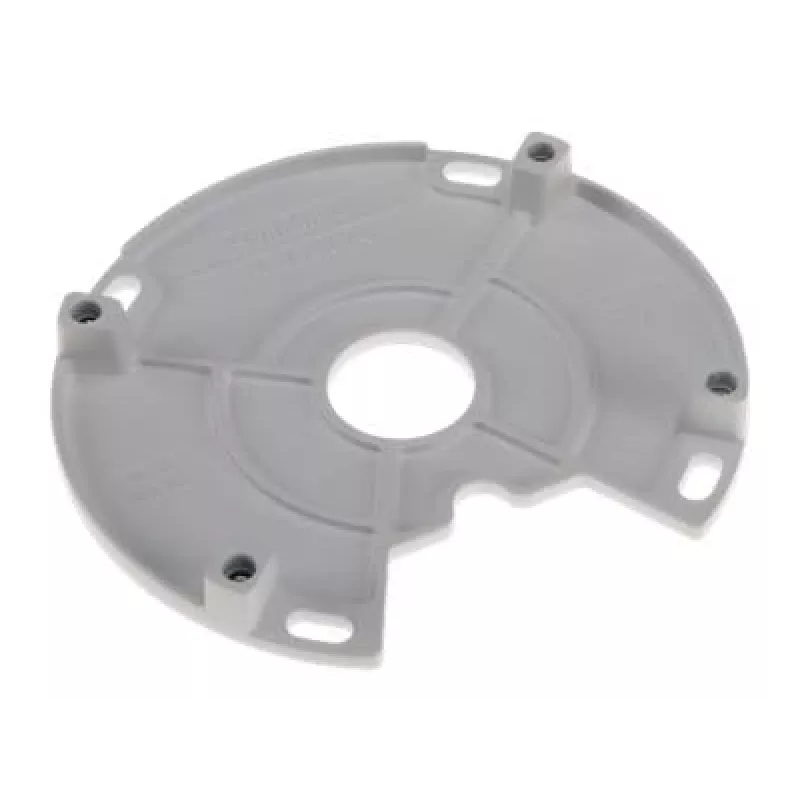

AXIS T94F01S montagebeugel voor camera-bevestiging

The AXIS T94F01S Mounting Bracket is a robust and versatile wall mount designed for secure installation of Axis cameras in demanding environments. Crafted from high-quality aluminum with a white finish, this bracket offers excellent corrosion resistance and vandal resistance (IK10). It features integrated cable management and supports outdoor use with an IP66 rating. Compatible with a wide range of Axis camera series, including P32, P33, P37, Q35, and Q36, it can also be used with optional adapters for pole or corner mounting. The bracket has a maximum load capacity of 15 kg (33 lb) and operates in temperatures from -50 °C to 60 °C.

Advantages

Durable aluminum construction ensures long-lasting performance in harsh conditions. Integrated cable management keeps installations neat and secure. Vandal-resistant design (IK10) provides added security. Versatile mounting options with optional adapters for poles and corners. Easy installation with included accessories.

Suitable for

• Axis P32, P33, P37, Q35, Q36 series cameras
• Outdoor surveillance installations requiring weatherproof mounting
• High-security areas needing vandal-resistant hardware
• Wall, pole, or corner mounting configurations

Key specifications

• Product Type: Wall Mount
• Material: Aluminum
• Colour: White
• Outdoor Use: Yes
• IP Rating: IP66
• IK Rating: IK10
• Maximum Load Capacity: 15 kg (33 lb)
• Operating Temperature: -50 °C to 60 °C (-58 °F to 140 °F)
• Storage Temperature: -40 °C to 65 °C (-40 °F to 149 °F)
• Dimensions (HxWxD): 210 x 150 x 250 mm
• Conduit Compatibility: M20 (3/4" NPT)
• Included Accessories: Installation guide, cable glands, mounting screws

Recommendations

For optimal performance, use with Axis cameras from the compatible series. Ensure proper installation following the included guide. For pole or corner mounting, purchase the optional adapter separately.
