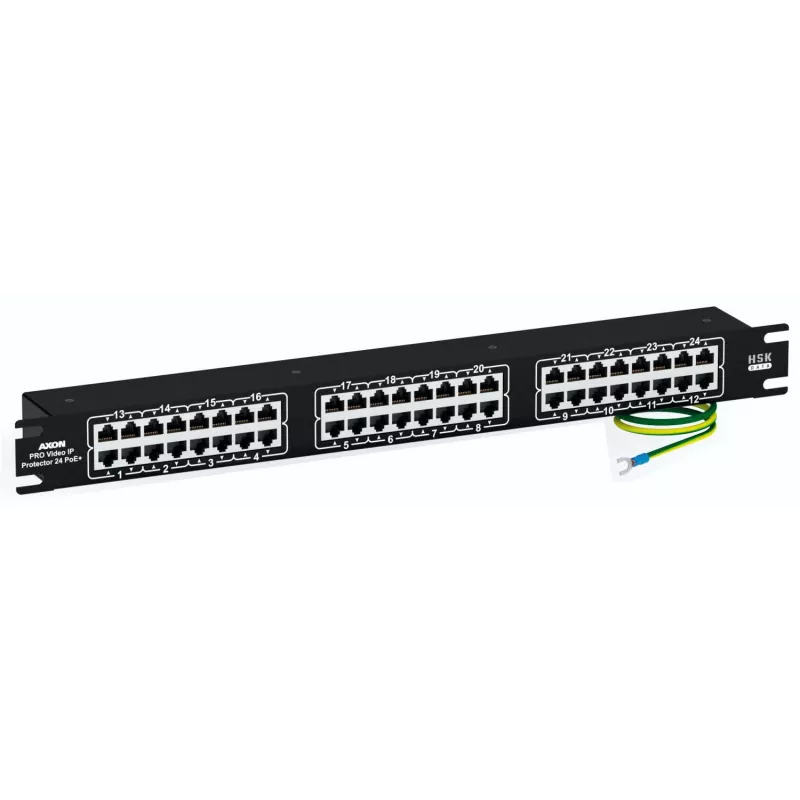

AXON PRO Video IP Protector 24 PoE+ Overspanningsbeveiliging

The AXON PRO Video IP Protector 24 PoE+ is a high-performance surge protection device designed for professional network installations. It provides comprehensive overvoltage protection for 24 PoE+ channels, safeguarding sensitive IP cameras, access points, and other network equipment against power surges and lightning strikes. With support for Gigabit Ethernet and PoE++ standards, this 1U rack-mountable unit ensures reliable data transmission and power delivery while protecting your infrastructure.

Advantages

This surge protector offers robust protection with a max discharge current of 10 kA per line and low voltage protection levels, ensuring minimal impact on signal quality. Its metal housing and wide operating temperature range make it suitable for demanding environments. Easy grounding via screw terminal simplifies installation.

Suitable for

• IP surveillance systems with multiple PoE cameras
• Network switches and access points in enterprise networks
• Industrial automation and control systems
• Any 19-inch rack requiring centralized surge protection for PoE lines

Key specifications

• Number of Protected Channels: 24
• Network Standard: 10/100/1000Base-T (Gigabit Ethernet)
• PoE Standard Support: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Protection Type: Overvoltage (Surge) protection for data and power lines
• Mounting Type: 19-inch Rack Mount (1U)
• Connectors: 24x RJ-45 Input, 24x RJ-45 Output
• Nominal Discharge Current (In): 1 kA (8/20 µs) per line
• Max Discharge Current (Imax): 10 kA (8/20 µs) per line
• Voltage Protection Level (Up) - Data: < 10 V (line-line), < 60 V (line-ground)
• Voltage Protection Level (Up) - PoE: < 60 V (line-line), < 60 V (line-ground)
• Max Continuous Operating Voltage (Uc) - Data: 5 V DC
• Max Continuous Operating Voltage (Uc) - PoE: 60 V DC
• Grounding Connection: Screw terminal, min. 2.5 mm² wire
• Housing Material: Metal (Steel)
• Operating Temperature: -25°C to +55°C
• Insertion Loss: < 0.5 dB (100 MHz)
• Bandwidth: Up to 250 MHz

Recommendations

For optimal protection, ensure proper grounding with a wire of at least 2.5 mm². This device is ideal for central surge protection in network racks. Pair with AXON PRO series switches for a complete solution.
