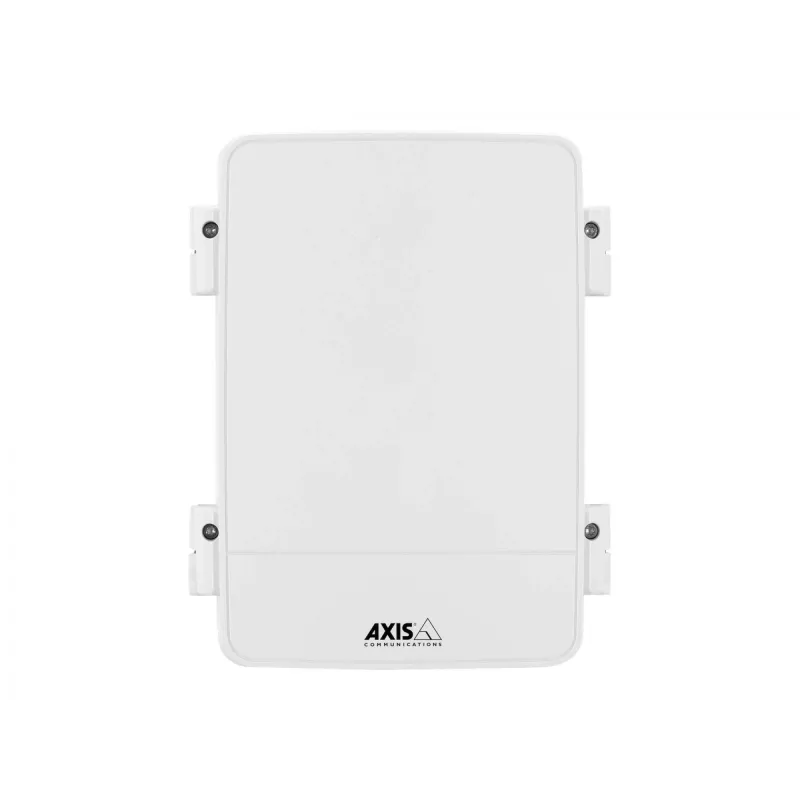

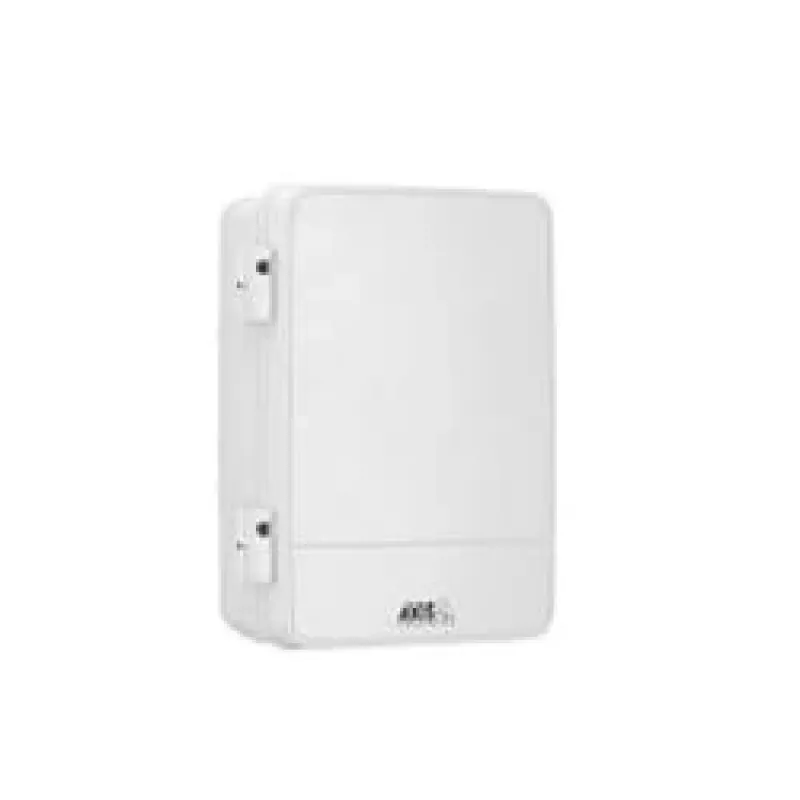

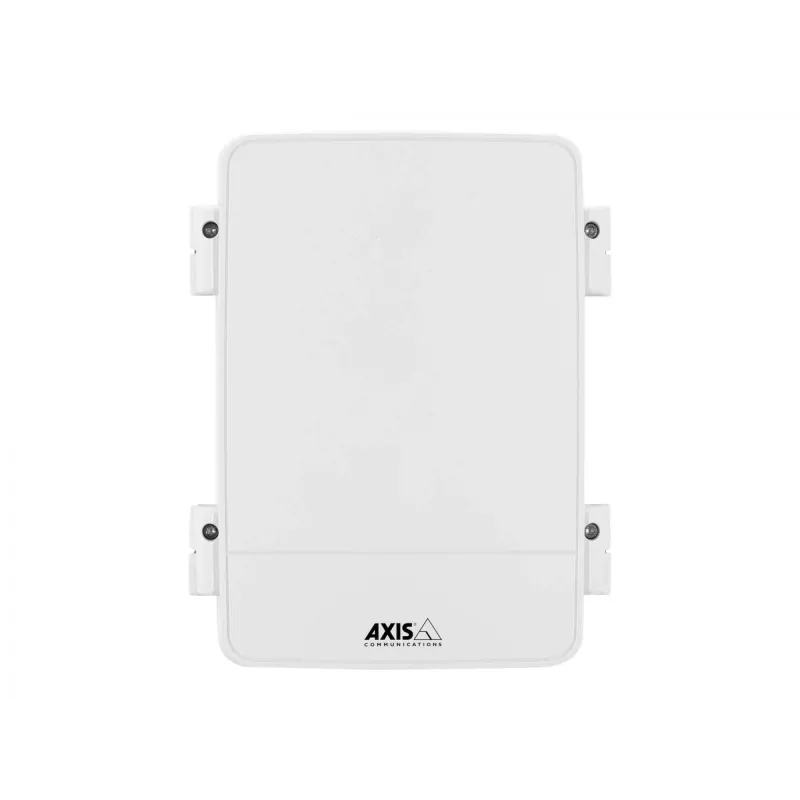

Behuizing Axis 5505-401

The AXIS 5505-401 housing is a standalone, universal cabinet for security cameras that supports 12 V DC–powered cameras. The unit is delivered pre-mounted with an AXIS T8604 Media Converter Switch, an AXIS Electrical Safety kit and a 25 W DIN power supply (CP‑D 12/2.1). This housing is not suitable for mounting a camera on the cabinet door; for cabinets that allow door-mounted cameras, see other AXIS models. The white, wired housing protects installed cameras from environmental exposure and is intended for fixed installations both indoors and outdoors.

Advantages

The housing comes ready for installation with pre-mounted media converter, safety kit and power supply, reducing on-site assembly. It supports standard 12 V DC cameras and provides a durable enclosure that helps protect camera electronics from weather and contaminants. The preconfigured power and network components simplify connection and maintenance.

Suitable for

• AXIS Q1765-LE Fixed Camera
• AXIS Q3505-VE Fixed Dome Camera
• AXIS P5414-E and AXIS P5415-E PTZ Dome Cameras
• AXIS Q1931-E and AXIS Q1932-E Thermal Cameras
• AXIS T93F10 Outdoor Housing (as compatible outdoor enclosure)

Key specifications

• Model: AXIS 5505-401
• Pre-mounted components: AXIS T8604 Media Converter Switch, AXIS Electrical Safety kit, CP‑D 12/2.1 25 W DIN power supply
• Power support: cameras requiring 12 V DC
• Mounting: standalone cabinet (camera cannot be door-mounted)
• Color and connectivity: white, wired
• Brand: AXIS; MPN: 5505-401; EAN: 7331021043459

How to use

Install the housing at the chosen fixed location and secure it according to local mounting requirements. Connect the camera to the internal 12 V DC power output and network through the pre-mounted AXIS T8604 Media Converter Switch. Ensure electrical connections comply with the supplied AXIS Electrical Safety kit instructions. Verify that the selected camera model is one of the supported 12 V DC cameras and that the camera is not mounted on the cabinet door.

Recommendations

Use this housing with compatible AXIS cameras that require 12 V DC power and follow AXIS installation and safety guidelines. For door-mounted camera installations or cameras requiring other power types, select a different AXIS cabinet model.
