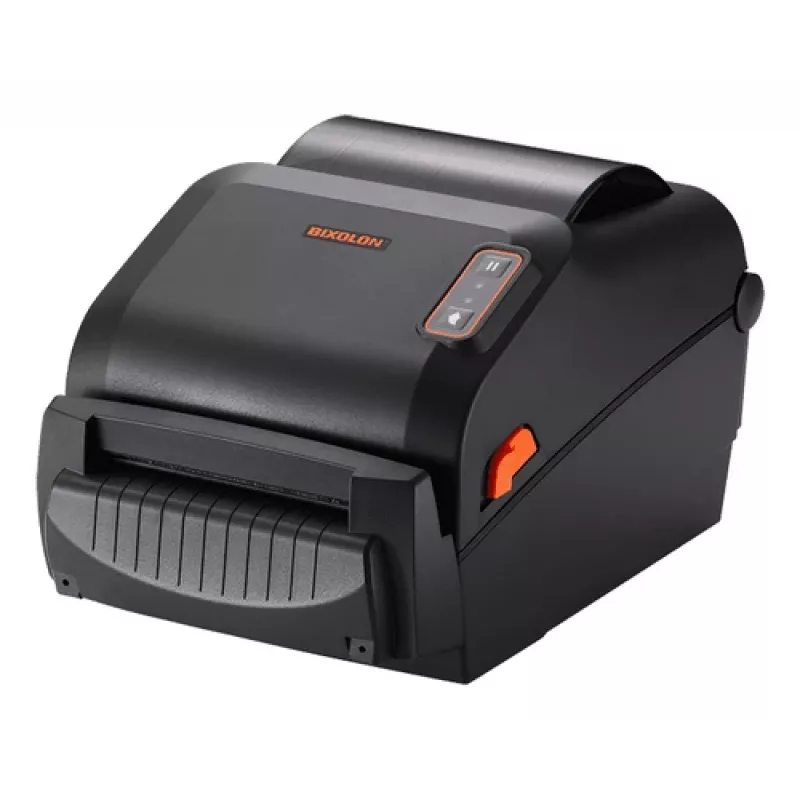

BIXOLON XD5-43D direct thermal labelprinter, 300 dpi, 127 mm/s, USB/serieel/Ethernet/WLAN

The BIXOLON XD5-43D is a high-performance direct thermal label printer designed for industrial and commercial labeling applications. With a print resolution of 300 dpi and speeds up to 127 mm/s, it delivers crisp, durable labels for a wide range of uses. Its robust connectivity options, including USB 2.0, Serial, Ethernet, and optional WLAN, ensure seamless integration into existing networks.

Advantages

Exceptional print quality at 300 dpi ensures clear barcodes and text. Fast print speed of 127 mm/s boosts productivity. Versatile connectivity with USB, Serial, Ethernet, and optional WLAN/Bluetooth. Supports multiple media types including roll, fanfold, die-cut, and continuous labels. User-friendly design with easy media loading and maintenance.

Suitable for

• Retail and point-of-sale labeling
• Logistics and shipping labels
• Healthcare and pharmaceutical labeling
• Manufacturing and industrial asset tagging
• Warehouse and inventory management

Key specifications

• Print Technology: Direct Thermal
• Resolution: 300 dpi
• Max Print Speed: 127 mm/s (5 ips)
• Max Print Width: 108 mm (4.25 inches)
• Max Print Length: 1000 mm (39.4 inches)
• Memory: 128 MB SDRAM, 128 MB Flash
• Connectivity: USB 2.0, Serial RS-232C, Ethernet 10/100 Mbps, optional WLAN 802.11a/b/g/n, Bluetooth V5.0
• Media Width: 20 - 118 mm
• Max Media Roll Diameter: 127 mm
• Media Core Diameter: 12.5 - 38.1 mm
• Emulations: SLCS, BPL-Z (ZPL-II compatible), BPL-E (EPL-II compatible)
• Power Supply: External adapter, AC 100-240V, 50/60Hz

Recommendations

For optimal performance, use high-quality direct thermal labels. The XD5-43D is ideal for businesses requiring reliable, high-resolution label printing with flexible connectivity options.
