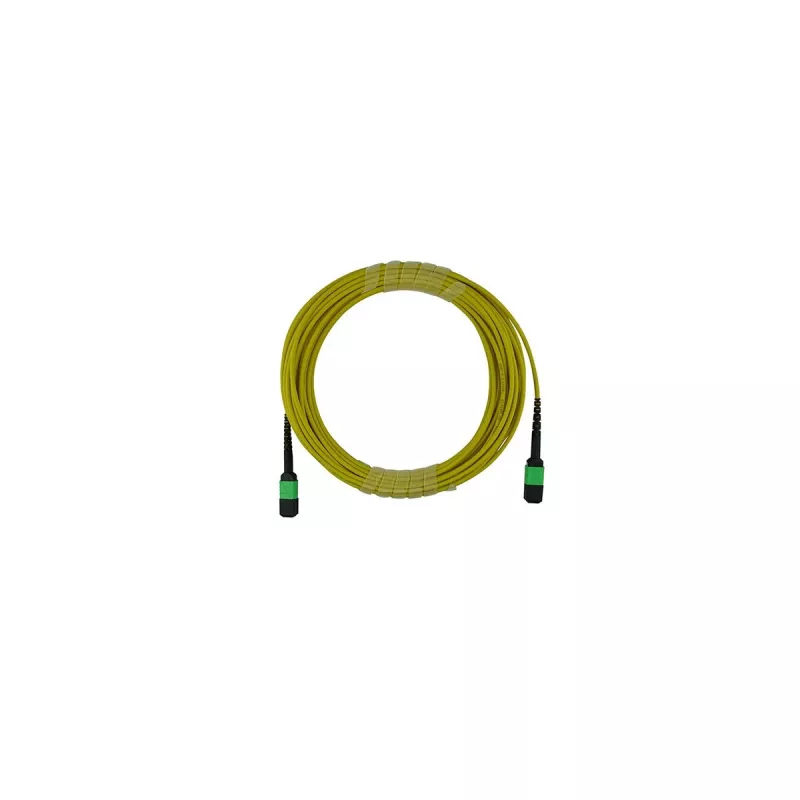

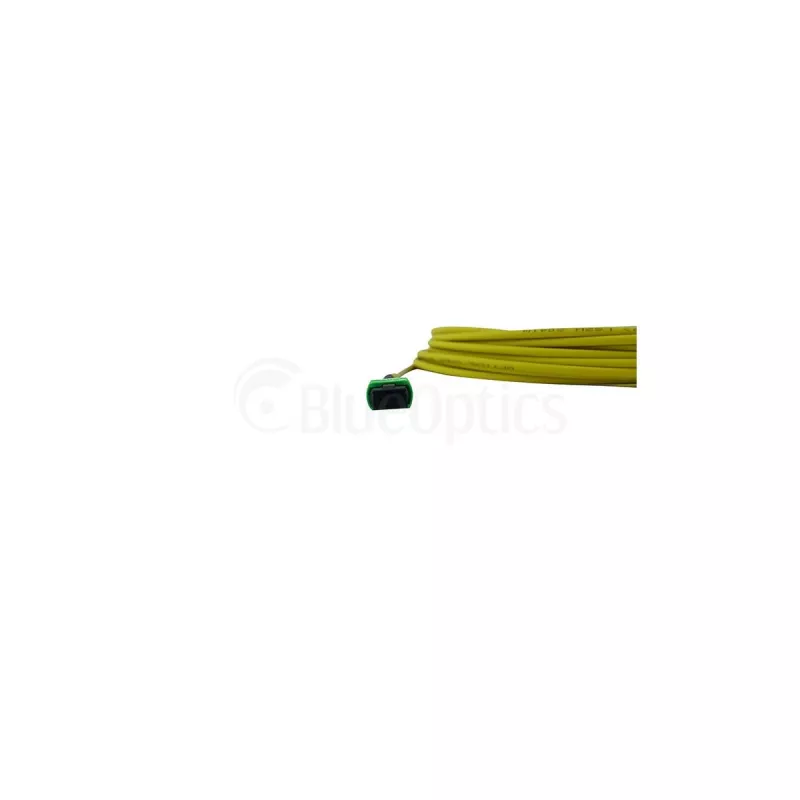

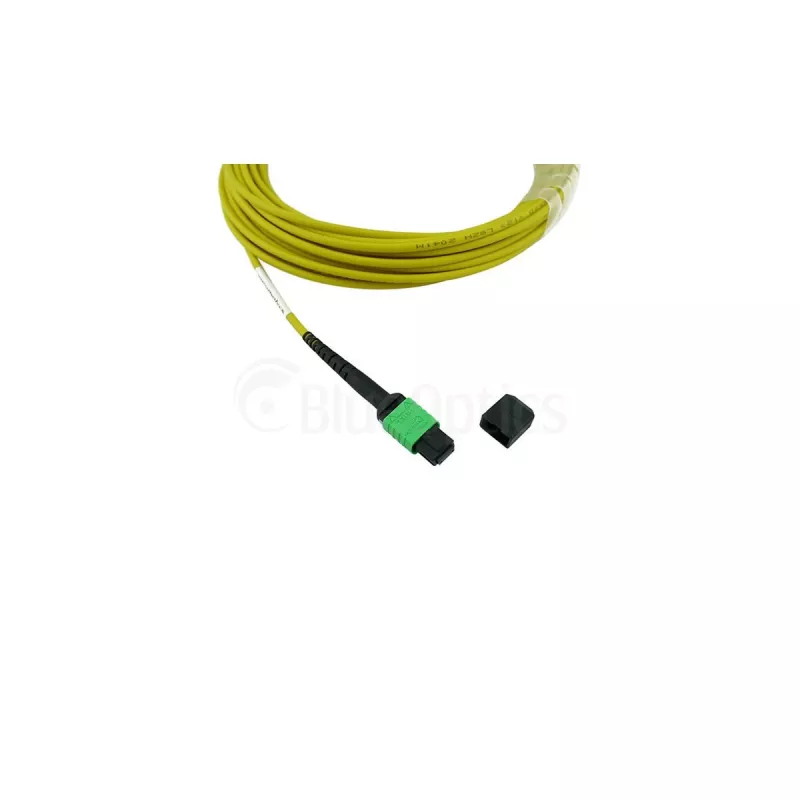

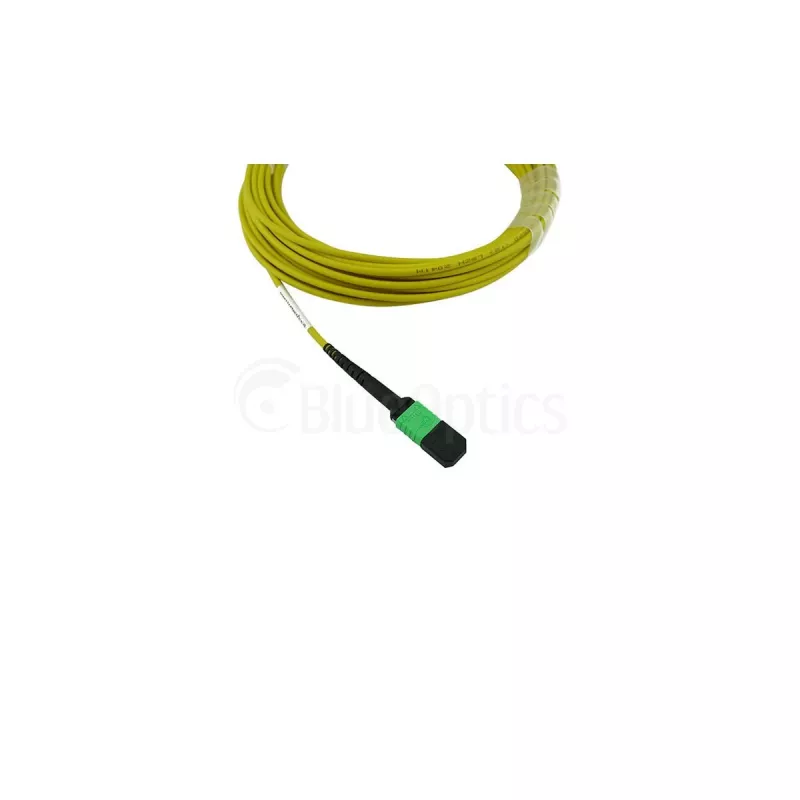

BlueOptics CB-M12-M12-SMF5M Compatibele MPO-MPO singlemode G.657.A1 patchkabel 5 meter

The BlueOptics CB-M12-M12-SMF5M is a high-quality MPO to MPO fiber optic patch cable designed for demanding data center and telecommunications environments. This 5-meter singlemode cable features 12 fibers with G.657.A1 bend-insensitive technology, ensuring reliable performance even in tight spaces. With APC polish and Type B polarity, it is ideal for high-density cabling and 40/100G Ethernet applications.

Advantages

This cable offers low insertion loss (≤0.35 dB) and high return loss (≥50 dB), ensuring excellent signal integrity. The LSZH jacket provides safety in confined spaces, while the 3.0 mm diameter and 10 mm minimum bend radius allow for flexible installation. RoHS and CE compliant.

Suitable for

• Data center backbone cabling
• Telecommunications networks
• High-density fiber optic patching
• 40/100 Gigabit Ethernet links

Key specifications

• Fiber Type: Singlemode 9/125 µm
• Connectors: MPO (Male) to MPO (Male)
• Polish: APC
• Polarity: Type B (Crossed)
• Number of Fibers: 12
• Cable Length: 5 m
• Jacket: LSZH
• Operating Wavelength: 1310/1550 nm
• Operating Temperature: -20°C to 70°C

Recommendations

For optimal performance, use with compatible MPO adapters and ensure proper polarity alignment. This cable is ideal for high-speed networks requiring reliable, low-loss connections.
