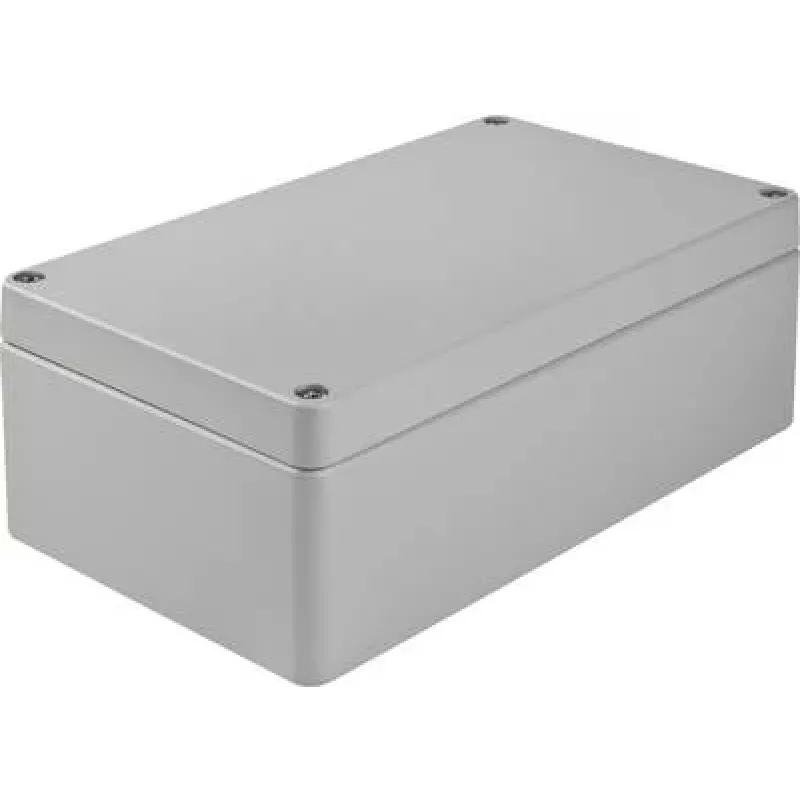

Bopla universele behuizing 280 x 180 x 101 aluminium zilvergrijs (RAL 7001) A 131 01131000.H

Industrial control panels and electronic assemblies need a housing that protects sensitive components from dust, moisture, and mechanical impact. The Bopla Universal Enclosure A 131 provides a robust aluminium shell with a silver-grey powder-coated finish (RAL 7001), suitable for wall, panel, or desktop mounting in automation, measurement, and control applications.

Key specifications

• External dimensions: 280 mm length, 180 mm width, 101 mm height
• Material: Aluminium
• Colour: Silver-grey (RAL 7001)
• Surface treatment: Powder-coated
• Ingress protection: IP66
• Impact resistance: IK08
• Lid fastening: Screw-on
• Gasket material: Neoprene
• Operating temperature range: -40°C to +100°C
• Internal mounting features: Integrated mounting bosses for PCBs/mounting plates

Why choose it

The enclosure's high corrosion resistance and wide temperature tolerance make it reliable in harsh industrial environments. The screw-on lid with neoprene gasket ensures a secure seal, while integrated mounting bosses simplify installation of internal components.

Ideal use cases

• Housing for industrial electronic controls
• Junction boxes for field wiring
• Protection of measurement and instrumentation equipment
• Wall-mounted or panel-mounted control stations

Good to know

The enclosure is part of the Bopla Universal series, designed for versatile mounting options including wall, panel, and desktop placement. Its aluminium construction offers a balance of strength and weight, suitable for both indoor and outdoor installations where IP66 protection is required.
