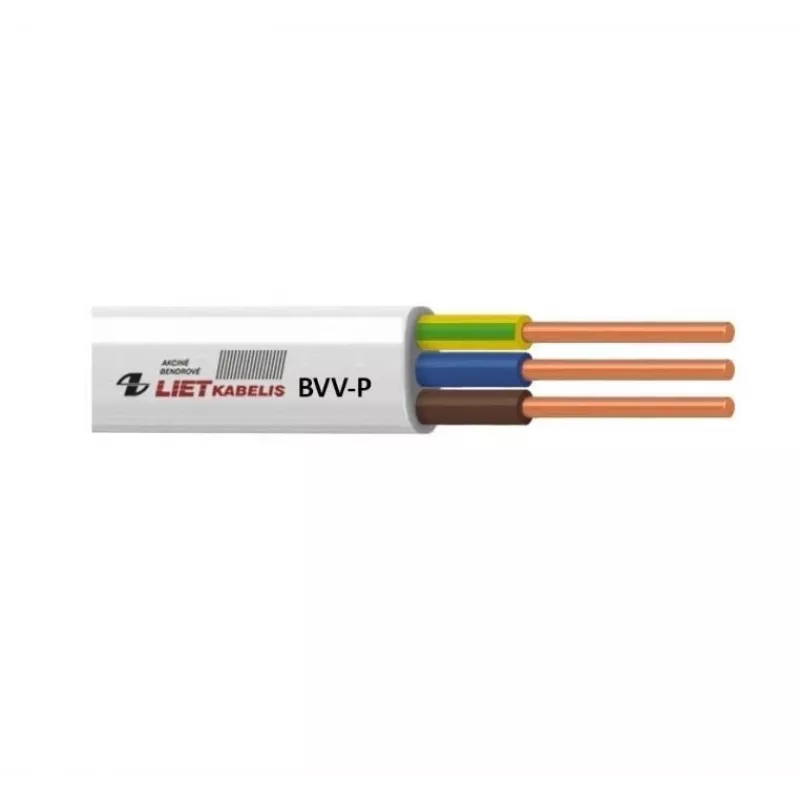

BVV-P 2x2,5 mm² platte stroomkabel wit 100 m

This BVV-P flat power cable is designed for fixed installation in residential and industrial buildings. With 2 cores of 2.5 mm² solid copper conductors and a white PVC sheath, it provides reliable power distribution for lighting, sockets, and fixed appliances. The cable is supplied on a 100 m reel for convenient handling and installation.

Advantages

Solid copper conductors ensure low resistance and excellent conductivity. The flat profile allows for space-saving routing and easy bending. PVC insulation and sheath provide good mechanical protection and electrical insulation. The cable is non-flame propagating, enhancing safety in case of fire.

Suitable for

• Fixed wiring in residential buildings
• Industrial power distribution
• Lighting circuits and socket outlets
• Connection of fixed appliances

Key specifications

• Cable type: BVV-P (flat power cable)
• Number of cores: 2
• Conductor cross-section: 2.5 mm²
• Conductor material: Copper (solid)
• Insulation: PVC
• Sheath: PVC
• Sheath colour: White
• Length: 100 m
• Rated voltage: 0.66 kV (660 V)
• Max. conductor temperature: +70 °C
• Operating temperature range: -50 °C to +50 °C
• Fire performance: Non-flame propagating (GOST 31996-2012, Cat. A)
• Min. bending radius: 10 x cable thickness
• Packaging: Cable reel

Recommendations

Ensure compliance with local electrical regulations. Suitable for indoor use only; not UV resistant. For outdoor applications, use a UV-resistant cable.
