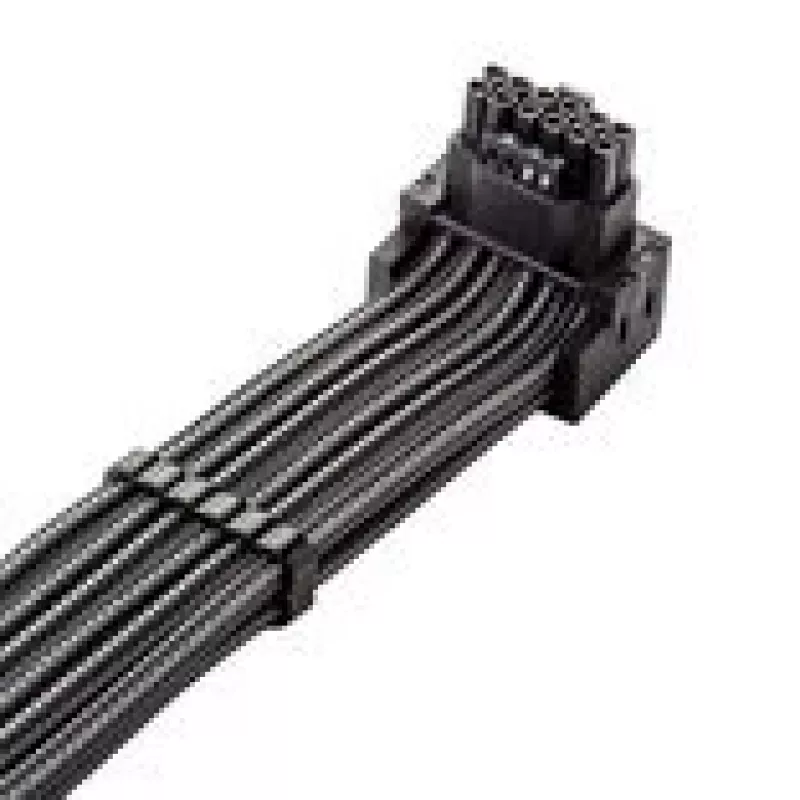

CableMod C-Series Pro aansluitkabel variant A 90° 16-pin naar 4×8-pin PCIe carbon

The CableMod C-Series Pro Anschlusskabel Variante A is a 90° angled adapter cable that converts a single 16-pin connector into four 8-pin PCIe connectors. Finished in a carbon appearance, this cable is designed to provide tidy cable routing and reliable power distribution for high-power graphics cards and multi-GPU systems. It is intended for use where a motherboard or power supply offers a 16-pin output and individual 8-pin PCIe plugs are required for GPUs or other expansion cards.

Advantages

The 90° 16-pin to 4×8-pin design reduces strain at the connector and helps with compact routing in tight cases. Carbon finish provides a neutral, low-profile aesthetic that blends with common system builds. The adapter breaks out a single high-current 16-pin feed into four separate 8-pin PCIe connectors, enabling support for multiple GPUs or high-power single cards while keeping cable runs consolidated.

Suitable for

• Powering high-end graphics cards that require multiple 8-pin PCIe power connectors
• Multi-GPU setups where one 16-pin source is split to feed multiple cards
• Cases with limited clearance where a 90° connector simplifies routing
• Upgrading systems to use newer 16-pin PSU/motherboard outputs with legacy 8-pin GPU inputs

Key specifications

• Connector configuration: 1×16-pin (input) to 4×8-pin PCIe (outputs)
• Angle: 90° at the 16-pin connector for low-profile routing
• Finish: carbon-style sleeving for a neutral visual appearance
• Use: designed for GPU power delivery and multi-connector expansion cards
• Cable length and flexibility designed for internal PC routing (exact dimensions vary by variant)

How to use

Connect the 16-pin plug to the compatible motherboard or power supply output, ensuring the 90° orientation matches available clearance. Route the four 8-pin PCIe connectors to the GPU or expansion cards, attaching each 8-pin plug firmly into the matching power receptacles. Verify that the combined power demands of connected devices do not exceed the source capacity and that all connectors are fully seated before powering the system.

Recommendations

Use this adapter only with compatible 16-pin outputs and verify power capacity of the supply. Avoid forcing connectors into ports and keep cable bends gentle to prevent mechanical stress. For multi-GPU configurations, check manufacturer guidelines for power distribution and recommended cabling.
