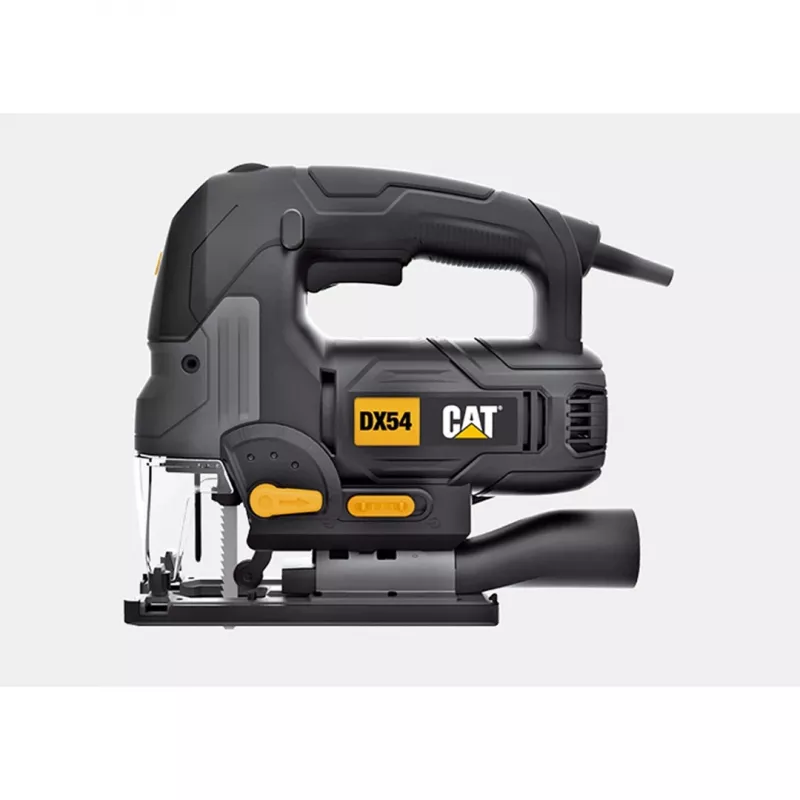

CATERPILLAR DX54 decoupeerzaag 800W

The CATERPILLAR DX54 is a powerful and versatile jigsaw designed for demanding cutting tasks in wood, metal, and aluminum. With an 800W motor and variable speed control, it delivers precise cuts across a wide range of materials. The tool-less blade change system and adjustable pendulum action make it efficient and user-friendly for both professionals and DIY enthusiasts.

Advantages

High power-to-weight ratio ensures fatigue-free operation. The 4-stage pendulum action allows for aggressive cutting in wood or fine cuts in metal. The aluminum base plate with bevel adjustment up to 45° provides stability and accuracy for angled cuts. Integrated dust extraction port keeps the work area clean.

Suitable for

• Cutting wood, plywood, and chipboard up to 100 mm depth
• Cutting steel up to 10 mm and aluminum up to 20 mm
• Bevel cuts up to 45° for miters and angled edges
• Curved and straight cuts in various materials

Key specifications

• Power Input: 800 W
• Voltage: 230-240 V, 50 Hz
• No-Load Stroke Rate: 0-3000 SPM
• Stroke Length: 20 mm
• Max. Cutting Depth (Wood): 100 mm
• Max. Cutting Depth (Steel): 10 mm
• Max. Cutting Depth (Aluminum): 20 mm
• Bevel Cutting Angle: 0-45°
• Pendulum Action Settings: 4 (0-3)
• Blade Change System: Tool-less
• Dust Extraction Port: Yes
• Base Plate Material: Aluminum
• Cable Length: 3 m
• Blade Type Compatibility: T-shank

Recommendations

For optimal performance, use high-quality T-shank jigsaw blades suitable for the material being cut. Always wear appropriate personal protective equipment. The CATERPILLAR DX54 is a reliable choice for construction, renovation, and woodworking projects.
