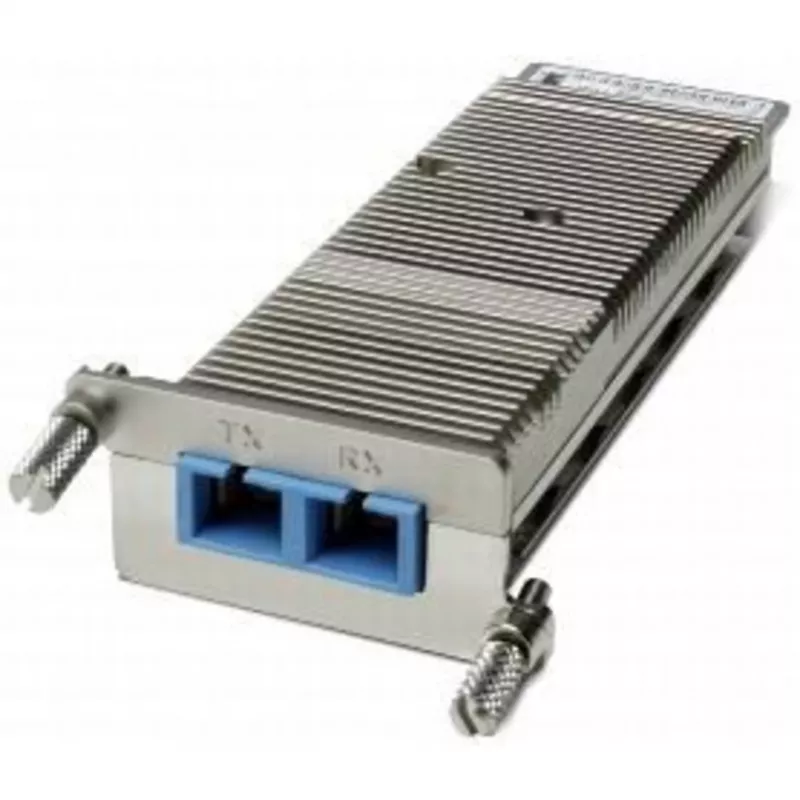

Cisco 10GBASE XENPAK transceiver-module - XENPAK-10GB-LX4

The Cisco 10GBASE XENPAK transceiver module (model XENPAK-10GB-LX4) delivers high-performance 10 Gigabit Ethernet connectivity for enterprise networks. Designed for single-mode fiber, this hot-swappable module supports distances up to 10 km, making it ideal for campus and data center backbone links.

Advantages

Reliable 10 Gbps data transfer over single-mode fiber with SC duplex connector. Compliant with IEEE 802.3ae standard, ensuring interoperability with Cisco switches and routers. Digital Optical Monitoring (DOM) provides real-time diagnostics for proactive network management. Low power consumption of 6 W typical reduces operational costs.

Suitable for

• Enterprise network backbone connections
• Data center interconnects
• Metropolitan area network (MAN) links
• High-bandwidth campus networks

Key specifications

• Device Type: Transceiver module
• Form Factor: XENPAK
• Connectivity Technology: Wired
• Cabling Type: 10GBASE-LR
• Data Transfer Rate: 10 Gbps
• Max Transfer Distance: 10 km (6.2 miles)
• Wavelength: 1310 nm
• Optical Fiber Type: Single-mode fiber (SMF)
• Connector Type: SC duplex
• Standards Compliance: IEEE 802.3ae
• Power Consumption: 6 W (typical)
• Hot Swappable: Yes
• Digital Optical Monitoring (DOM): Yes
• Operating Temperature: 0 to 70 °C (32 to 158 °F)
• Storage Temperature: -40 to 85 °C (-40 to 185 °F)

Recommendations

For optimal performance, use with Cisco switches and routers that support XENPAK modules. Ensure single-mode fiber infrastructure is in place for 10 km reach. Compatible with standard SC duplex patch cables.
