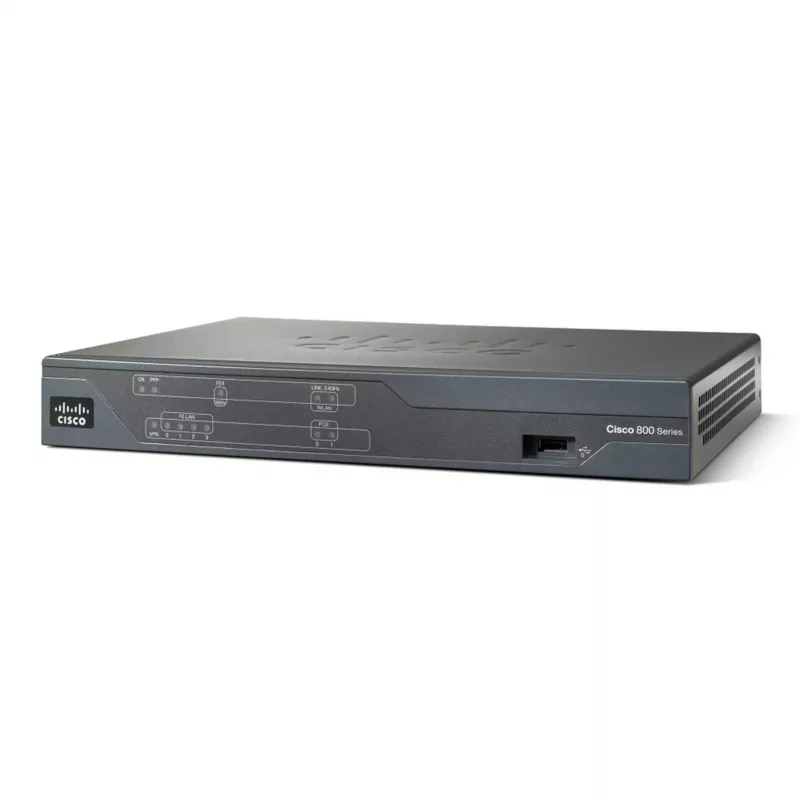

Cisco 886 VDSL/ADSL over ISDN multi-mode router

The Cisco 886 VDSL/ADSL over ISDN Multi-mode Router is a high-performance, secure router designed for small to medium-sized businesses and enterprise branch offices. It provides reliable broadband connectivity over VDSL2/ADSL2+ lines with ISDN support, ensuring flexible deployment in diverse network environments.

Advantages

This router offers integrated security features including a stateful inspection firewall, intrusion prevention system (IPS), and content filtering to protect your network. With support for up to 20 IPSec VPN tunnels, it enables secure remote access. The device is easy to manage via Cisco IOS CLI or Cisco Configuration Professional, and it supports advanced routing protocols like OSPF, EIGRP, and BGP.

Suitable for

• Small to medium-sized businesses requiring secure and reliable internet connectivity
• Enterprise branch offices needing VDSL/ADSL over ISDN connectivity
• Deployments where integrated security and VPN capabilities are essential

Key specifications

• WAN Interface: 1 x VDSL2/ADSL2+ (Annex A/B/M) over ISDN
• LAN Interfaces: 4 x Fast Ethernet (10/100BASE-T) ports
• VPN Support: IPSec VPN (up to 20 tunnels)
• Firewall Throughput: 20 Mbps
• DRAM: 256 MB (default), up to 768 MB
• Flash Memory: 128 MB (default), up to 256 MB
• Routing Protocols: OSPF, EIGRP, BGP, RIPv1/v2, Static Routing
• Security Features: Stateful inspection firewall, IPS, Content Filtering, URL Filtering
• Management: Cisco IOS CLI, Cisco Configuration Professional, SNMP, Telnet, SSH
• Power Supply: External AC adapter
• Form Factor: Desktop, rack-mountable with optional kit

Recommendations

For optimal performance, pair this router with Cisco switches and access points. Ensure your DSL line supports VDSL2/ADSL2+ Annex A/B/M for full compatibility.
