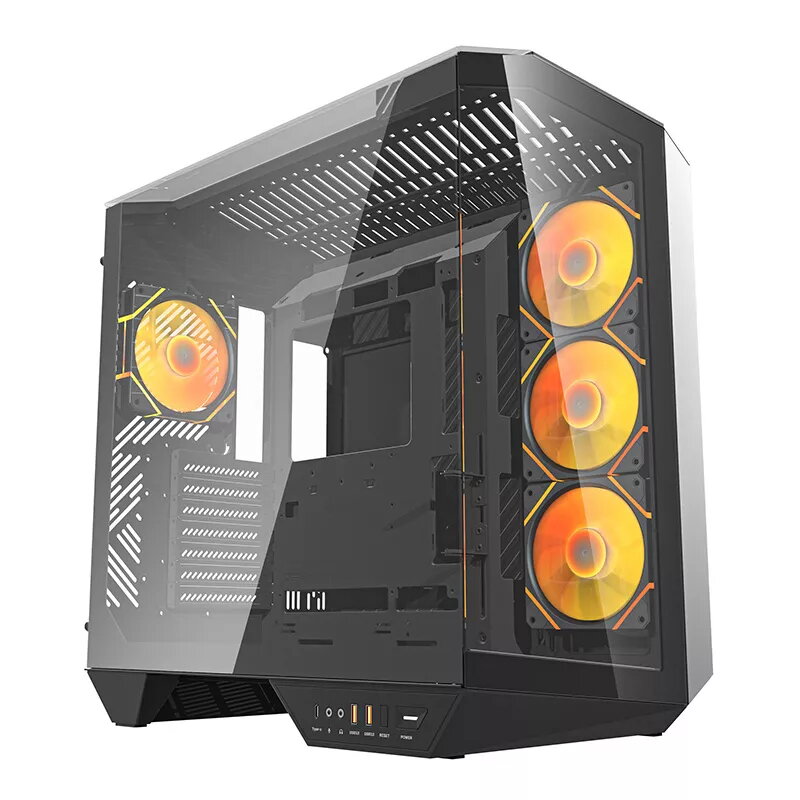

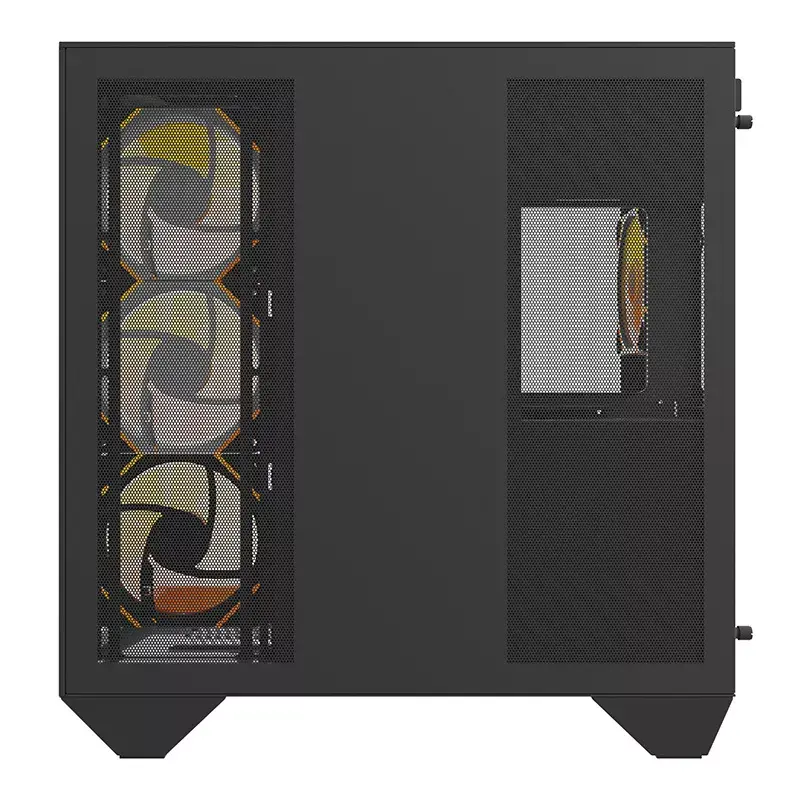

Computerbehuizing Darkflash DY470 ATX zwart met 4 ventilatoren en GPU-houder

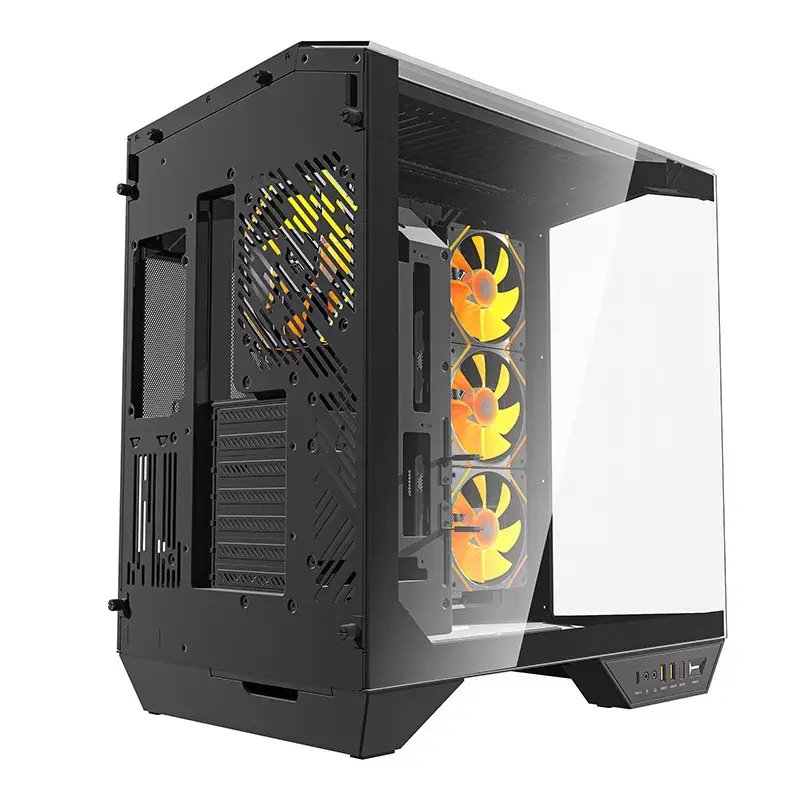

The Darkflash DY470 ATX computer case in black provides a roomy interior and pre-installed cooling to build versatile desktop systems. The case supports ATX, Micro ATX and ITX motherboards, fits long graphics cards and tall CPU coolers, and includes four DM12 Pro ARGB fans plus a GPU bracket to protect and stabilise the graphics card. Front I/O offers two USB 3.0 ports, one USB-C 3.2 port and HD audio connectors, while tempered glass side panels expose the internal layout.

Advantages

The DY470 combines a spacious Big Tower layout with comprehensive cooling options — up to ten 120 mm fans or two 360 mm radiators — and a removable dust-filter system for easier maintenance. Included DM12 Pro ARGB fans provide quiet operation (27.5 dB), PWM control and ASUS AURA SYNC compatibility. A GPU holder is supplied to prevent GPU sag and protect the card from mechanical stress. Cable routing compatible with rear-connect ATX motherboards helps maintain a tidy interior.

Suitable for

• Custom gaming PC builds using ATX, Micro ATX or ITX motherboards
• High-performance systems requiring extensive air or liquid cooling
• Users who want visible component presentation behind tempered glass
• Builders who need support for long GPUs and tall CPU coolers

Key specifications

• Brand: Darkflash
• Model: DY470
• Form factor: Big Tower
• Side panel: Tempered glass
• Motherboard support: ATX / Micro ATX / ITX
• Drive bays: 3.5" HDD x2, 2.5" SSD x1
• Max GPU length: 410 mm (horizontal) / 390 mm (vertical with optional PCIe 4.0 cable)
• Max CPU cooler height: 175 mm
• Max PSU length: 200 mm
• Fan capacity: Up to 10 x 120 mm (4 x DM12 Pro ARGB included)
• Water cooling: Supports up to two 360 mm radiators (top/side) and 120 mm rear

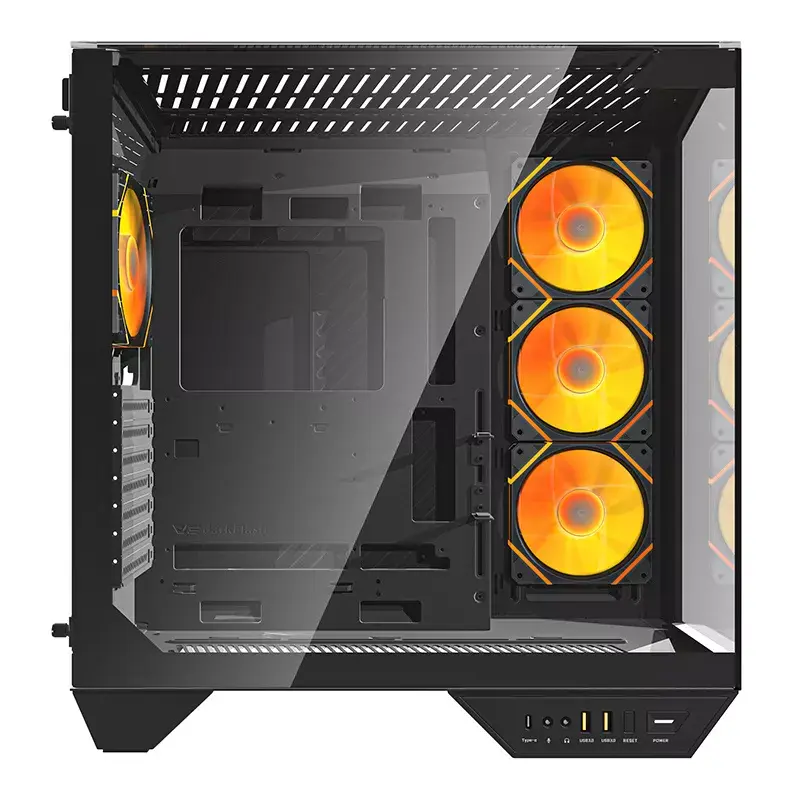

• Front I/O: USB 3.0 x2, USB-C 3.2 x1, HD Audio
• Material: 0.7 mm SPCC
• Dimensions (H×W×D): 497 × 298 × 473 mm

How to use

Install the chosen motherboard (ATX/Micro ATX/ITX) and route power and data cables through the rear-connect openings to keep the front area tidy. Mount storage drives in the designated 3.5" or 2.5" bays, fit a CPU cooler up to 175 mm in height, and install the power supply at the bottom (max 200 mm). Use the included four DM12 Pro ARGB fans for initial airflow and add additional fans or radiators as required for higher cooling performance. If installing a GPU vertically, use an optional PCIe 4.0 vertical cable and secure the graphics card with the supplied GPU bracket.

Recommendations

For balanced airflow, configure intake fans on the side and bottom and exhaust fans at the rear and top; enable PWM control to adjust fan speed based on CPU/GPU temperatures and connect ARGB headers to a compatible controller for synchronized lighting.
