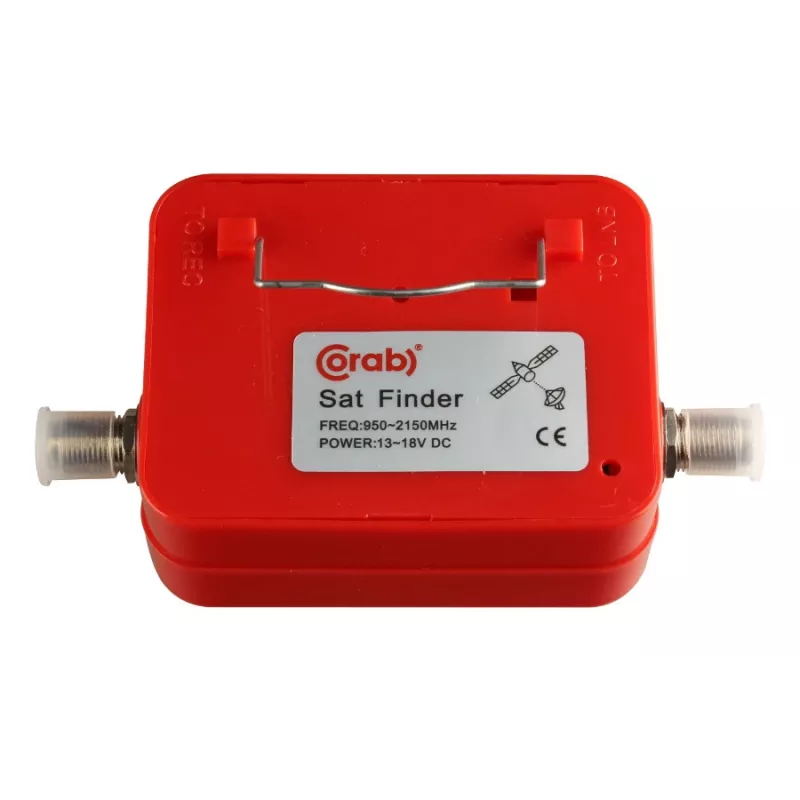

CORAB MIERNIK DVB-S SAT-FINDER satelliet signaalzoeker 7009

The CORAB MIERNIK DVB-S SAT-FINDER is a professional satellite signal meter designed for quick and accurate alignment of satellite dishes. With a backlit LCD display and intuitive menu-driven interface, it provides real-time measurements of signal strength, quality, BER, and S/N ratio. Ideal for installers and technicians, this compact device supports DiSEqC 1.0/1.1/2.0 and 22kHz tone, and includes a built-in Li-Ion battery for up to 4 hours of operation.

Advantages

Easy-to-read backlit LCD display; pre-programmed satellite list with editable entries; audio indicator for signal lock; short circuit protection; USB port for firmware updates.

Suitable for

• Satellite TV installers
• Field service technicians
• DIY enthusiasts aligning satellite dishes

Key specifications

• Frequency Range: 950-2150 MHz
• Input Level: -65 to -25 dBm
• Input Impedance: 75 Ohm
• LNB Supply: 13/18V DC, max 300 mA
• DiSEqC: 1.0, 1.1, 2.0
• Battery: Built-in Li-Ion 800 mAh
• Operating Time: Up to 4 hours
• Charging Time: Approx. 3 hours
• Connectivity: F-type input, USB port
• Power Supply: 12V DC / 1A (adapter included)

Recommendations

For best results, ensure the LNB is properly connected and the satellite dish is stable. Use the pre-programmed satellite list for quick setup or manually enter coordinates.
