Darkflash DY451 computerbehuizing ATX zwart

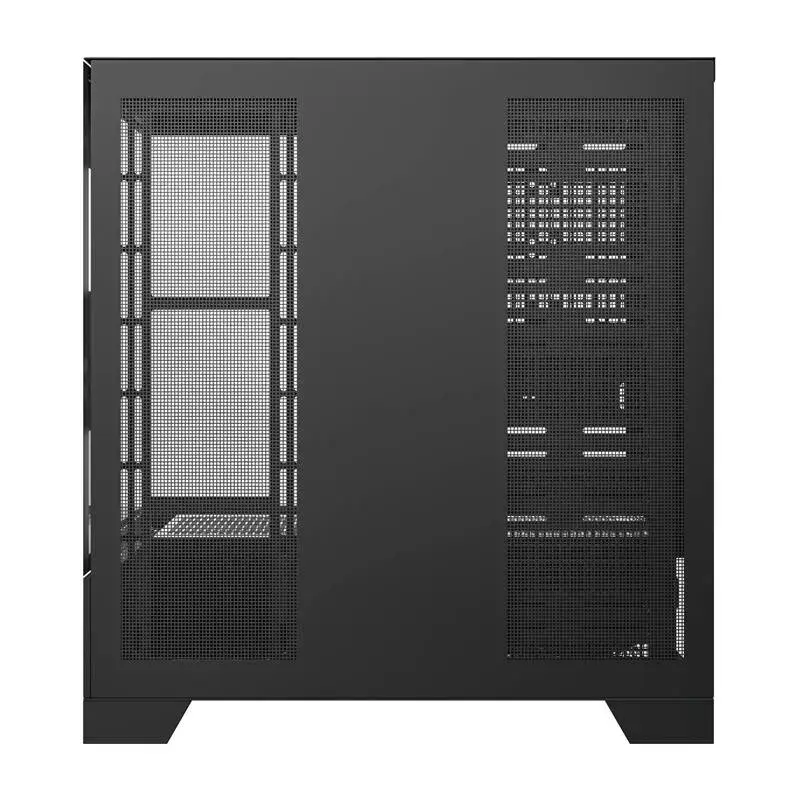

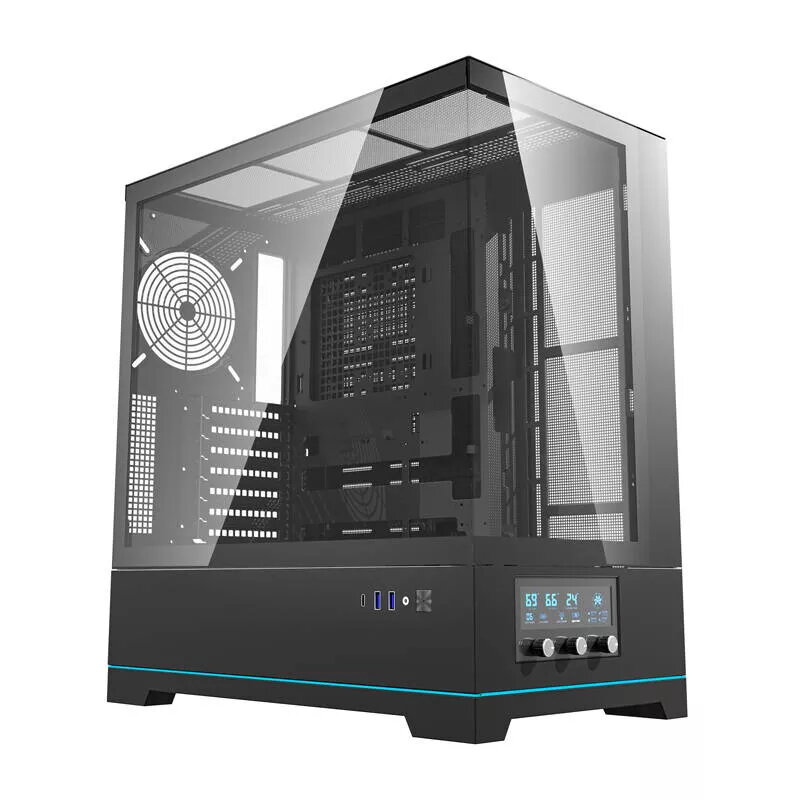

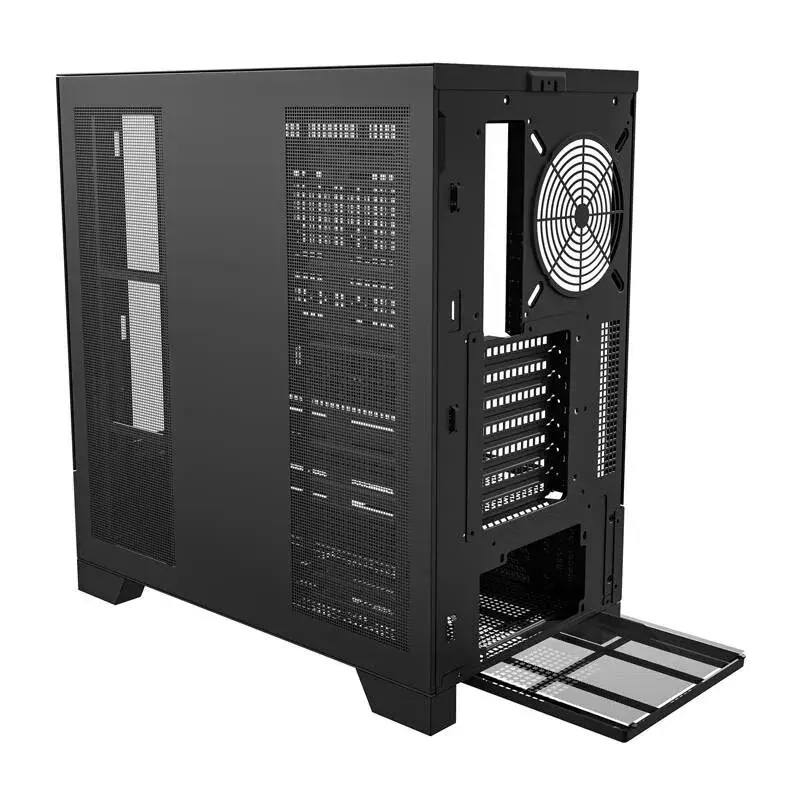

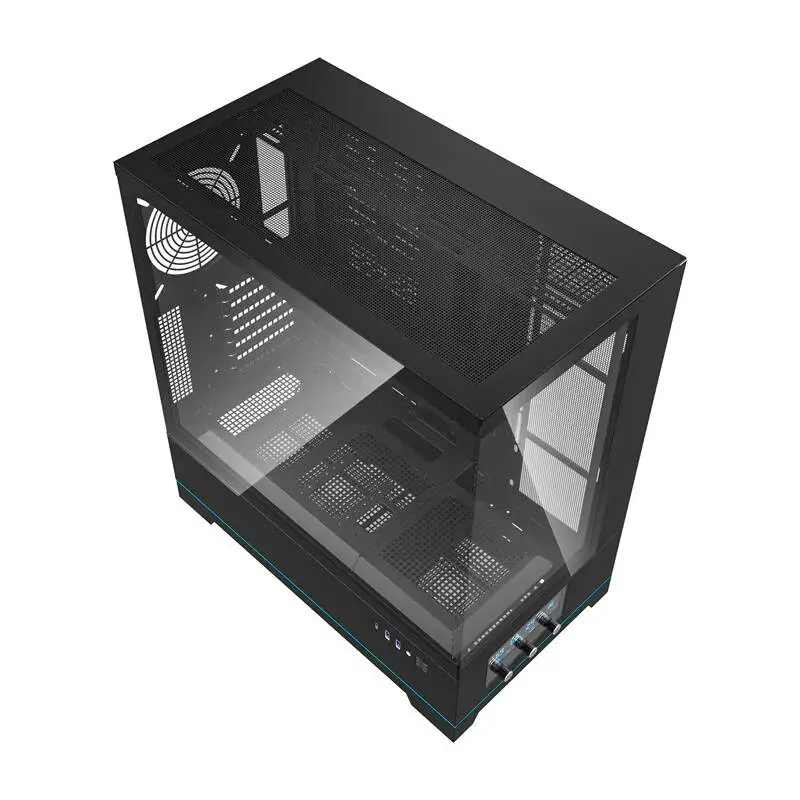

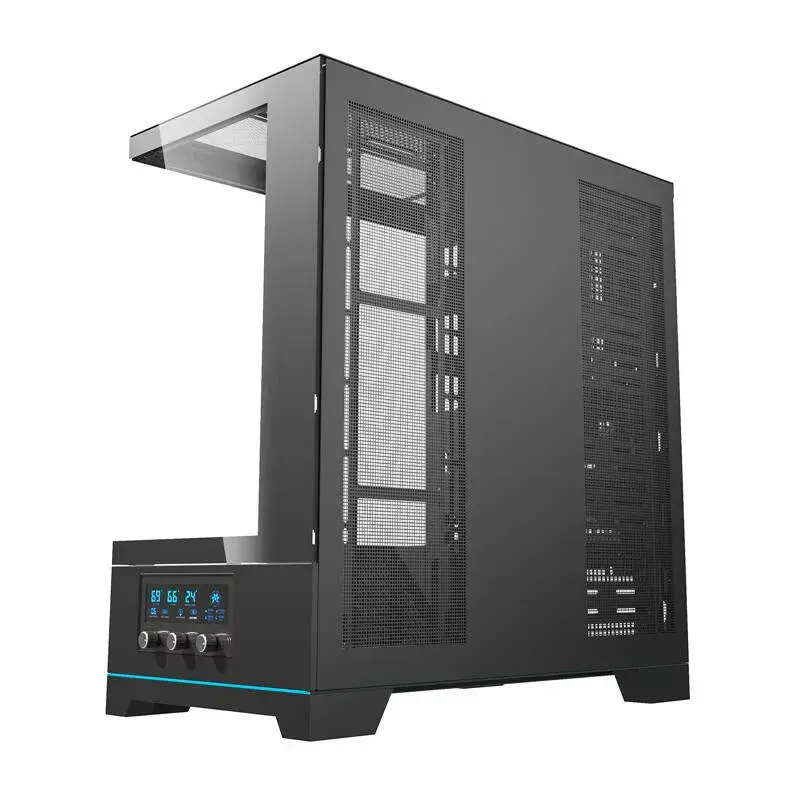

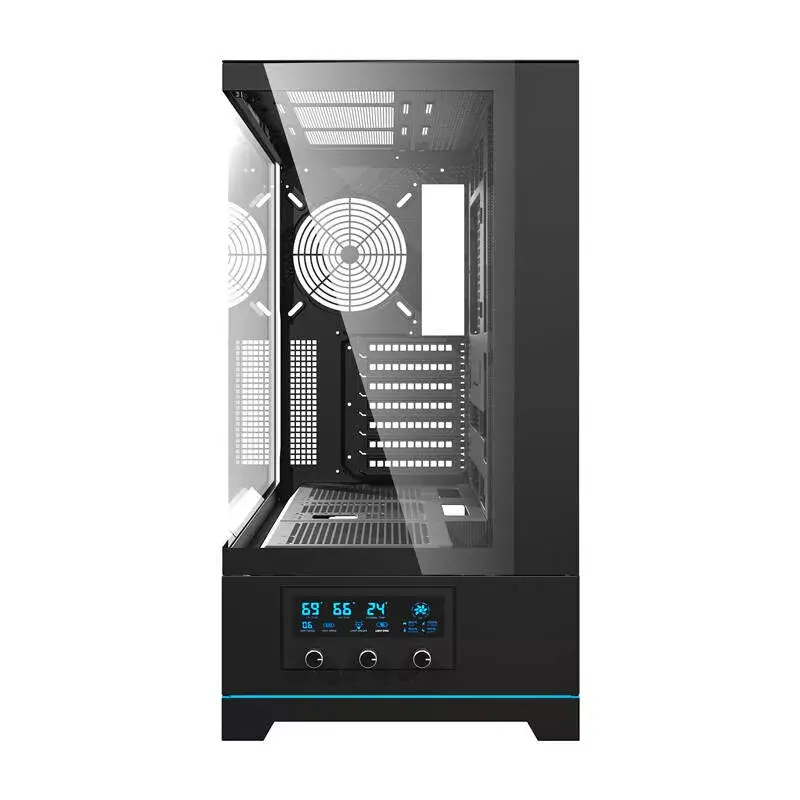

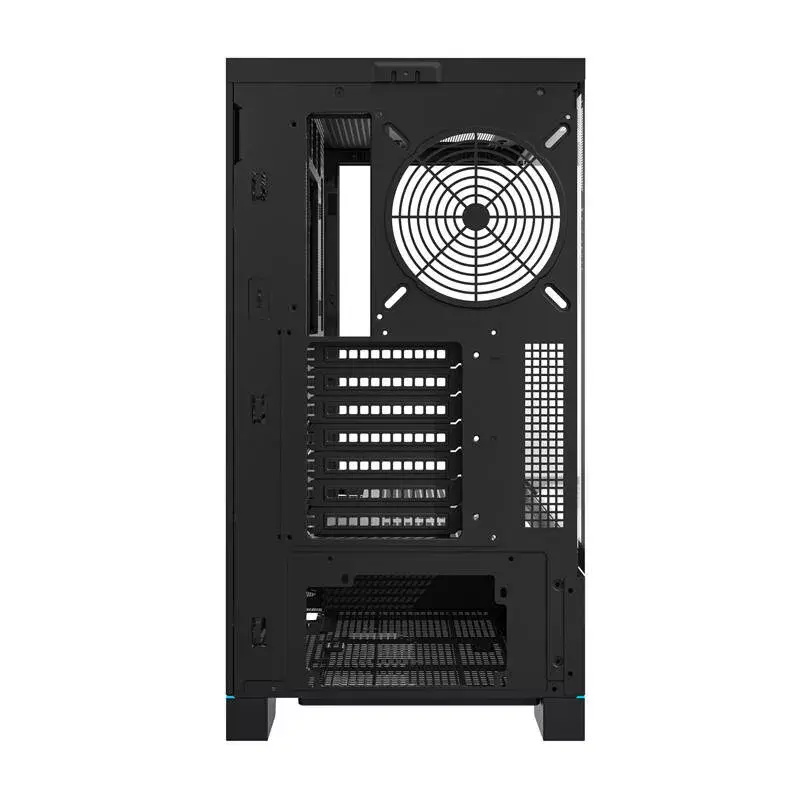

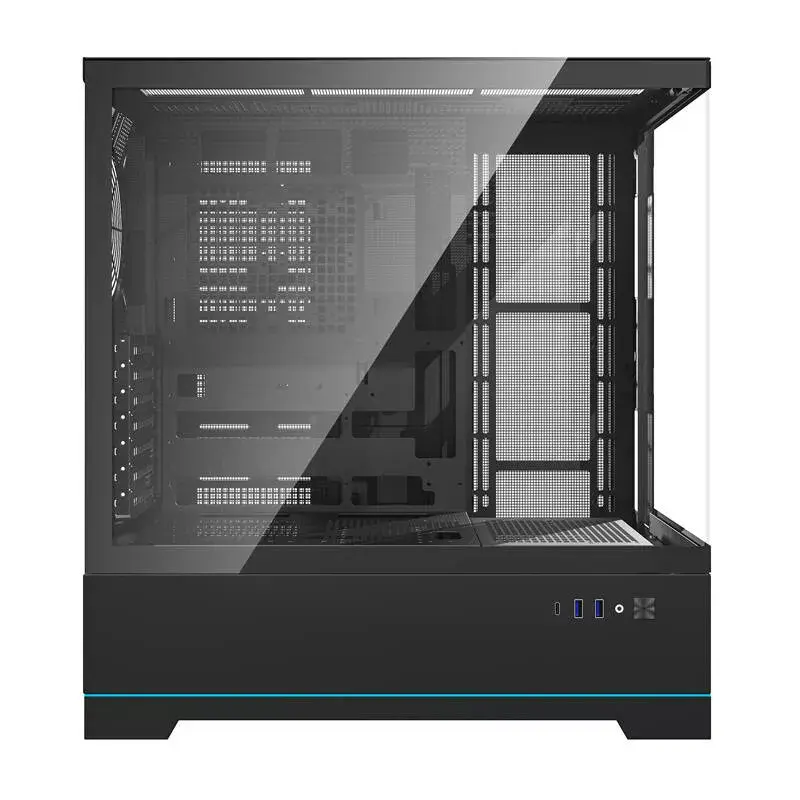

The Darkflash DY451 computer case is a black ATX Mid Tower designed to accommodate ATX, Micro-ATX and ITX motherboards. Constructed from 0.8 mm SPCC steel with a tempered glass side panel, the chassis provides a durable frame and a clear view of internal components. The case is shipped without fans so users can configure cooling to their needs and supports extensive cooling and storage options while providing front-panel connectivity including 2 x USB 3.0, 1 x USB-C and HD Audio.

Advantages

The DY451 offers a spacious interior with support for large graphics cards and multiple drives, a tempered glass side panel for component visibility, and a vented steel front panel for improved airflow. It supports up to ten fans and multiple radiator positions for flexible air or liquid cooling configurations. The case also features easy-access front controls, a removable bottom dust filter and built-in cable management provisions.

Suitable for

• Custom gaming or workstation builds using ATX/Micro-ATX/ITX motherboards
• Systems requiring multiple 3.5" and 2.5" drives
• High-performance builds with large GPUs (up to 420 mm) or tall CPU coolers (up to 180 mm)
• Users who prefer to select and install their own fans or water cooling

Key specifications

• Manufacturer: Darkflash
• Model: DY451
• Case type: ATX Mid Tower
• Materials: 0.8 mm SPCC steel, tempered glass side panel
• Motherboard support: ATX, Micro ATX, ITX
• Drive bays: 4 x 3.5", 5 x 2.5"
• Expansion slots: 7
• Max GPU length: 420 mm
• Max CPU cooler height: 180 mm
• Fan support: up to 10 fans (none included)
• Fan mounting options: Top: 3 x 120/3 x 140 mm; Rear: 1 x 120/1 x 140 mm; Side: 3 x 120/3 x 140 mm; PSU area: 3 x 120 mm
• Water cooling support: Top 240/360 mm; Side 280/360 mm
• Front connectors: 2 x USB 3.0, 1 x USB-C, HD Audio
• Power supply: Bottom-mount ATX, max length 250 mm
• Included accessories: Mounting screws, front-panel cables
• Dimensions (H×W×D): 491 × 258 × 451 mm
• Color: Black

How to use

Install the chosen motherboard and power supply into the designated ATX-compatible mounts, then position drives in the 3.5" and 2.5" bays. Select and mount fans or radiators according to the available top, side, rear and PSU-area mounting points; the case supports a variety of fan and radiator sizes for air or liquid cooling. Connect front-panel cables to the motherboard using the supplied cables and use the front-panel buttons to control power, reset and fan speed settings. The tempered glass panel is removable to allow easy access during assembly and maintenance.

Recommendations

For optimal airflow, install intake fans behind the vented front panel and exhaust fans at the top or rear. If using a long graphics card, confirm GPU length compatibility with the 420 mm maximum and plan cable routing using the case’s cable management features. Download any necessary drivers from the manufacturer’s website to enable front-panel display or additional control functions.
