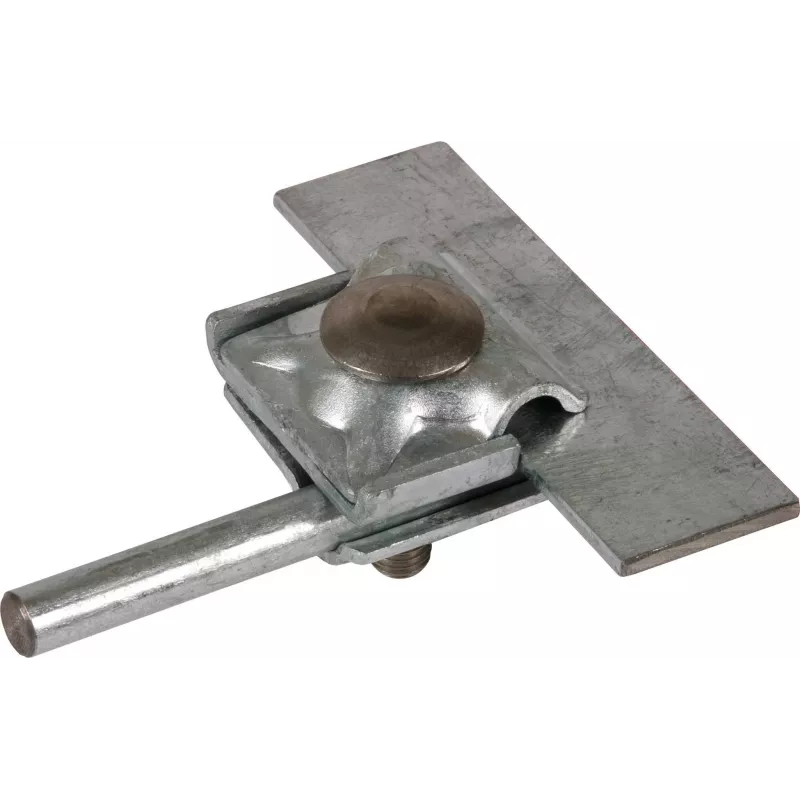

DEHN felsrandklem St/tZn 0,7-10mm 365220

The DEHN 365220 seam clamp stands out for its robust steel construction with hot-dip galvanisation, ensuring high corrosion resistance for outdoor lightning protection systems. Unlike many generic clamps, it accommodates a wide sheet thickness range from 0.7 to 10 mm, making it versatile for various standing seam metal roofs.

Highlights

• Clamping range: 0.7–10 mm sheet thickness
• Material: Steel, hot-dip galvanised (St/tZn)
• For round conductors 8–10 mm diameter
• One connection point for earthing and equipotential bonding
• Weather-resistant and UV-resistant

In daily use

Installed by clamping onto the standing seam, this clamp provides a reliable connection point for lightning protection conductors. Its high corrosion resistance ensures long-term performance in outdoor environments, reducing maintenance needs.

Full specifications

• Product type: Seam clamp
• Material: Steel
• Surface treatment: Hot-dip galvanised
• Clamping range: 0.7–10 mm
• Conductor diameter: 8–10 mm
• Number of connection points: 1
• Application: Lightning protection systems
• Mounting location: Metal roofs with standing seams
• Corrosion resistance: High
• Environmental suitability: Outdoor / weather-resistant
• UV resistance: Yes
• Temperature resistance: Yes

Final note

A dependable, corrosion-resistant solution for secure conductor attachment on standing seam roofs.
