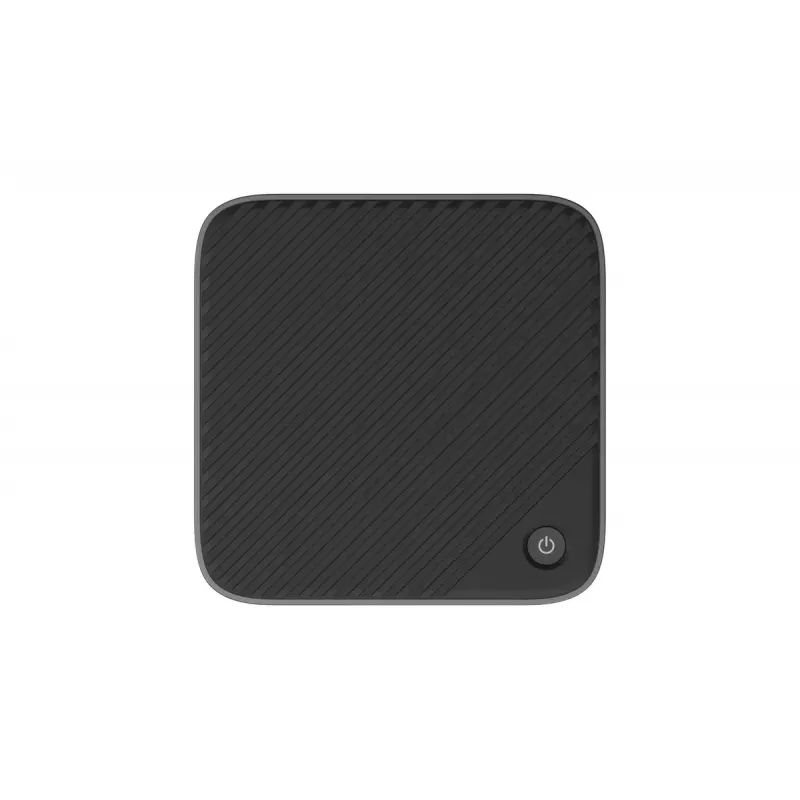

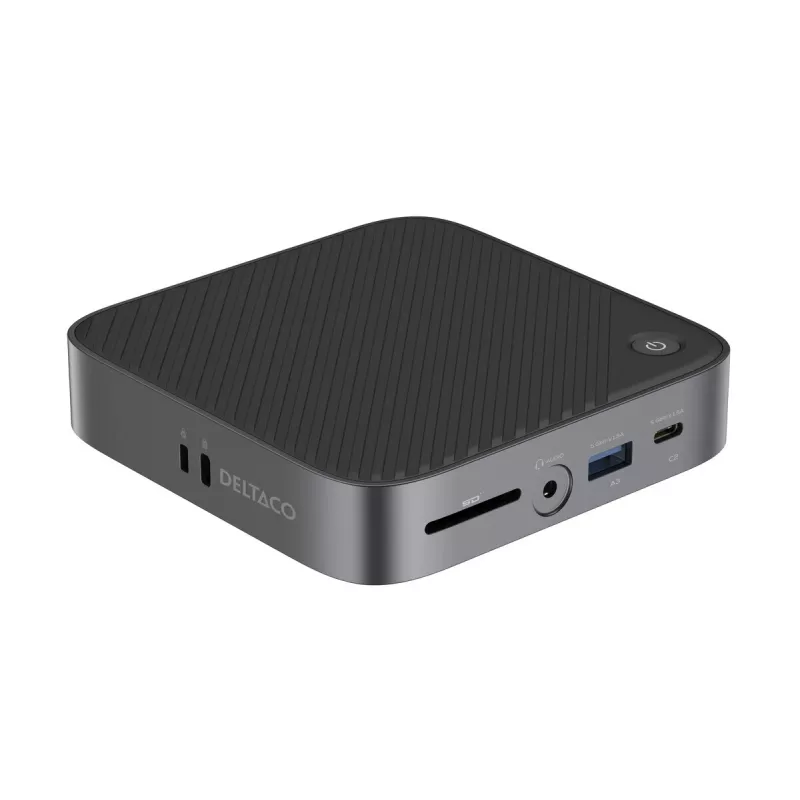

Deltaco USBC-HDMI28 USB Type-C hub 5000 Mbit/s 4K HDMI

The Deltaco USBC-HDMI28 is a USB Type-C docking hub that expands a notebook or compatible device with multiple connectivity options. It offers 5000 Mbit/s data transfer, dual 4K HDMI outputs at up to 60 Hz, a Gigabit RJ-45 Ethernet port, an integrated SD card reader and several USB ports, all in a compact black enclosure. Mount and screws are included to attach the docking station to the back of a screen.

Advantages

This hub combines USB 3.2 Gen 1 Type-A ports, USB Type-C with Power Delivery support, and two HDMI outputs to simplify connecting external displays, peripherals and wired networks. The device supports high-bandwidth data transfer at up to 5000 Mbit/s and provides a built-in SD card reader for quick media access. Its included mount and screws allow tidy installation on a monitor's rear panel.

Suitable for

• Connecting laptops to external monitors and projectors
• Providing wired network access via RJ-45 (Gigabit Ethernet)
• Attaching multiple USB devices such as storage, keyboard and mouse
• Importing photos or media from SD cards
• Creating a compact desk setup with the hub mounted to a monitor

Key specifications

• Host interface: USB Type-C
• Data transfer speed: 5000 Mbit/s
• HDMI: 2 ports, 4K Ultra HD up to 60 Hz
• USB ports: 3 × USB 3.2 Gen 1 (Type-A), 1 × USB Type-C (with Power Delivery)
• Ethernet: 1 × RJ-45 (Gigabit)
• Card reader: integrated SD
• Colour: Black
• Weight: 0.19 kg

How to use

Connect the hub to a compatible device using its USB Type-C host interface. Attach external displays via the HDMI outputs and connect wired network, USB peripherals and SD cards to the corresponding ports. If using USB Power Delivery, connect an appropriate PD power adapter to the USB Type-C PD port to charge the host device while using the hub.

Recommendations

For stable 4K 60 Hz output on two displays and reliable wired network performance, use high-quality HDMI cables and a Gigabit-capable Ethernet cable; ensure the host device supports dual external displays and USB Power Delivery if simultaneous charging is required.
