DRAGINO LHT65N vrijstaande temperatuur- en vochtigheidssensor voor binnen/buiten LoRaWAN EU868

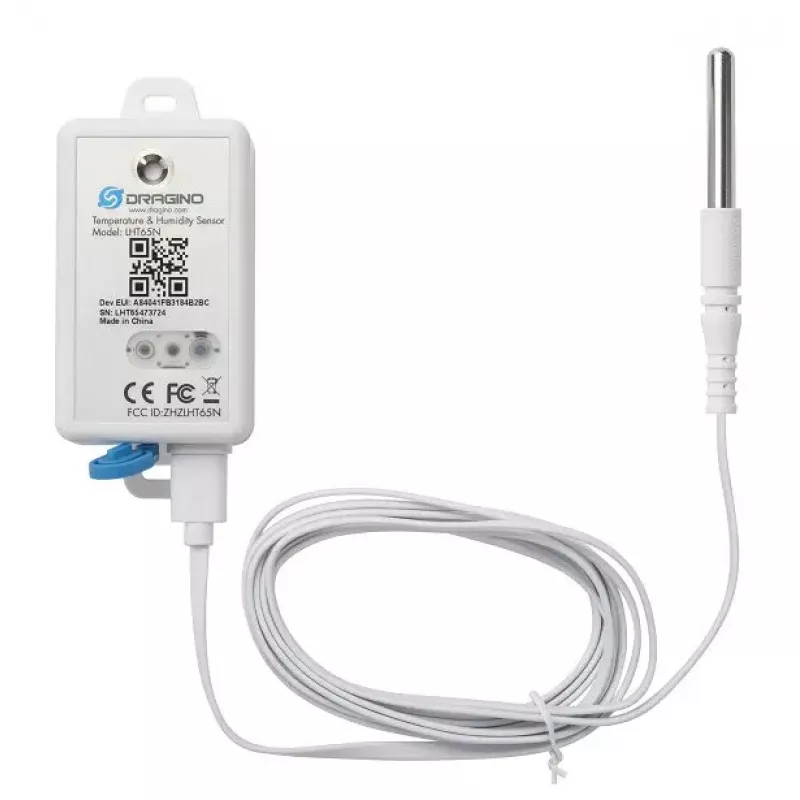

DRAGINO LHT65N is a freestanding temperature and humidity sensor for indoor and outdoor monitoring that communicates over LoRaWAN (EU868). It integrates a built-in temperature and humidity probe, offers an external sensor connector for optional sensors, and is designed for long-range, low-power wireless data transmission. The device includes a non-rechargeable 2400 mAh battery and supports LoRaWAN v1.0.3 Class A, datalogging when network coverage is unavailable, and firmware updates via a programming port.

Advantages

The LHT65N provides ultra-long range LoRaWAN communication with low power consumption, enabling multi-year operation from a single battery under typical configurations. It supports both built-in and optional external sensors, has a tri-colour LED for status indication, and can store measurements locally when network connection is absent, ensuring no data loss for missed transmissions.

Suitable for

• Environmental monitoring in warehouses, greenhouses and storage areas
• Building automation and HVAC monitoring
• Smart city and smart metering applications requiring long-range sensors
• Remote sensing where mains power is unavailable

When it may not be suitable

The LHT65N is not intended for continuous high-frequency sampling where rapid updates are required; its battery life depends strongly on transmission interval and network usage. It is also not a replacement for industrial-grade, certified sensors needed for regulated laboratory or medical environments.

Key specifications

• Wireless protocol: LoRaWAN v1.0.3 Class A (EU868 band)
• Temperature measurement range: -40 to 80 °C
• Humidity measurement range: 0 to 96% RH
• Power source: built-in non-rechargeable 2400 mAh battery (typical up to 10 years depending on usage)
• Physical type: freestanding indoor/outdoor sensor enclosure
• LED indicator: tri-colour status LED
• Optional: external sensor connector for additional temperature probe
• Data features: on-device datalogging when network is unavailable; firmware upgrade via program port

How to use

Install the LHT65N in the monitoring location, ensuring the sensor is sheltered from direct precipitation if used outdoors and positioned for representative ambient readings. Configure LoRaWAN settings and join a compatible EU868 gateway/network using the LoRaWAN v1.0.3 Class A procedure. Adjust reporting intervals according to required battery life and enable datalog retrieval if operating in areas with intermittent coverage. Firmware updates can be applied through the programming port following the manufacturer instructions.

What to consider before purchase

• Required radio band: this model uses EU868 and must match local LoRaWAN gateway band
• Expected reporting frequency and its effect on battery life
• Whether an external temperature probe is needed for your use case
• Environmental protection needs for outdoor installation (sheltering from direct water exposure)

Recommendations

For longest battery life, use conservative reporting intervals, minimize retransmissions by ensuring good gateway coverage, and retrieve logged data periodically if the device operates in intermittent network areas.
