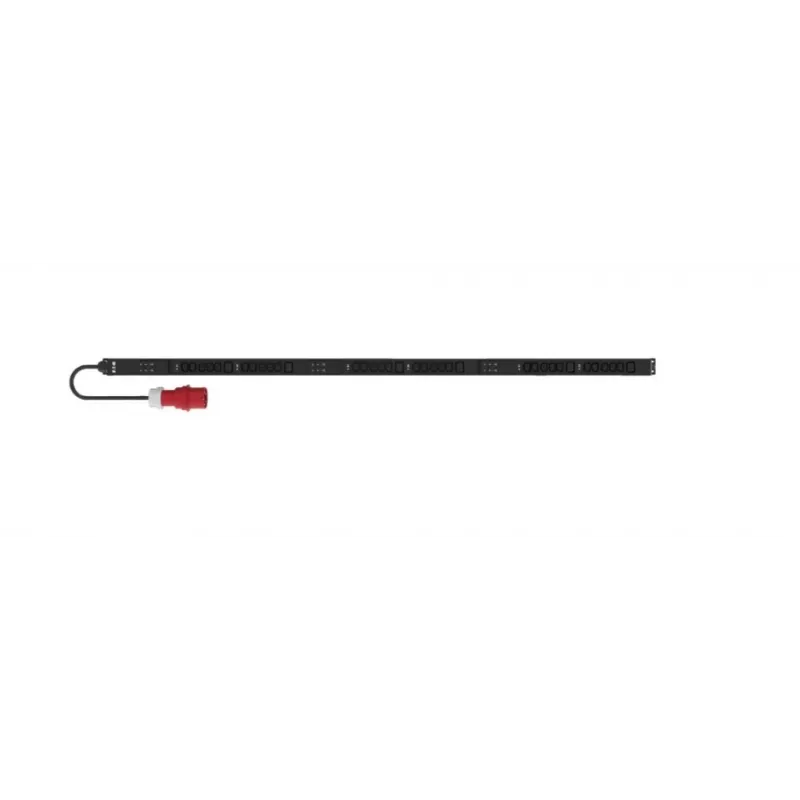

Eaton FLXTBA332C4 PDU FLXG2 Basic 0U 3-fase 32A 230/400V met 21x C13 & 3x C19 stopcontacten

Handle 32A of 3-phase power distribution with the Eaton FLXTBA332C4, a 0U vertical rackmount PDU engineered for high-density IT environments. It delivers 230/400V AC through 21 IEC C13 and 3 IEC C19 outlets, protected by circuit breakers.

Overview

The Eaton FLXTBA332C4 is a basic, non-intelligent power distribution unit designed for reliable power delivery in server racks. Its 0U vertical form factor saves valuable rack space, mounting directly on the rear or side rails. With a 3-meter input cord terminated in an IEC 60309 3P+N+E 32A plug, it connects directly to 3-phase power sources.

What stands out

• 32A current rating supports demanding equipment loads.
• 24 total outlets (21 C13, 3 C19) accommodate a mix of devices.
• Circuit breaker protection prevents overload damage.
• Tool-less vertical mounting simplifies installation.
• Metal housing ensures durability in data center environments.

Technical details

• PDU Type: Basic (non-intelligent)
• Form Factor: 0U vertical rackmount
• Input Voltage: 230/400V AC, 3-phase
• Input Current: 32A
• Input Plug: IEC 60309 3P+N+E 32A (5-pin)
• Output Receptacles: 21 x IEC 60320 C13, 3 x IEC 60320 C19
• Overload Protection: Circuit breakers
• Power Cord Length: 3m
• Operating Temperature: 0°C to 60°C
• Product Colour: Black

Our verdict

A robust, no-frills power distribution solution for racks requiring high current capacity and multiple outlet types. Its 0U design and circuit breaker protection make it a reliable choice for mission-critical infrastructure.
