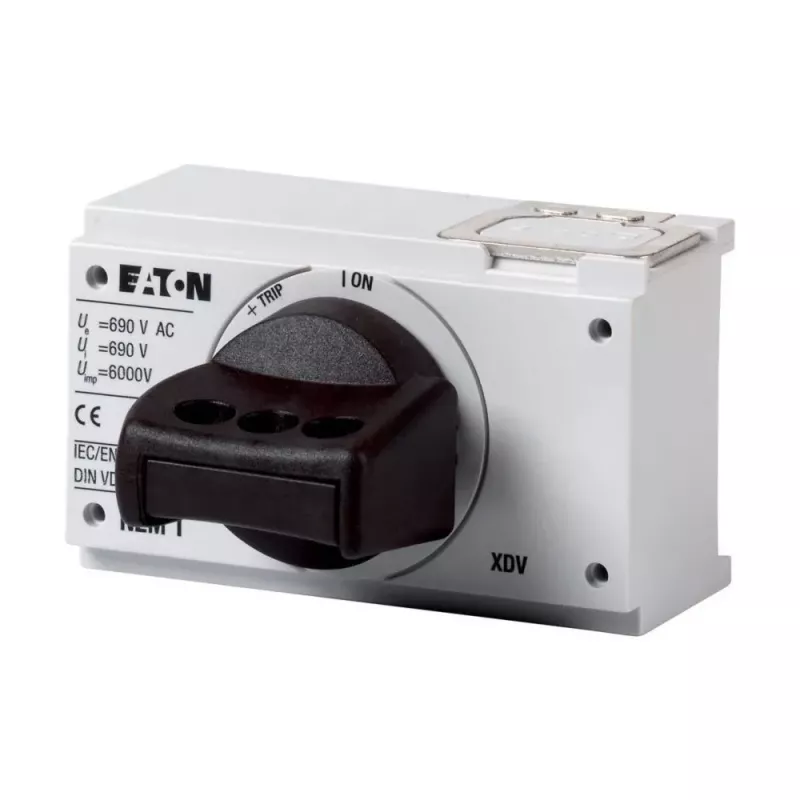

Eaton NZM1-XDV afsluitbare draaigreep voor NZM1 vermogensschakelaars (260125)

For panel builders and maintenance technicians working with Eaton NZM1 series circuit breakers, the NZM1-XDV lockable rotary handle provides a secure and reliable way to operate the breaker from outside an enclosure. This door-coupling handle is lockable in the OFF position, allowing up to three padlocks with shackle diameters of 4–8 mm to be fitted for lockout/tagout procedures.

Key specifications

• Compatibility: Eaton NZM1 series circuit breakers
• Mounting type: Door-coupling
• Lockable: Yes, in OFF position
• Maximum padlocks: 3
• Padlock shackle diameter: 4–8 mm
• Handle colour: Black / Grey
• Position indication: ON/OFF
• Degree of protection (front): IP66
• Material: High-quality plastic (Polycarbonate)
• Operating mechanism: Rotary
• Switching angle: 90 degrees
• Operating temperature: -25 to +70 °C

Why choose it

The handle's IP66 front protection ensures reliable operation even in dusty or wet environments. Its robust polycarbonate construction withstands harsh industrial conditions, while the clear ON/OFF indication minimizes the risk of misoperation. The ability to attach up to three padlocks makes it ideal for group lockout procedures, enhancing safety during maintenance.

Ideal use cases

• Industrial control panels requiring external breaker operation
• Machinery where lockout/tagout is mandatory during service
• Distribution boards in harsh environments needing IP66 protection
• Retrofitting existing NZM1 breakers with a secure rotary handle

Good to know

The handle requires an NZM-XTVD extension shaft (sold separately) for proper installation. It complies with IEC/EN 60947 standards, ensuring compatibility and safety in electrical installations.
