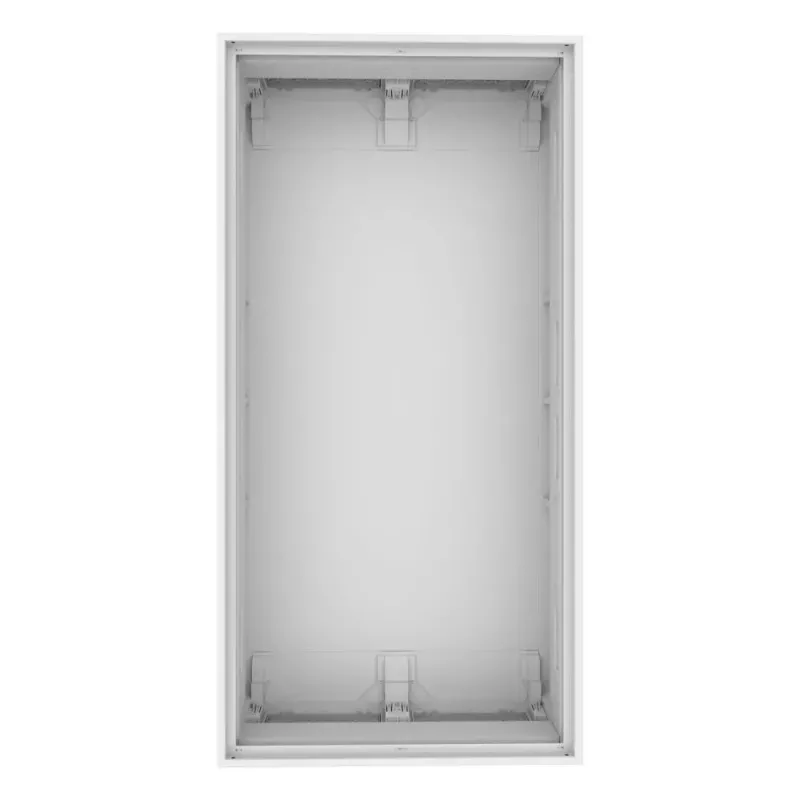

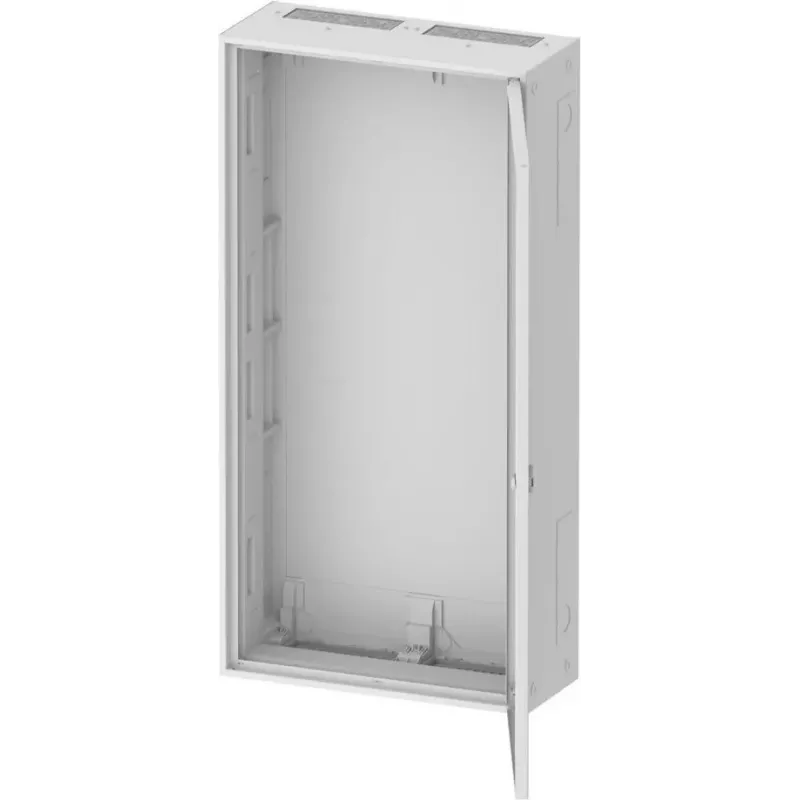

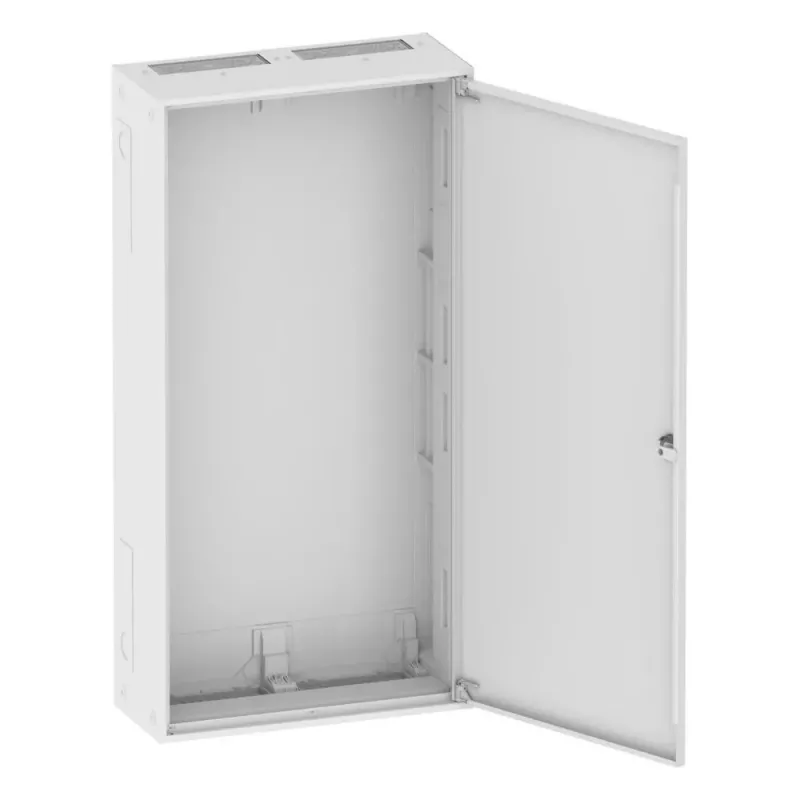

EATON ZSD-G27/31 lege behuizing 1100x550x225mm IP31 staalgrijs

When electrical components need a safe, organized home in an indoor industrial environment, the EATON ZSD-G27/31 empty enclosure provides a robust and spacious solution. This wall-mounted steel enclosure offers a protected space for distribution and control equipment, ensuring reliable operation while keeping wiring neatly contained. Its generous dimensions of 1100 mm height, 550 mm width, and 225 mm depth accommodate a wide range of components, from DIN rail modules to mounting plates.

Who is it for

This enclosure is ideal for electrical contractors, panel builders, and facility maintenance teams who require a durable, IP31-rated housing for indoor electrical distribution and control systems. It suits applications in commercial buildings, workshops, and industrial settings where protection from dust and dripping water is needed.

Main features

• Spacious interior: 1100 x 550 x 225 mm external dimensions provide ample room for components and wiring.
• IP31 protection: guards against solid objects over 2.5 mm and vertically falling water drops, suitable for indoor use.
• Robust steel construction: powder-coated sheet steel with RAL 7035 grey finish for durability and a professional look.
• Convenient access: single hinged door with quarter-turn lock for secure yet easy opening.
• Flexible mounting: supports installation of mounting plates and DIN rails for customized layouts.
• Cable entry provisions: top and bottom openings allow for neat cable routing.

Specifications

• Brand: EATON
• Model: ZSD-G27/31
• MPN: 219581
• EAN: 9004852787622
• Product type: Empty enclosure
• Series: ZSD
• External height: 1100 mm
• External width: 550 mm
• External depth: 225 mm
• Material: Sheet steel
• Surface finish: Powder-coated
• Colour: Grey (RAL 7035)
• Ingress protection: IP31
• Mounting type: Wall-mounted
• Door type: Single hinged door
• Lock type: Quarter-turn lock
• Number of doors: 1
• Protection class: Class I (earthed)
• Application: Indoor electrical distribution, control systems

Tips

For optimal performance, ensure the enclosure is mounted on a flat, stable wall surface capable of supporting its weight when fully equipped. Use appropriate cable glands or grommets at entry points to maintain the IP31 rating. When installing components, plan the internal layout to allow adequate airflow and future expansion. Regularly inspect the door seal and lock mechanism to ensure continued protection.
