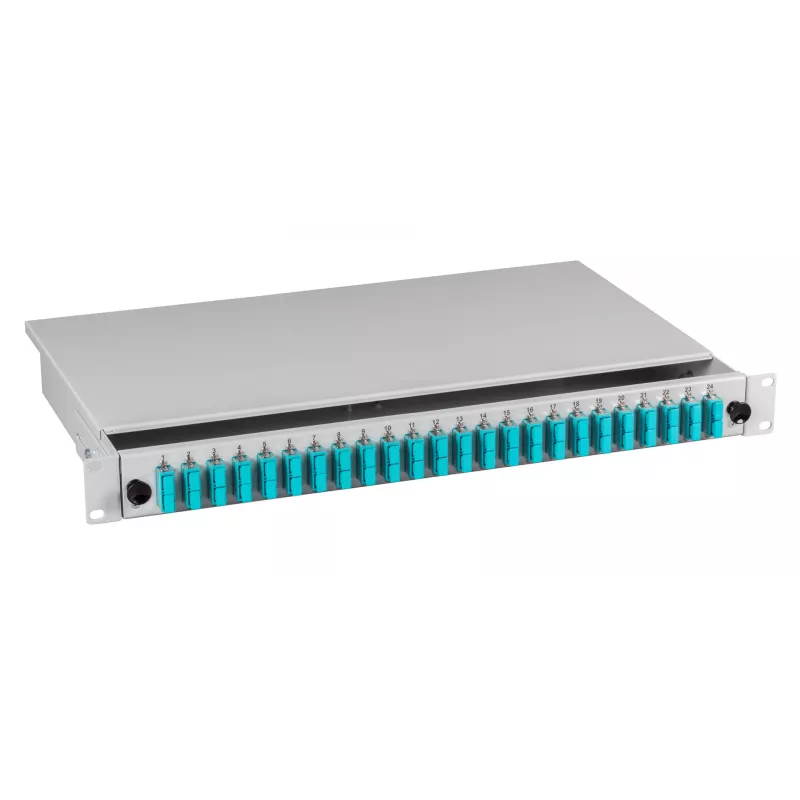

EFB Elektronik B70203-24OM4 lasbox SC/SC 24 pigtails/12 koppelingen OM4

The EFB Elektronik B70203-24OM4 is a high-quality fiber optic splice box designed for indoor wall mounting. It comes pre-equipped with 24 SC pigtails (OM4 multimode, 2m length) and 12 SC duplex couplings, providing a ready-to-use solution for fiber distribution and splicing. The robust steel housing with powder coating in light grey (RAL 7035) ensures durability and protection up to IP20. Ideal for data centers, telecom rooms, and LAN installations.

Advantages

Pre-terminated with 24 pigtails and 12 couplings saves installation time. OM4 multimode fiber supports high-bandwidth applications up to 100 Gbps. Compact wall-mount design with multiple cable entry ports for flexible routing. Includes splice holders, cable glands, and mounting hardware for easy deployment.

Suitable for

• Fiber optic distribution in data centers
• Telecommunication rooms and server rooms
• Local area network (LAN) backbone installations
• FTTH and enterprise network termination points

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Mode: Multimode OM4
• Pigtail Count: 24
• Pigtail Connector: SC
• Pigtail Fiber Length: 2 m
• Coupling Count: 12
• Coupling Type: SC Duplex
• Splice Capacity: 24
• Housing Material: Steel, powder-coated
• Colour: Light Grey (RAL 7035)
• Mounting: Wall Mount
• Protection Rating: IP20
• Operating Temperature: -10°C to +50°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use with OM4 patch cables and ensure proper cable management. Suitable for indoor environments only.
