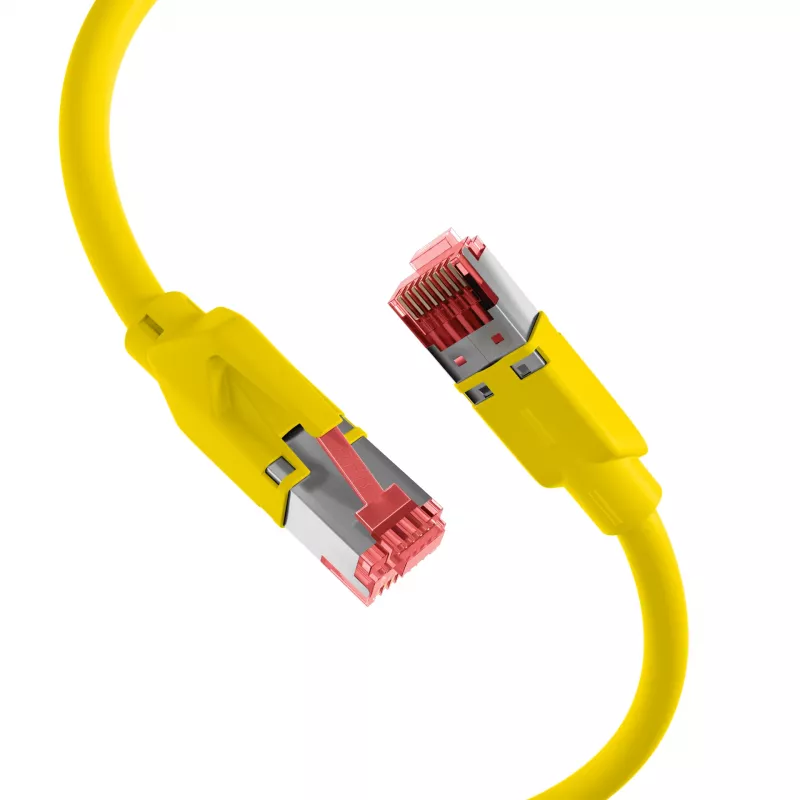

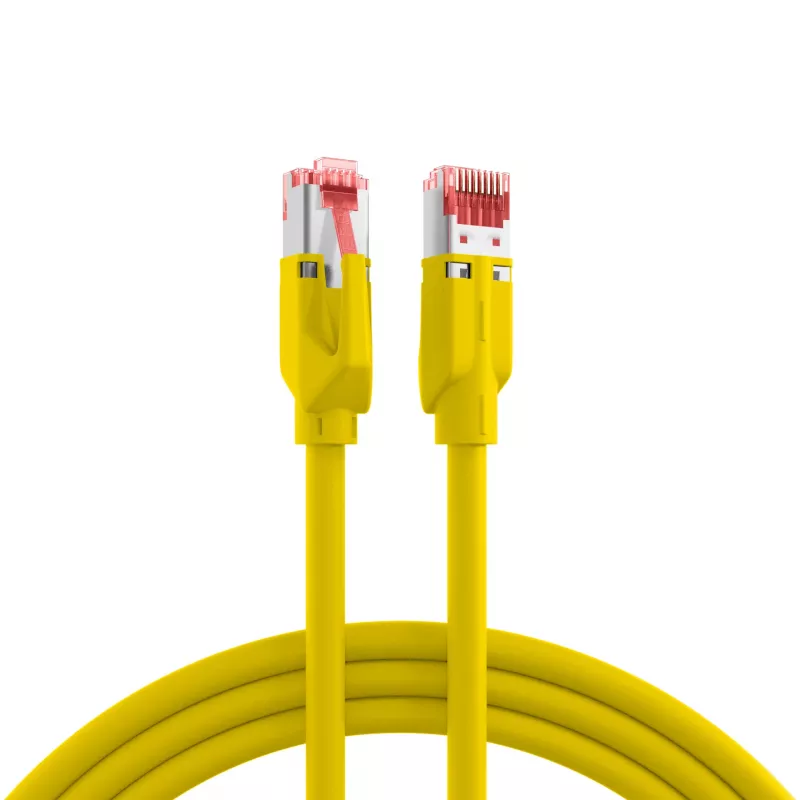

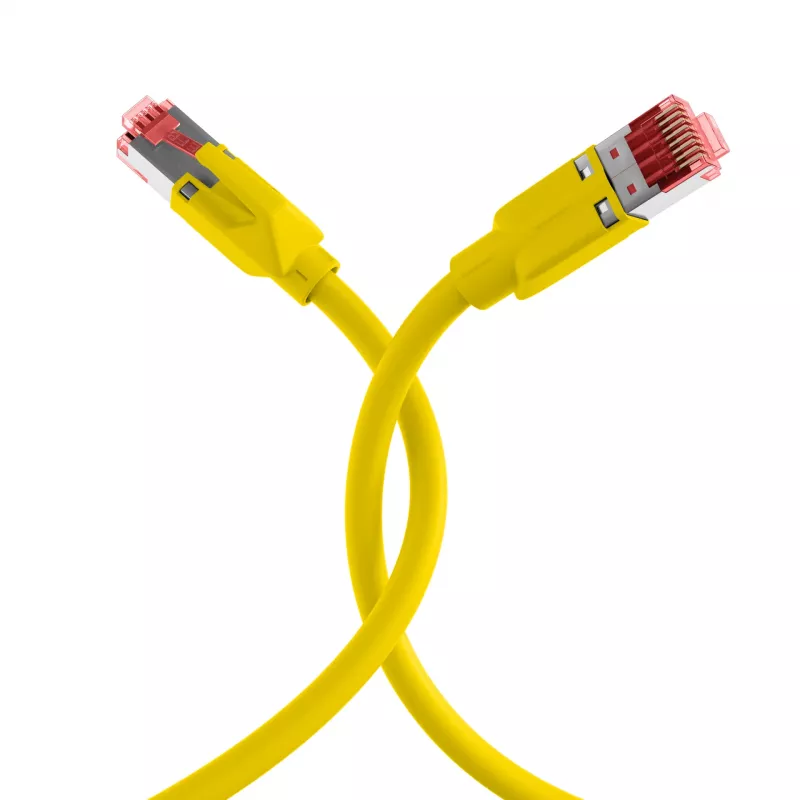

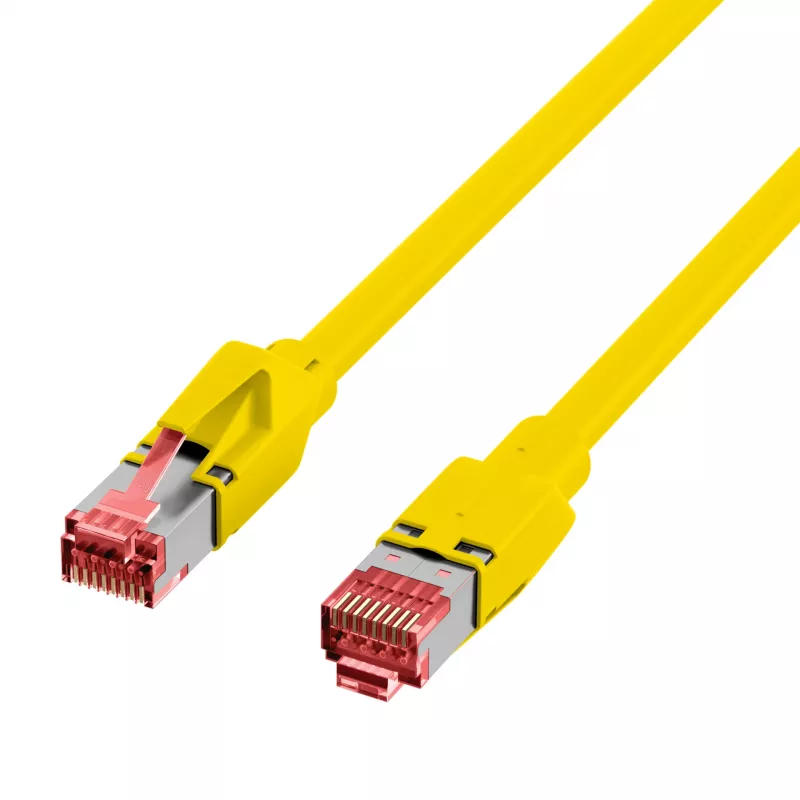

EFB Elektronik Cat.6A S/FTP LSZH RJ45 patchkabel, 50m, geel

High-speed data networks demand cabling that can handle 10 Gigabit Ethernet without signal degradation, especially over longer runs. This EFB Elektronik Cat.6A patch cable delivers exactly that, with a 50-meter length that suits structured cabling in offices, data centers, and industrial environments. The S/FTP shielding—each pair individually foiled plus an overall braid—virtually eliminates alien crosstalk, ensuring stable performance at up to 500 MHz. The LSZH jacket adds a critical safety layer: in the event of fire, it emits very low smoke and no toxic halogens, protecting people and equipment. The yellow color makes it easy to identify in dense cable trays.

Who is it for

Network administrators, system integrators, and IT professionals who need a reliable, long-distance Cat.6A connection for 10GBASE-T Ethernet, Power over Ethernet (PoE/PoE+), and high-bandwidth applications. It is also ideal for installers working in public buildings, transportation, or any environment where fire safety regulations require halogen-free cabling.

Main features

• Cat.6A performance: supports 10 Gigabit Ethernet up to 500 MHz bandwidth, compliant with ISO/IEC 11801 and TIA/EIA-568-C.2.
• S/FTP shielding: individual foil on each twisted pair plus overall braided screen for maximum immunity to EMI and alien crosstalk.
• LSZH jacket: low smoke zero halogen material, flame retardant per IEC 60332-1-2, for enhanced fire safety.
• Flexible stranded copper conductors: AWG 26/7, ideal for patch panel and equipment connections.
• Durable RJ45 male connectors on both ends, wired to TIA/EIA 568B standard.
• 50-meter length in high-visibility yellow for easy identification and organization.
• Internal cable type: Draka UC900 TM21, known for reliable performance.

Specifications

• Cable type: RJ45 patch cable, Cat.6A (Class EA)
• Shielding: S/FTP (PiMF)
• Jacket material: LSZH (halogen-free)
• Length: 50 m
• Color: Yellow
• Connectors: RJ45 male to RJ45 male
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Conductor: stranded copper, AWG 26/7
• Wiring standard: TIA/EIA 568B
• Flame retardancy: IEC 60332-1-2
• Applications: Ethernet, PoE/PoE+
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2

Tips

For best performance, avoid sharp bends and maintain the cable's minimum bend radius. Use cable management panels to reduce strain on connectors. When deploying PoE devices, ensure your switch supports the required power budget, as this cable is rated for PoE and PoE+ applications. The yellow jacket is perfect for color-coding network segments or marking uplinks.
