EFB Electronics lasbox LC 50/125µm OM2 uitschuifbaar 48 pigtails versprongen/24 koppelingen

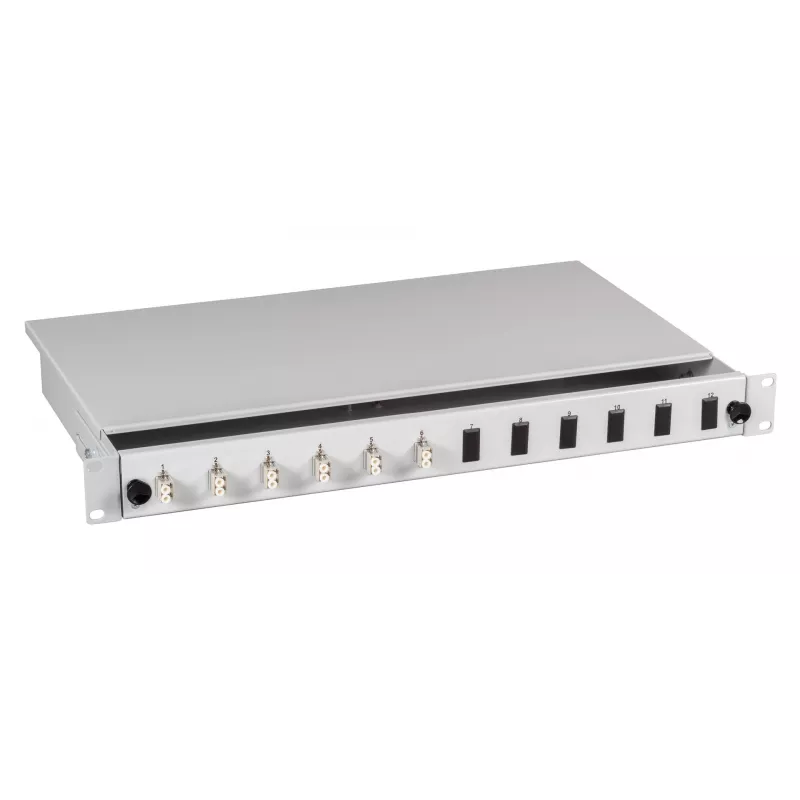

The EFB Electronics Splice Box LC 50/125µm OM2 is a high-quality, extendable rack-mount splice box designed for efficient fiber optic management in data centers, LAN, and telecommunications infrastructure. Pre-assembled with 48 LC pigtails (OM2 50/125µm) and 24 LC duplex adapters, this unit provides a ready-to-use solution for splicing and patching multimode fiber networks.

Advantages

Space-saving extendable drawer design allows easy access for maintenance and installation. Pre-terminated pigtails and adapters reduce installation time and ensure consistent performance. Robust steel housing provides durability and protection for sensitive fiber connections.

Suitable for

• Data center fiber distribution
• Local area network (LAN) backbone
• Telecommunications infrastructure
• FTTH and terminal box applications

Key specifications

• Product Type: Fiber Optic Splice Box / Patch Panel
• Mounting Type: Rack Mount (Extendable)
• Connector Type (Front): LC Duplex
• Fiber Type: Multimode (MM) OM2
• Fiber Core/Cladding Diameter: 50/125 µm
• Total Fiber Capacity: 48 Fibers
• Number of Pigtails Included: 48
• Pigtail Connector Type: LC
• Pigtail Fiber Type: OM2 50/125 µm
• Number of Adapters Included: 24
• Adapter Type: LC Duplex
• Design Feature: Extendable / Pull-out drawer
• Pre-assembled: Yes (with pigtails and adapters)
• Housing Material: Steel

Recommendations

For optimal performance, use with OM2 multimode patch cables and ensure proper cable management within the rack. This splice box is ideal for high-density fiber environments requiring reliable and organized splicing.
