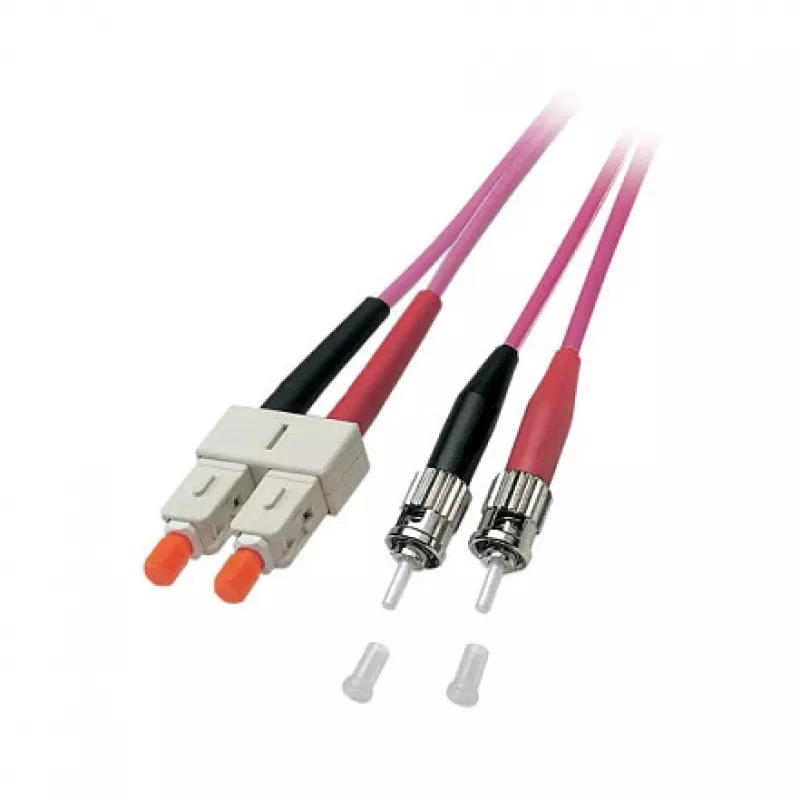

EFB-Elektronik duplex jumper SC-ST 50/125 µm, OM4, LSZH, Erika Violet, 3,0 mm, 3 m

The EFB-Elektronik Duplex Jumper SC-ST is a high-performance fiber optic patch cable designed for demanding network environments. With OM4 multimode fiber, it supports high-speed data transmission over short to medium distances, making it ideal for data centers, enterprise networks, and telecommunications infrastructure.

Advantages

This cable offers low insertion loss and high return loss, ensuring reliable signal integrity. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in confined spaces by reducing toxic fumes and smoke in case of fire. The duplex configuration allows for simultaneous bidirectional communication, and the 3.0 mm diameter ensures flexibility and durability.

Suitable for

• Data center interconnects
• Server room cabling
• Fiber-to-the-desk applications
• Telecommunications networks
• High-speed Ethernet (10 Gbps, 40 Gbps, 100 Gbps)

Key specifications

• Connector Type A: SC
• Connector Type B: ST
• Fiber Mode: Multimode
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Fiber Category: OM4
• Jacket Material: LSZH
• Jacket Color: Erika Violet
• Cable Diameter: 3.0 mm
• Cable Length: 3 m
• Attenuation at 850 nm: ≤ 3.0 dB/km
• Attenuation at 1300 nm: ≤ 1.0 dB/km
• Modal Bandwidth at 850 nm: 4700 MHz·km
• Modal Bandwidth at 1300 nm: 500 MHz·km
• Insertion Loss (Typical): ≤ 0.3 dB
• Return Loss (Typical): ≥ 30 dB
• Operating Temperature: -20°C to +70°C
• Standards: IEC 60793-2-10 Type A1a.3, TIA/EIA-492AAAD, RoHS

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard SC and ST ports. Pair with OM4-rated patch panels and transceivers for best results.
