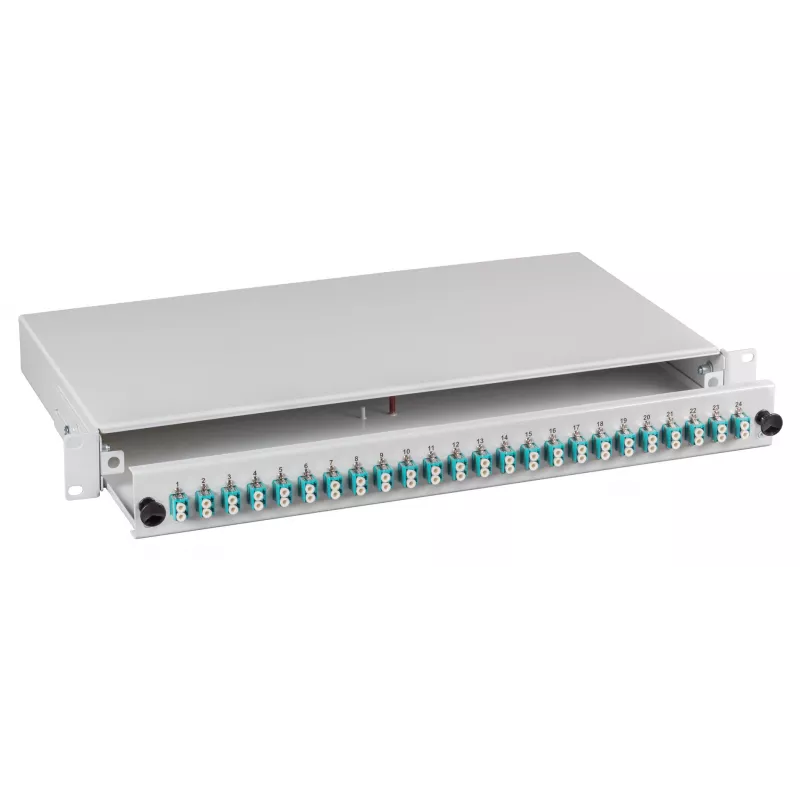

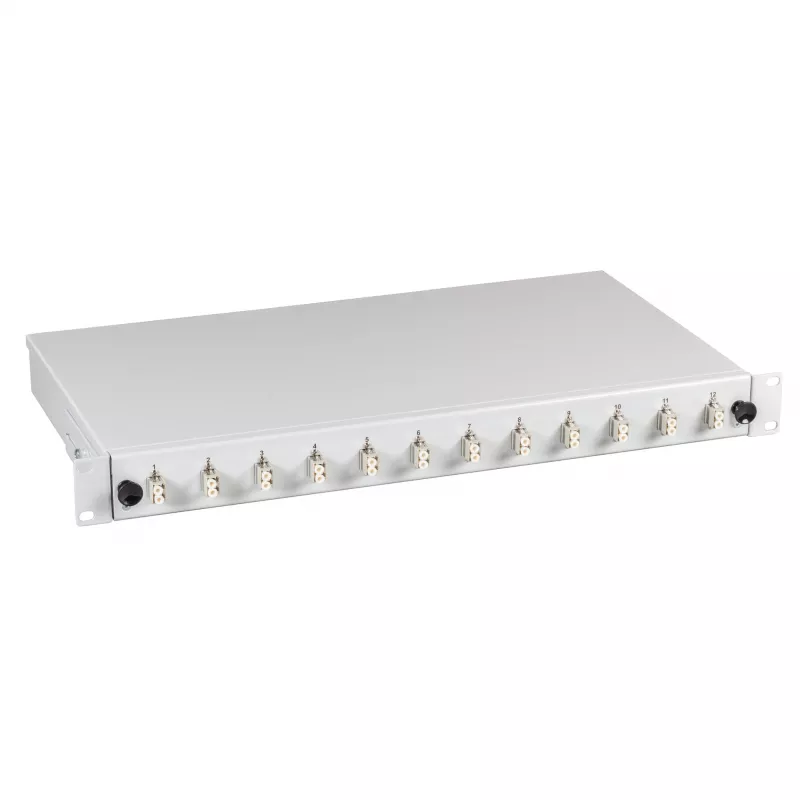

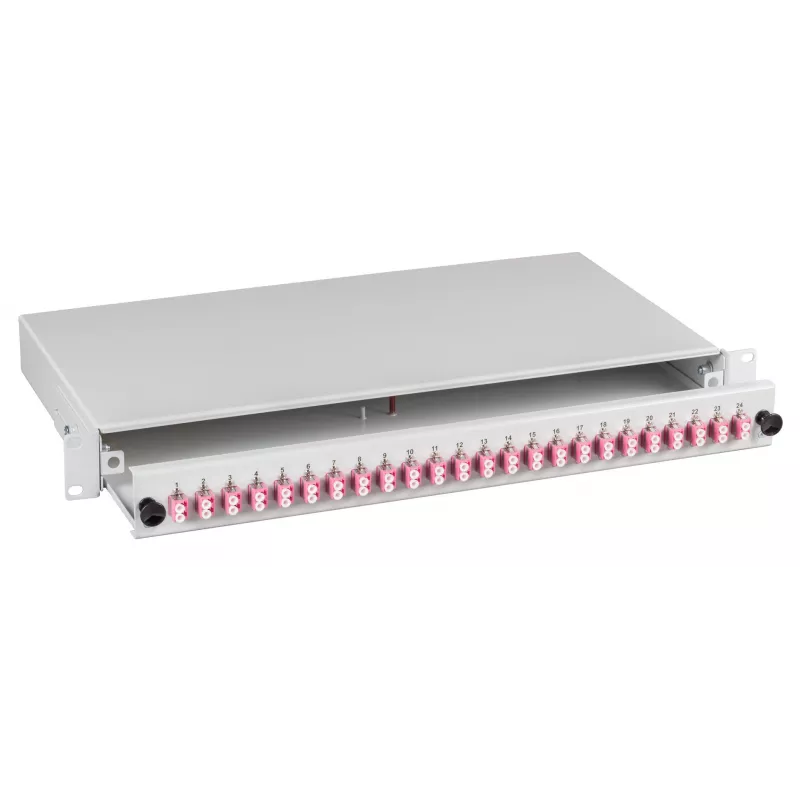

EFB lasbox LC 9/125µm OS2 lade 1U 48 pigtails voorgemonteerd 24 duplex-koppelingen

The EFB Splice Box BA71921.48 is a professional-grade fiber optic splice box designed for 19-inch rack mounting. It features a sliding drawer design for easy access and maintenance, and is pre-terminated with 48 LC pigtails (OS2 9/125µm) and 24 LC duplex couplers, providing a total fiber capacity of 48 fibers. Ideal for data centers, telecommunications, and LAN applications.

Advantages

Space-saving 1U form factor with sliding drawer for convenient cable management and splicing. Pre-terminated pigtails reduce installation time and ensure consistent performance. High-density design supports up to 48 fibers in a single rack unit.

Suitable for

• Data center fiber distribution
• Telecommunications network infrastructure
• Local area network (LAN) backbone
• FTTH and enterprise cabling

Key specifications

• Product Type: Fiber Optic Splice Box
• Form Factor: 19-inch Rack Mount, 1U
• Design: Sliding Drawer
• Fiber Mode: Single-mode OS2
• Core/Cladding: 9/125 µm
• Front Connector: LC Duplex, 24 ports
• Pigtails: 48 x LC, OS2, pre-terminated
• Couplers: 24 x LC Duplex included
• Material: Steel
• Colour: Grey (typical)

Recommendations

For optimal performance, use with OS2 single-mode patch cables and ensure proper cleaning of connectors before installation. This splice box is compatible with standard 19-inch racks and provides reliable fiber management for high-density environments.
