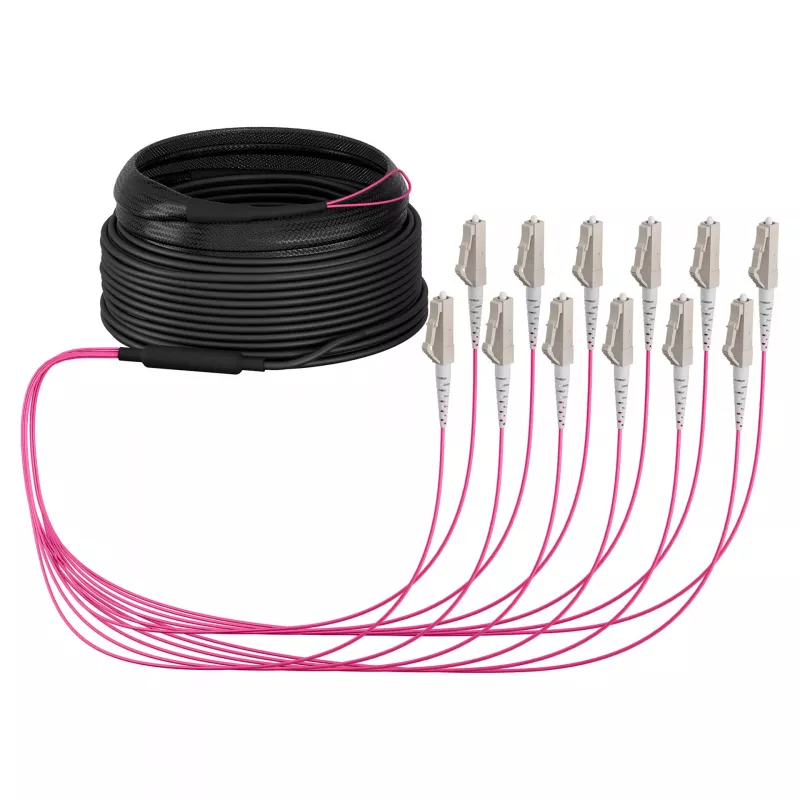

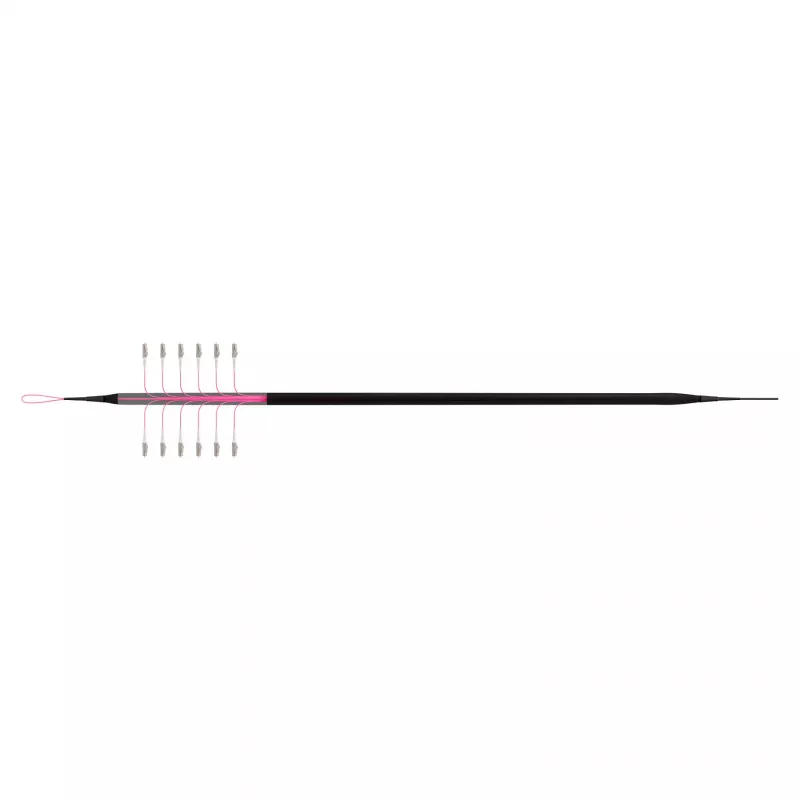

EFB trunkkabel U-DQ(ZN)BH OM4 12G (1x12) LC-LC 40m Dca LSZH

The EFB Trunkkabel U-DQ(ZN)BH OM4 12G is a high-performance fiber optic trunk cable designed for demanding data center and enterprise network environments. With 12 multimode OM4 fibers, duplex LC connectors on both ends, and a length of 40 meters, this cable provides reliable, high-speed connectivity for up to 100 Gigabit Ethernet applications. The LSZH (Low Smoke Zero Halogen) jacket and CPR Dca fire rating ensure safety and compliance in plenum and riser installations.

Advantages

This trunk cable offers exceptional bandwidth and low attenuation, supporting 850 nm and 1300 nm wavelengths with a bandwidth of 4700 MHz-km at 850 nm. The 1x12 breakout configuration simplifies installation and management, while the robust U-DQ ZN BH construction ensures durability and signal integrity. The LSZH jacket reduces toxic smoke in case of fire, making it ideal for indoor use.

Suitable for

• Data center backbone cabling
• Enterprise network infrastructure
• LAN and SAN connectivity
• High-speed 100 Gigabit Ethernet links

Key specifications

• Cable Type: Fiber Optic Trunk Cable
• Fiber Mode: Multimode OM4
• Number of Fibers: 12

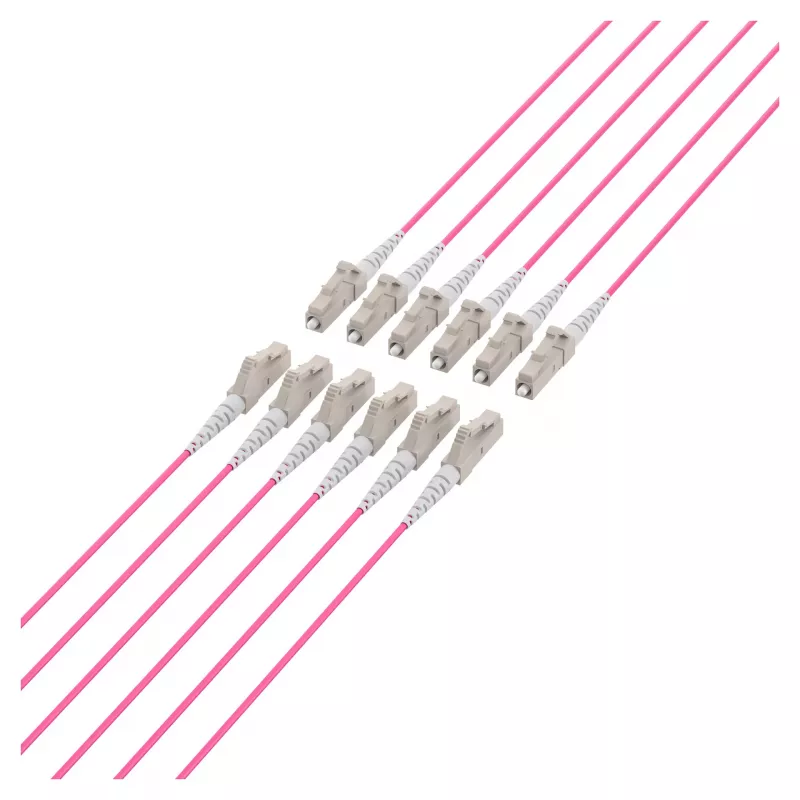

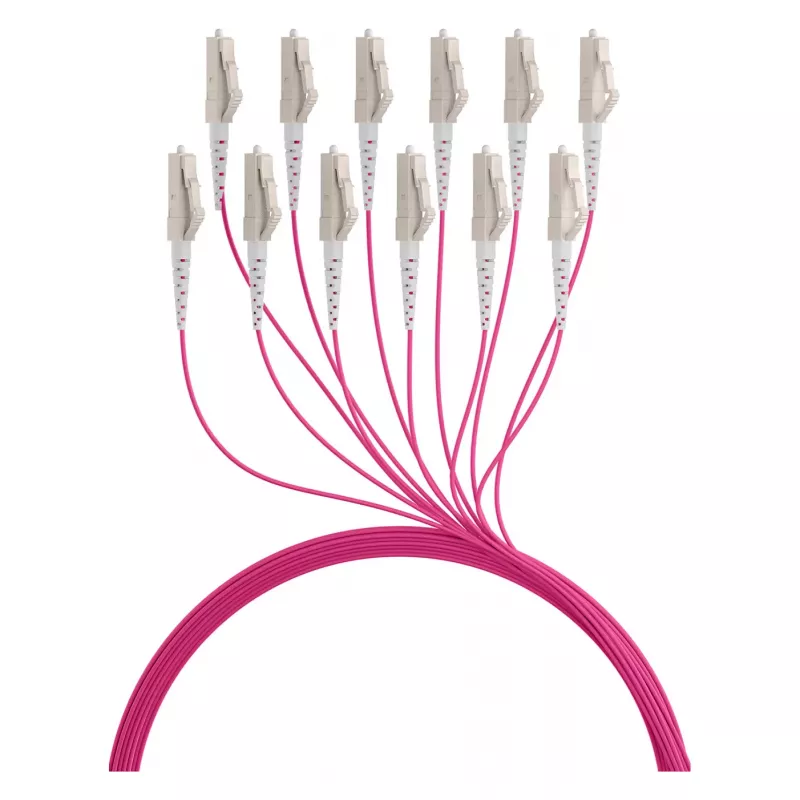

• Connector Type: Duplex LC (both ends)
• Cable Length: 40 m
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• CPR Fire Rating: Dca
• Fiber Core/Cladding Diameter: 50/125 µm
• Wavelength Support: 850 nm / 1300 nm
• Bandwidth (850nm): 4700 MHz-km
• Data Rate Support: Up to 100 Gigabit Ethernet
• Standards Compliance: TIA/EIA-568-C.3, IEC 60794-2
• Environmental Compliance: RoHS

Recommendations

For optimal performance, pair this trunk cable with OM4-rated patch panels and connectors. Ensure proper cable management to maintain bend radius and avoid signal loss. Ideal for structured cabling systems requiring high-density fiber connectivity.
