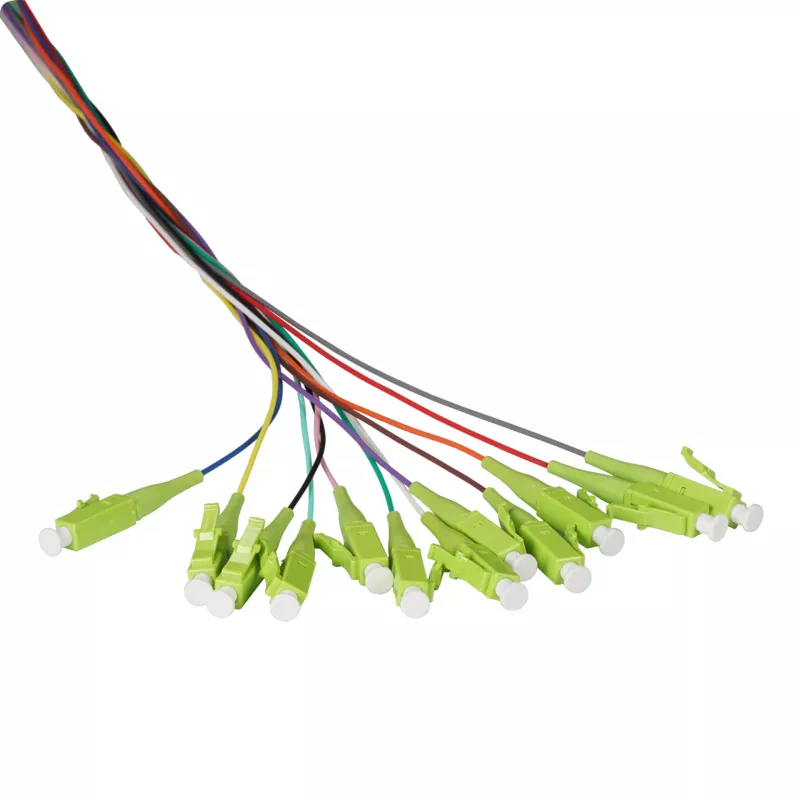

EFB Elektronik glasvezel-pigtail LC 50/125 OM5 12-kleurenset 2 m

The EFB Elektronik Fibre Pigtail LC 50/125 OM5 12-Colour Set is a high-quality fiber optic pigtail set designed for reliable and high-performance network connections. This set includes 12 individually colored pigtails, each 2 meters long, with LC simplex connectors and UPC polish. The fibers are OM5 grade, supporting wideband multimode transmission for high-speed data networks, data centers, SAN, LAN, and FTTx applications.

Advantages

OM5 fiber provides enhanced bandwidth over traditional OM3/OM4, supporting multiple wavelengths for future-proof network infrastructure. The 12-color coding per TIA-598-C ensures easy identification and organization. LSZH jacket material offers low smoke and zero halogen for safety in enclosed spaces. Low insertion loss and high return loss ensure signal integrity.

Suitable for

• High-speed data networks
• Data centers
• Storage Area Networks (SAN)
• Local Area Networks (LAN)
• FTTx deployments

Key specifications

• Product Type: Fiber Optic Pigtail Set
• Fiber Type: Multimode (MM)
• Fiber Grade: OM5
• Core/Cladding: 50/125 µm
• Connector: LC Simplex, UPC polish
• Number of Fibers: 12
• Cable Length: 2 m
• Color Coding: TIA-598-C 12-color sequence
• Buffer Diameter: 0.9 mm
• Jacket Material: LSZH
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Operating Wavelengths: 850 nm, 953 nm, 1300 nm
• Bandwidth @850nm: 4700 MHz·km
• Bandwidth @953nm: 2470 MHz·km
• Bandwidth @1300nm: 500 MHz·km
• Fiber Standard: IEC 60793-2-10 Type A1a.4
• Compliance: RoHS, REACH

Recommendations

This pigtail set is ideal for network professionals requiring high-bandwidth, low-loss connections in data centers and enterprise networks. Ensure proper handling and installation to maintain performance.
