EFB Elektronik lasbox SC/SC 50/125 met 48 pigtails/24 koppelingen OM3

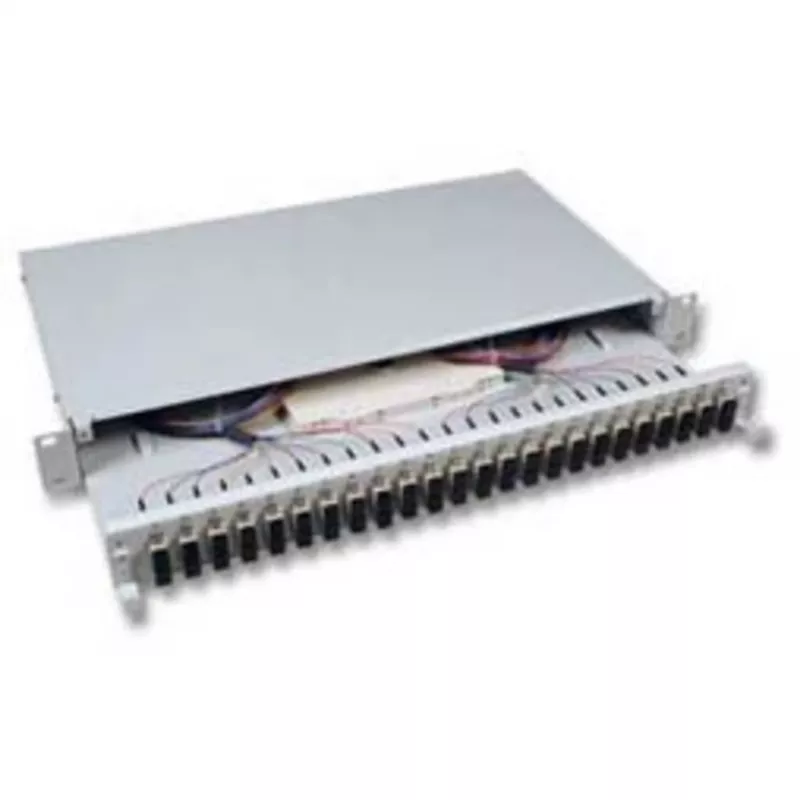

The EFB Elektronik Splice Box SC/SC 50/125 with 48 Pigtails/24 Couplings OM3 is a high-quality fiber optic distribution solution designed for indoor use. This wall-mountable splice box provides reliable and organized fiber management for multimode OM3 networks.

Advantages

Pre-terminated with 48 SC pigtails and 24 SC couplings, this splice box saves installation time and ensures low insertion loss. The powder-coated steel housing offers durability and protection for sensitive fiber connections.

Suitable for

• Data centers and server rooms requiring high-density fiber distribution
• Telecommunications networks for efficient fiber splicing and patching
• LAN and enterprise networks using OM3 multimode fiber

Key specifications

• Product Type: Fiber Optic Splice Box
• Fiber Type: Multimode OM3 (Laser-Optimized)
• Core/Cladding Diameter: 50/125 µm
• Connector Type (Pigtails): SC
• Connector Type (Couplings): SC
• Number of Pigtails: 48
• Number of Couplings: 24
• Pigtail Length: 2 m
• Pigtail Jacket Color: Aqua
• Housing Material: Powder-coated Steel
• Housing Color: Light Grey (RAL 7035)
• Mounting: Wall Mountable
• Application: Indoor
• Insertion Loss: < 0.3 dB (typical)
• Return Loss: > 30 dB (typical)
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use with OM3 patch cables and ensure proper cable management within the splice box. This product is ideal for structured cabling installations requiring high-density fiber termination.
