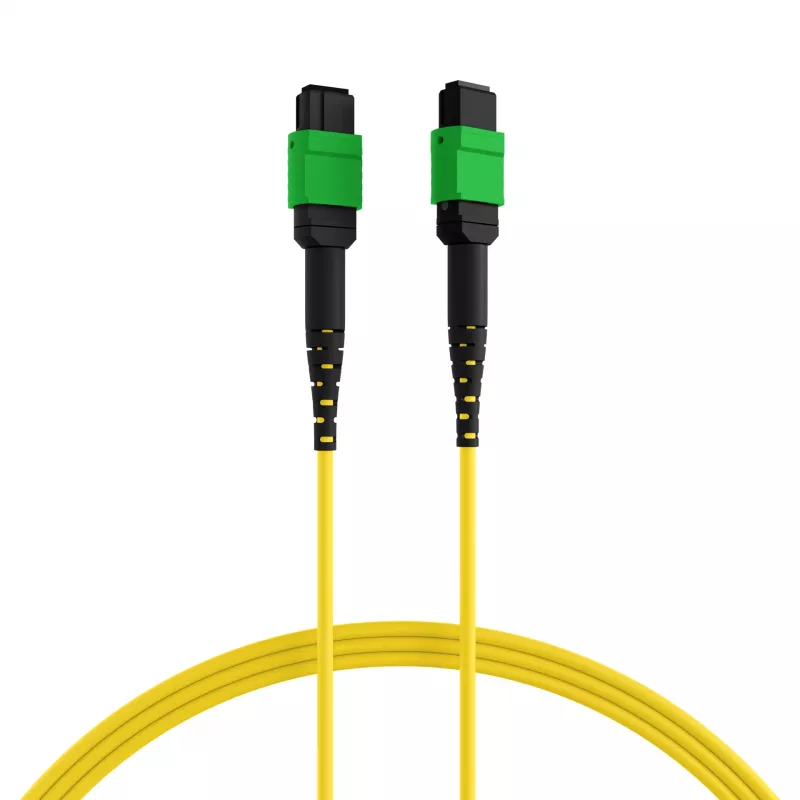

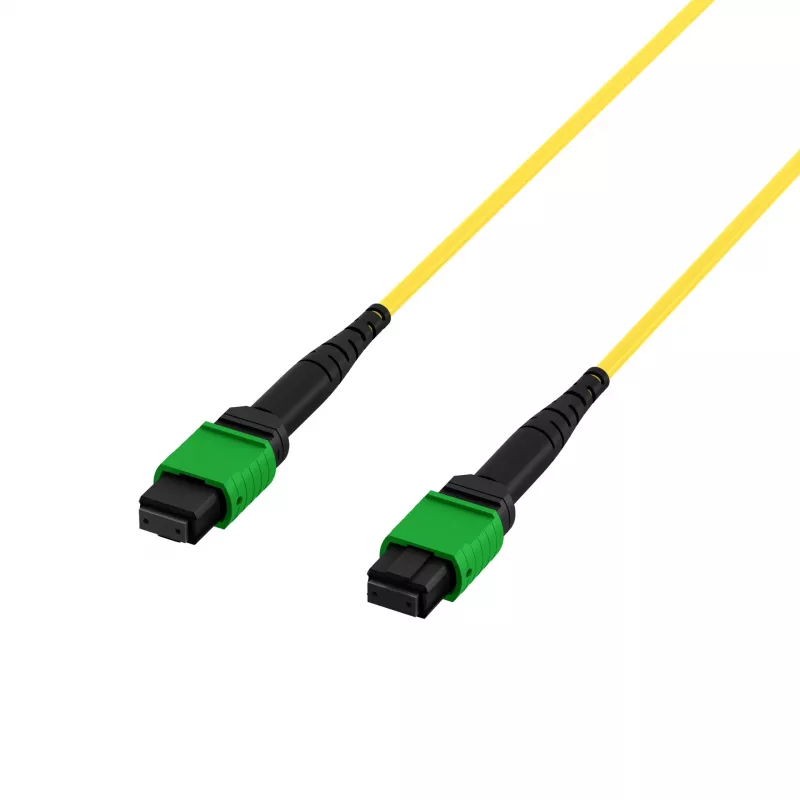

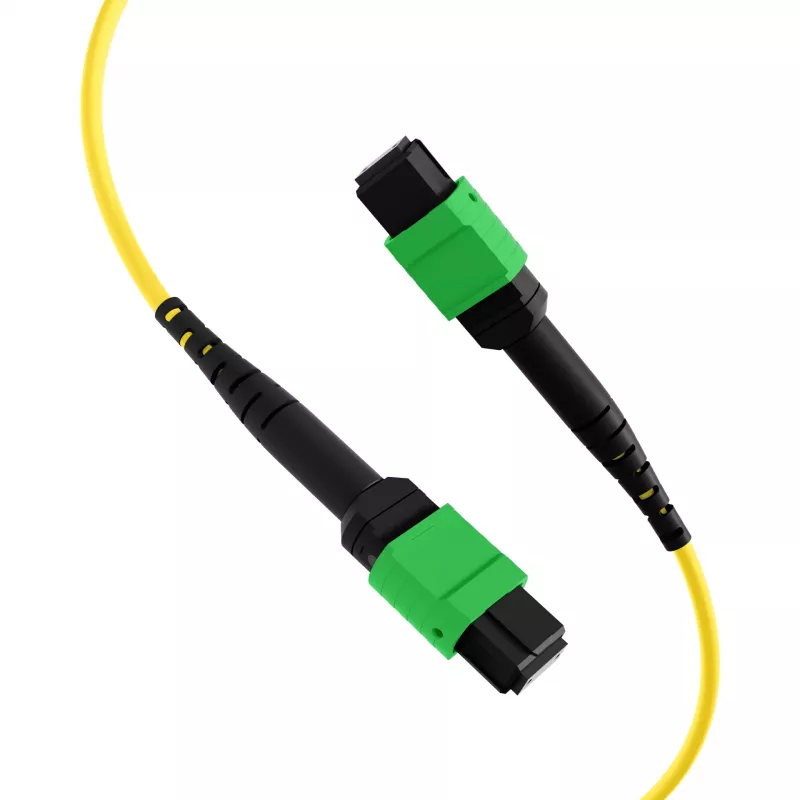

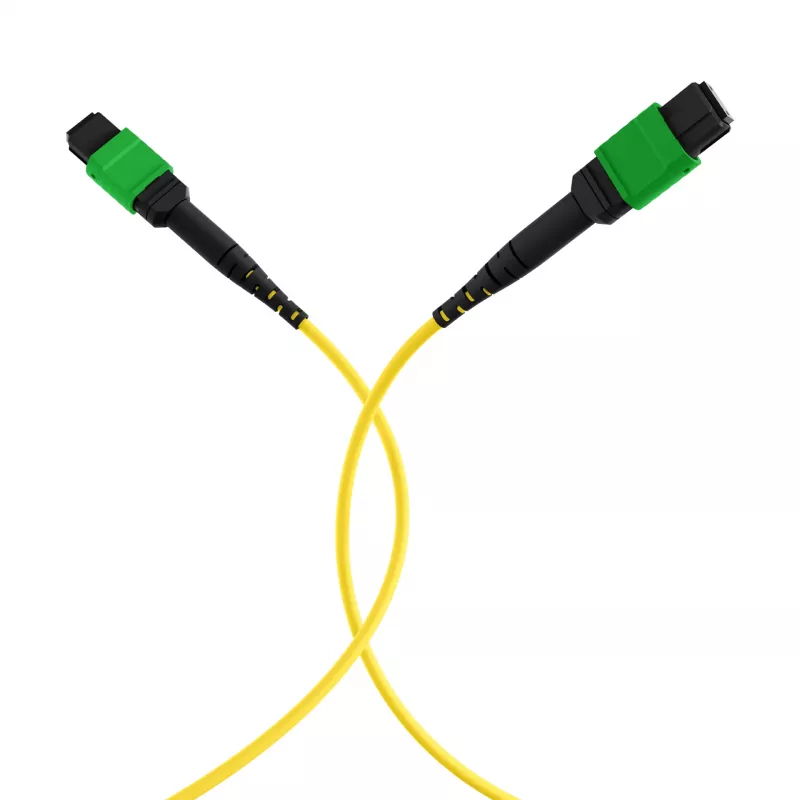

EFB ELEKTRONIK MPO-PLUS/APC(F)-MPO-PLUS/APC(F) patchkabel OS2 12 vezels type B LSZH geel 5m

The EFB ELEKTRONIK MPO-PLUS/APC(F)-MPO-PLUS/APC(F) Patch Cable is a high-performance fiber optic patch cable designed for demanding data center and telecommunications applications. With 12 single-mode OS2 fibers, MPO-PLUS APC female connectors on both ends, and Type B polarity, this cable ensures reliable, low-loss connections for high-density network cabling. The LSZH (Low Smoke Zero Halogen) jacket in yellow provides safety and easy identification.

Advantages

This patch cable offers exceptional optical performance with typical insertion loss ≤0.35 dB and return loss ≥60 dB, ensuring minimal signal degradation. The MPO-PLUS connectors feature zirconia ceramic ferrules for precise alignment and durability. The LSZH jacket reduces toxic smoke and halogen emissions in case of fire, making it ideal for indoor installations. The 5-meter length provides flexibility in rack and cabinet setups.

Suitable for

• Data centers requiring high-density fiber cabling
• Telecommunications networks
• High-speed backbone connections
• Fiber-to-the-x (FTTx) applications
• Any environment where low smoke and halogen-free cabling is required

Key specifications

• Cable Type: Fiber Optic Patch Cable
• Fiber Type: Single-mode OS2
• Fiber Count: 12 Fibers
• Connector A: MPO-PLUS APC Female
• Connector B: MPO-PLUS APC Female
• Polarity: Type B (Cross-over)
• Cable Length: 5 meters
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Yellow
• Insertion Loss (typical): ≤ 0.35 dB
• Return Loss (typical): ≥ 60 dB
• Wavelengths Supported: 1310nm, 1550nm
• Attenuation @ 1310nm: ≤ 0.3 dB/km
• Attenuation @ 1550nm: ≤ 0.2 dB/km
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, REACH, IEC 61754-7, TIA/EIA-604-5

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate cable management to avoid bending beyond the minimum bend radius. This cable is compatible with standard MPO adapters and equipment.
