MPO-PLUS/APC(M)-LC fanout-kabel OS2 12 vezels type B LSZH geel 0,4 m MPOM12LCOS2-0,4

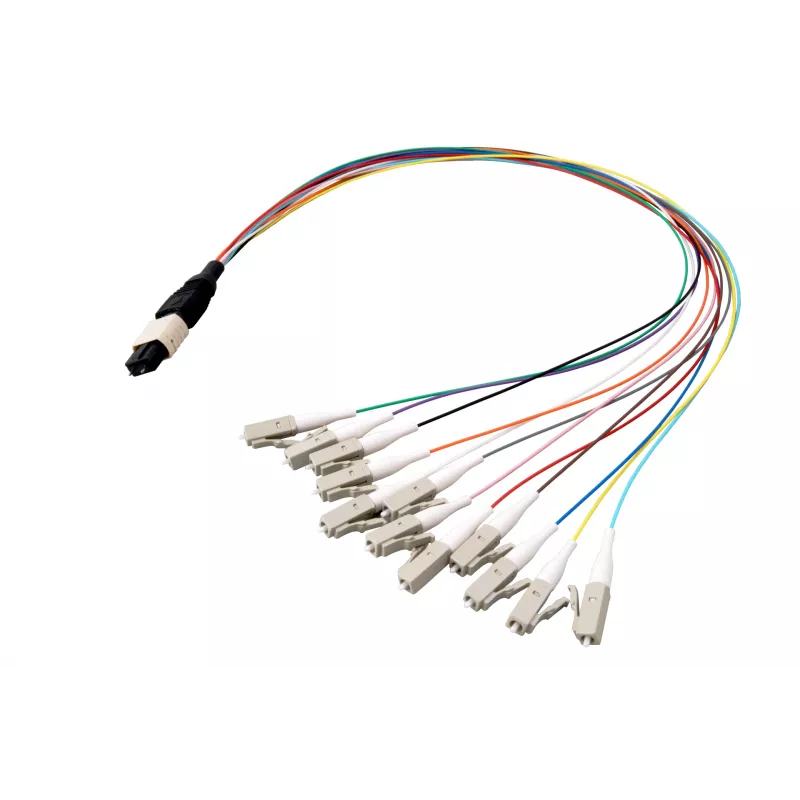

This fanout cable provides a high-density connection between a 12-fiber MPO-PLUS/APC male connector and twelve individual LC/UPC connectors. It is ideal for data center, SAN, LAN, and telecommunications applications requiring reliable single-mode OS2 performance in a compact 0.4 m length.

Advantages

Low insertion loss (≤0.35 dB MPO, ≤0.25 dB LC) and high return loss (≥60 dB MPO/APC, ≥50 dB LC) ensure excellent signal integrity. The LSZH yellow jacket offers safety in fire-sensitive environments, and Type B polarity simplifies installation in parallel optics systems.

Suitable for

• High-density fiber patching in data centers
• Breakout from MPO trunks to LC equipment
• Single-mode OS2 networks up to 10 km

Key specifications

• Connector A: MPO-PLUS/APC (Male)
• Connector B: 12x LC/UPC
• Fiber type: OS2 single-mode 9/125 µm
• Length: 0.4 m
• Polarity: Type B
• Jacket: LSZH, yellow
• Insertion loss: ≤0.35 dB (MPO), ≤0.25 dB (LC)
• Return loss: ≥60 dB (MPO/APC), ≥50 dB (LC)
• Operating temperature: -20°C to +70°C

Recommendations

For best performance, ensure proper cleaning of MPO and LC connectors before mating. Use with compatible MPO-PLUS/APC adapters and LC/UPC ports.
