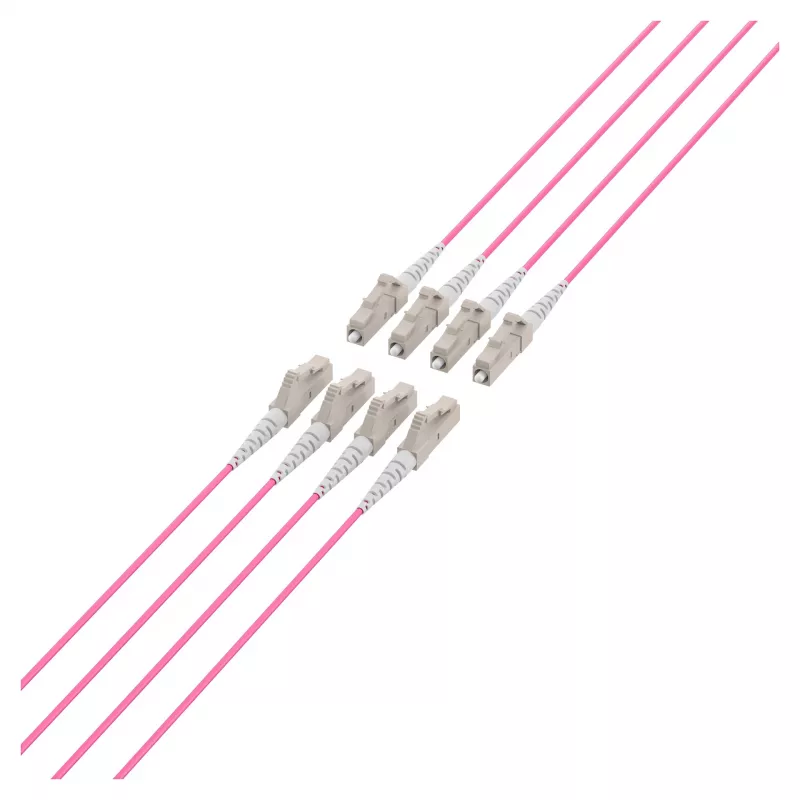

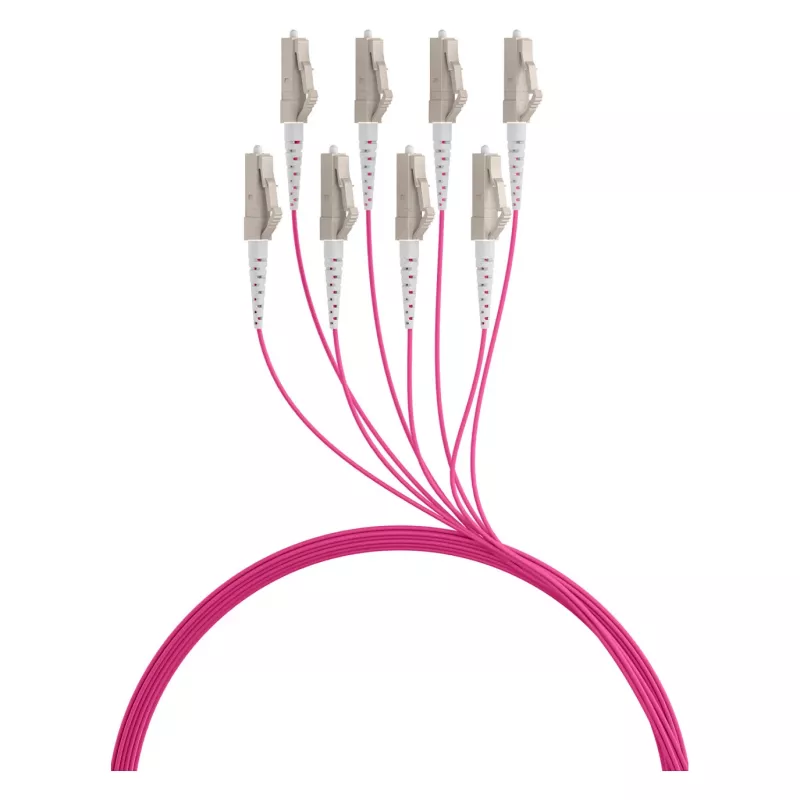

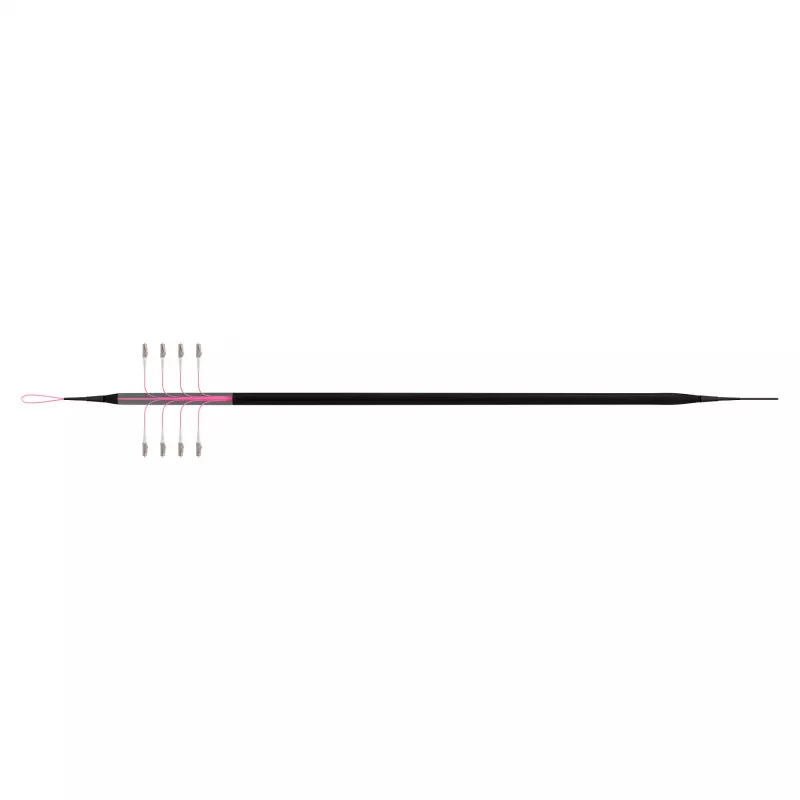

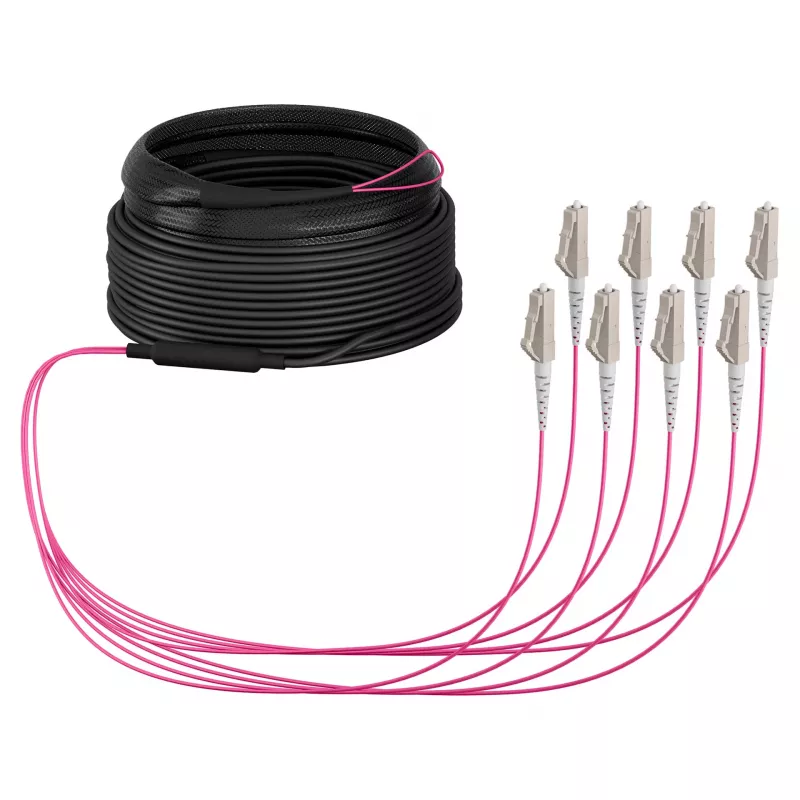

EFB Elektronik Trunk Cable U-DQ(ZN)BH OM4 8G (1x8) LC-LC 20m Dca LSZH

The EFB Elektronik Trunk Cable O8322S20OM4 is a high-performance fiber optic trunk cable designed for demanding data center, SAN, and LAN backbone applications. With 8 multimode OM4 fibers in a 1x8 configuration, this cable delivers exceptional bandwidth and supports data rates up to 100 Gbps. The LC duplex connectors on both ends ensure reliable, low-loss connections.

Advantages

This trunk cable offers superior performance with low insertion loss (<0.3 dB per connector pair) and high return loss (>30 dB). The LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces, while the Dca-s2, d2, a1 CPR fire rating ensures compliance with European building regulations. The aqua color jacket provides easy identification for OM4 fiber.

Suitable for

• Data center interconnects
• Storage Area Networks (SAN)
• LAN backbone cabling
• Enterprise network infrastructure
• High-speed 100 Gbps applications

Key specifications

• Cable type: Fiber Optic Trunk Cable
• Fiber type: Multimode OM4
• Number of fibers: 8 (1x8 arrangement)

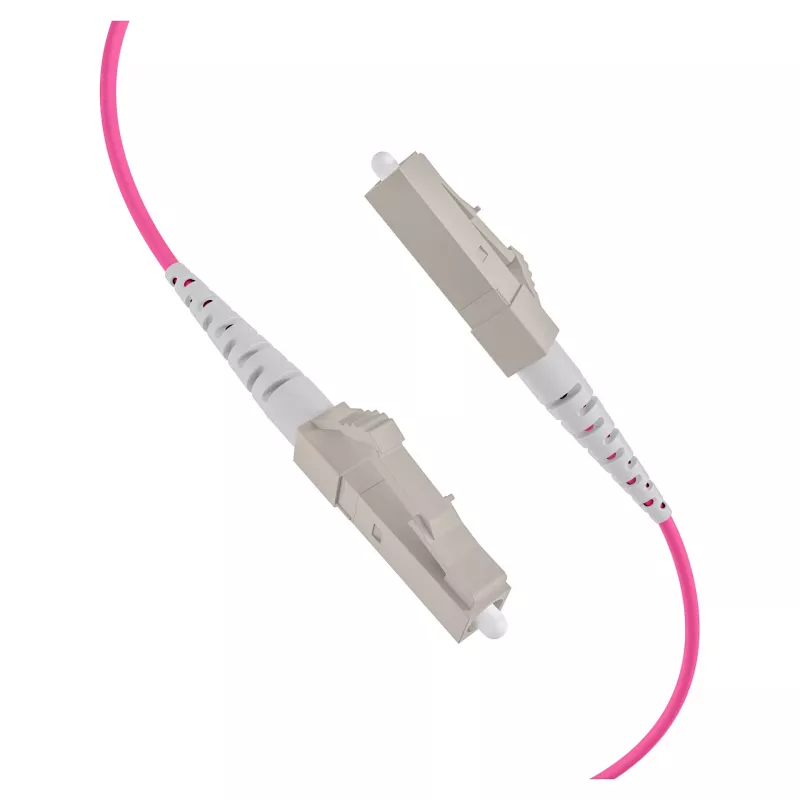

• Connectors: LC Duplex on both ends
• Cable length: 20 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• CPR fire rating: Dca-s2, d2, a1
• Core/cladding diameter: 50/125 µm
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Operating temperature: -20°C to +70°C

Recommendations

For optimal performance, ensure proper cable management and avoid sharp bends. This cable is ideal for structured cabling systems requiring high-density fiber connectivity.
