EFB Elektronik trunkkabel U-DQ ZN BH OS2 4E 1x4 LC-LC 60m Dca LSZH G675A1 - 60 m O8303S60OS2

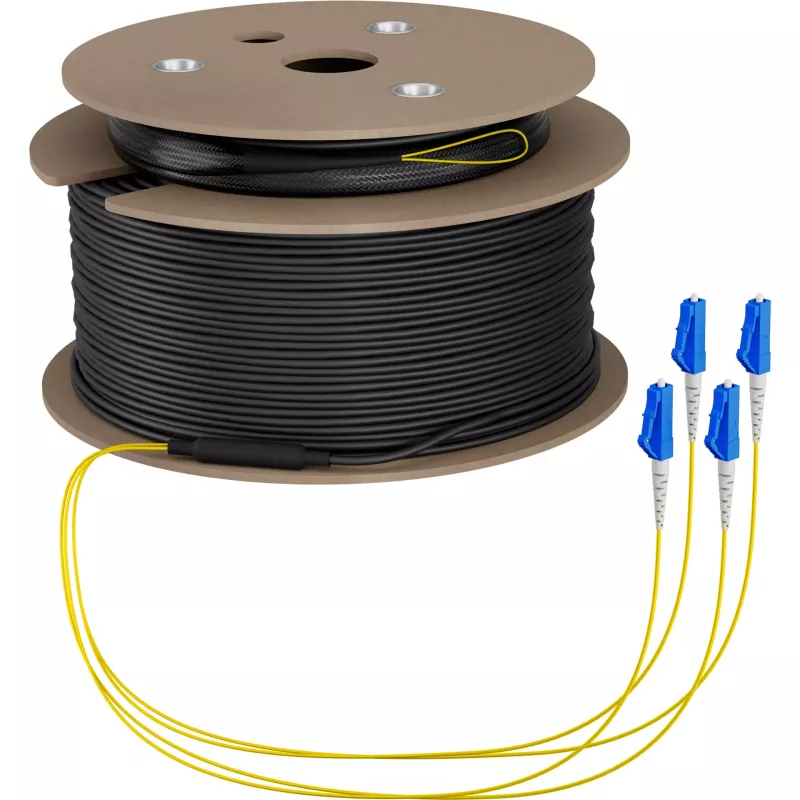

Single-mode OS2 fiber optic trunk cable with 4 fibers, terminated with LC connectors on both ends. 60 m length, LSZH yellow jacket, Dca CPR rating.

Overview

The EFB Elektronik Trunk Cable U-DQ ZN BH OS2 4E 1x4 LC-LC 60m Dca LSZH G675A1 is a 60-meter single-mode fiber optic trunk cable featuring 4 OS2 fibers (ITU-T G.657.A1) with LC connectors on both ends. The cable has a yellow LSZH (Low Smoke Zero Halogen) outer sheath and meets CPR fire classification Dca. Its construction is U-DQ ZN BH (Universal Distribution, Dry, Central Loose Tube, Halogen-free).

What stands out

• 4 single-mode OS2 fibers (9/125 µm core/cladding)

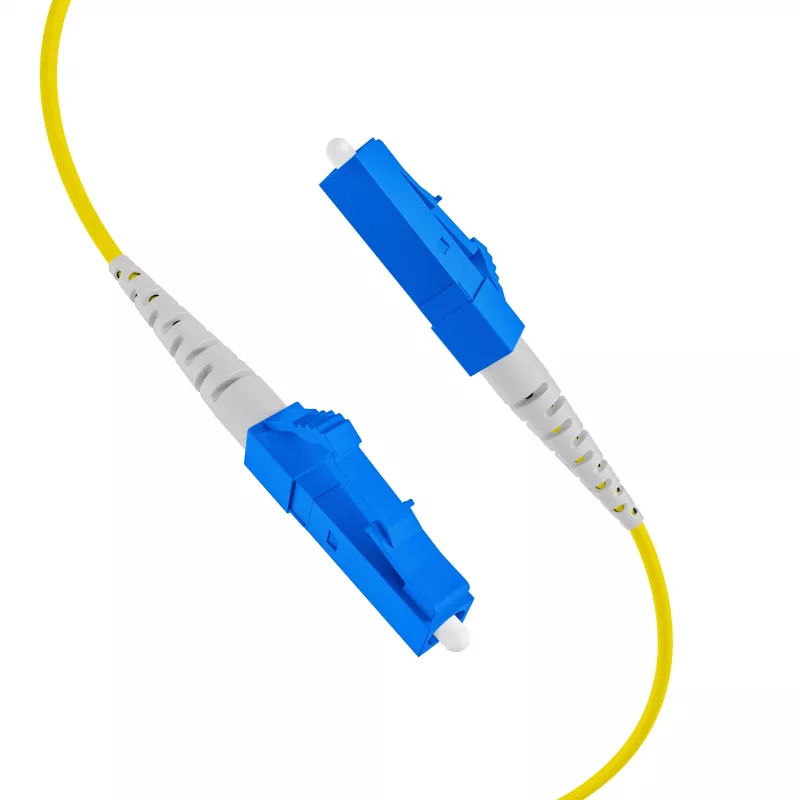

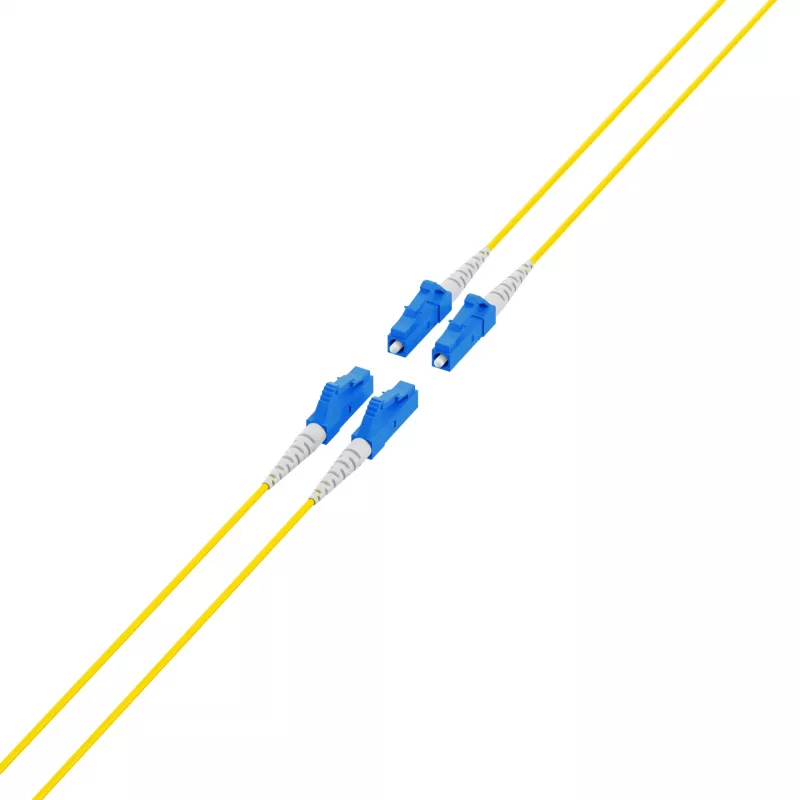

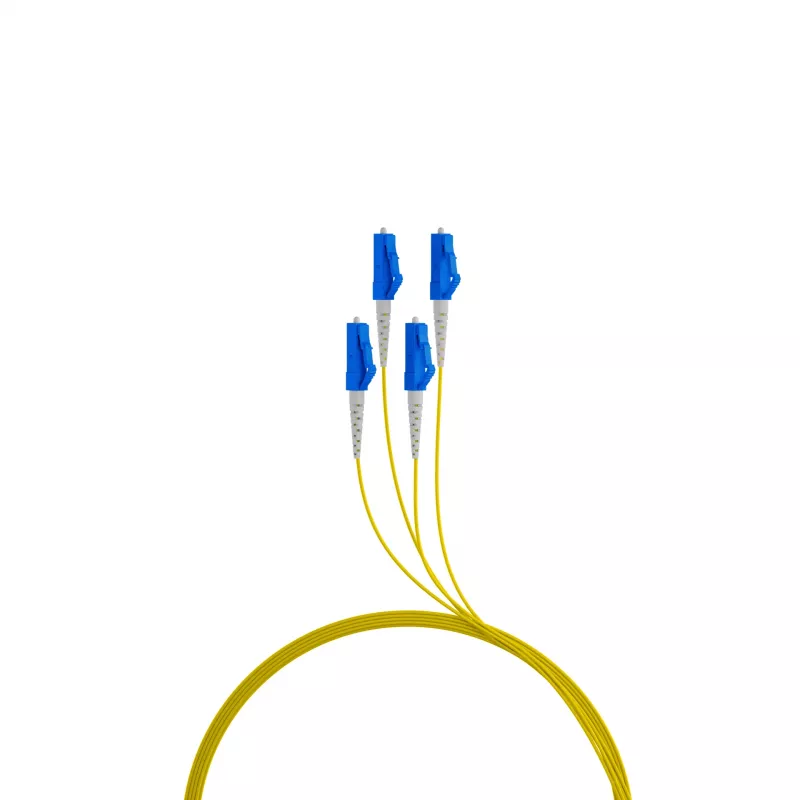

• LC connectors on both ends
• 60 m length
• LSZH yellow jacket, Dca CPR rating
• Attenuation: ≤0.35 dB/km at 1310 nm, ≤0.22 dB/km at 1550 nm
• Minimum bend radius: 10 mm (static)

Technical details

• Fiber Mode: Single-mode
• Fiber Standard: OS2 (ITU-T G.657.A1)
• Number of Fibers: 4
• Connector Type (End 1): LC
• Connector Type (End 2): LC
• Cable Length: 60 m
• Outer Sheath Material: LSZH (Low Smoke Zero Halogen)
• CPR Fire Classification: Dca
• Cable Construction: U-DQ ZN BH (Universal Distribution, Dry, Central Loose Tube, Halogen-free)
• Core/Cladding Diameter: 9/125 µm
• Minimum Bend Radius: 10 mm (Static)
• Insertion Loss (Max.): <0.3 dB per connector
• Return Loss (Min.): >50 dB
• Attenuation at 1310nm: ≤ 0.35 dB/km
• Attenuation at 1550nm: ≤ 0.22 dB/km
• Application Environment: Indoor/Outdoor (Protected)
• Jacket Color: Yellow

Our verdict

Reliable OS2 trunk cable for structured cabling, offering low attenuation and LSZH safety.
