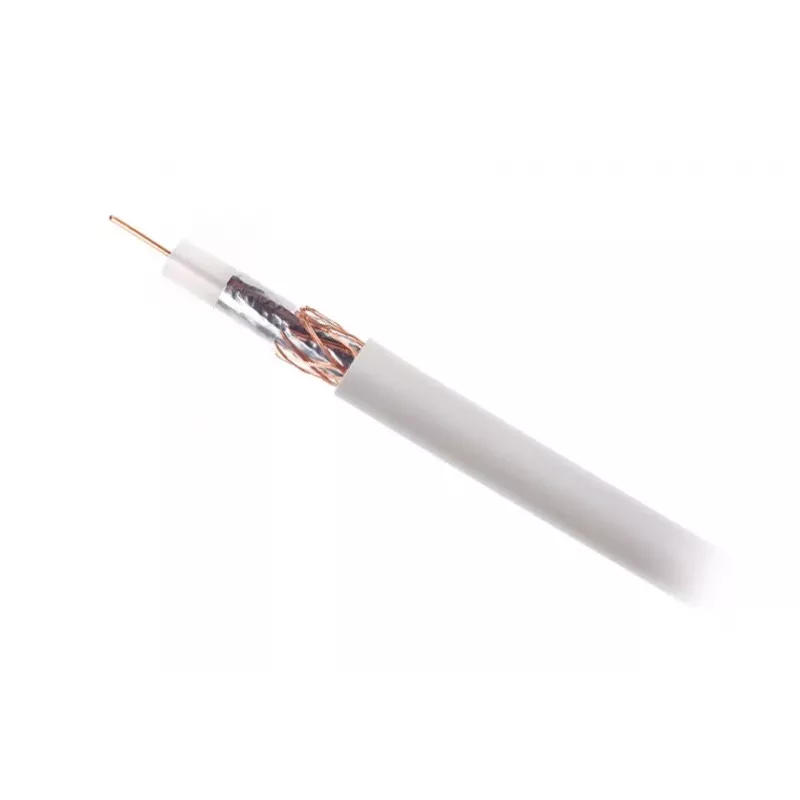

ELEKTROKABEL YWDXpek 75-1.05/4.8 K-100 coaxkabel 100m

The ELEKTROKABEL YWDXpek 75-1.05/4.8 K-100 is a high-quality coaxial cable designed for professional signal transmission in satellite TV, terrestrial TV, radio, and CCTV applications. With a length of 100 meters, it offers reliable performance for long-distance installations.

Advantages

This coaxial cable features a 75 Ohm impedance, double shielding (Al/PET foil + tinned copper braid with 77% coverage), and a bare copper inner conductor (1.05 mm) for excellent signal integrity and minimal interference. The foamed polyethylene dielectric ensures low attenuation and high velocity of propagation (82%).

Suitable for

• Satellite TV (SAT) systems
• Terrestrial TV (DVB-T/T2)
• Radio (FM/DAB)
• CCTV installations

Key specifications

• Cable type: Coaxial
• Impedance: 75 Ohm
• Length: 100 m
• Inner conductor: Bare copper, 1.05 mm
• Dielectric: Foamed polyethylene, 4.8 mm
• Shielding: Double (foil + braid)
• Braid coverage: 77%
• Jacket: PVC, white, 6.8 mm outer diameter
• Attenuation: 7.0 dB/100m @ 200 MHz, 15.0 dB/100m @ 860 MHz, 24.0 dB/100m @ 2150 MHz
• Capacitance: 52 pF/m
• Velocity of propagation: 82%
• Shielding effectiveness: >90 dB

Recommendations

For optimal performance, use with appropriate F-type or BNC connectors (not included). Ensure proper grounding and avoid sharp bends to maintain signal quality.
