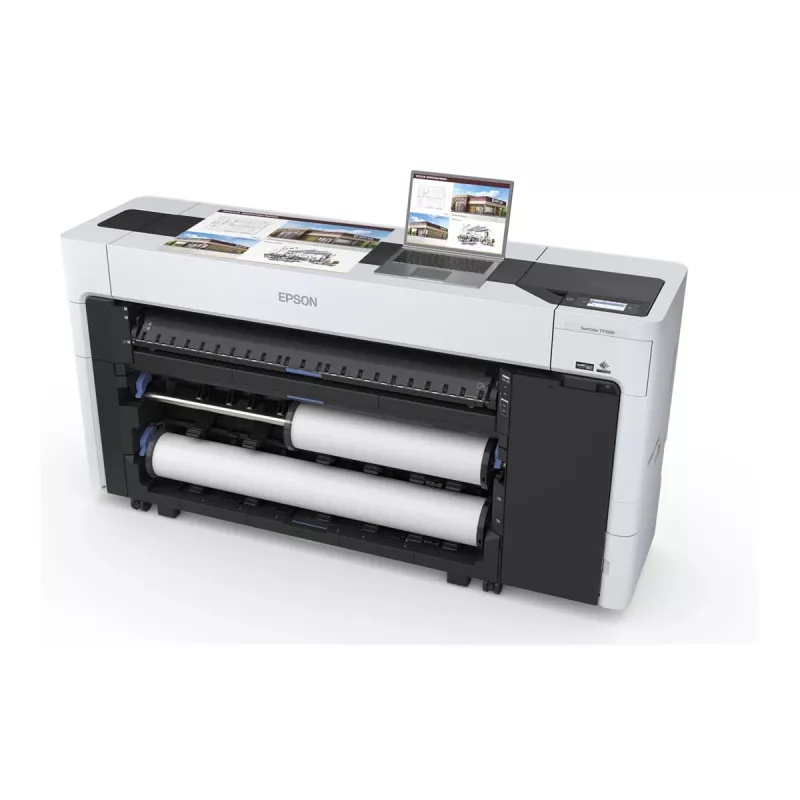

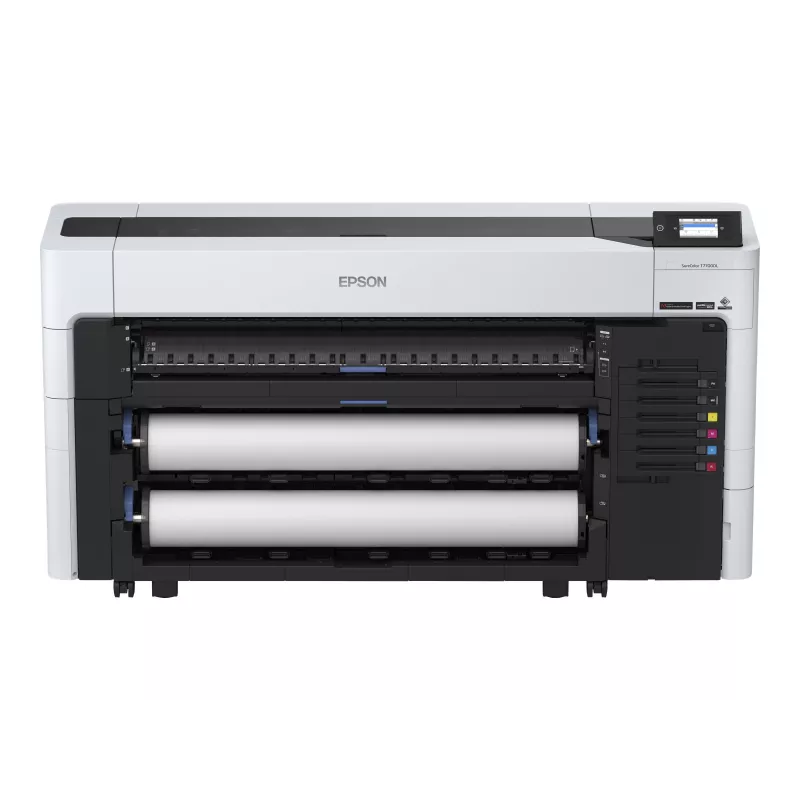

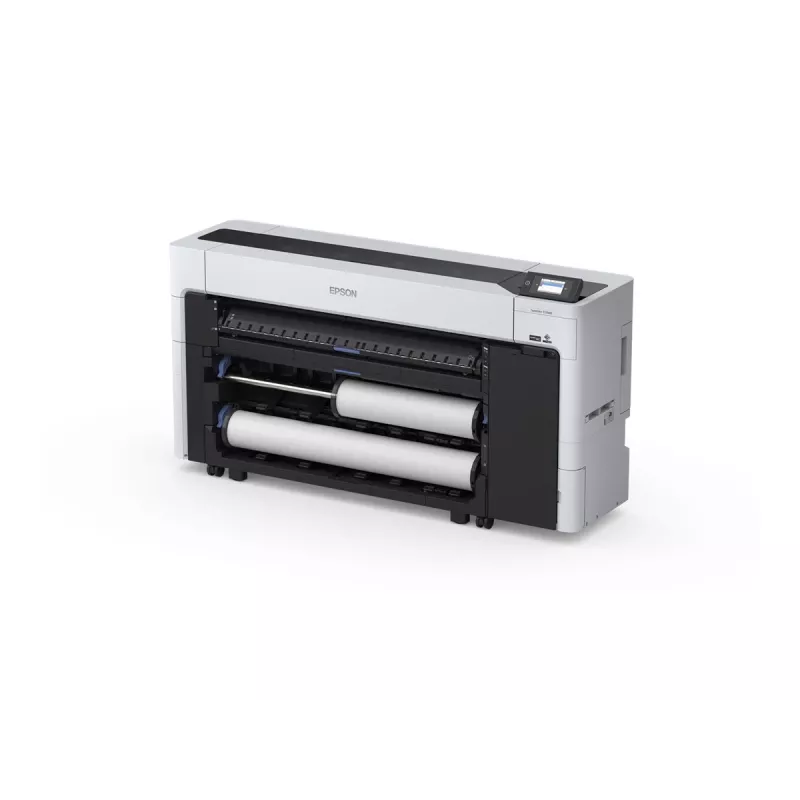

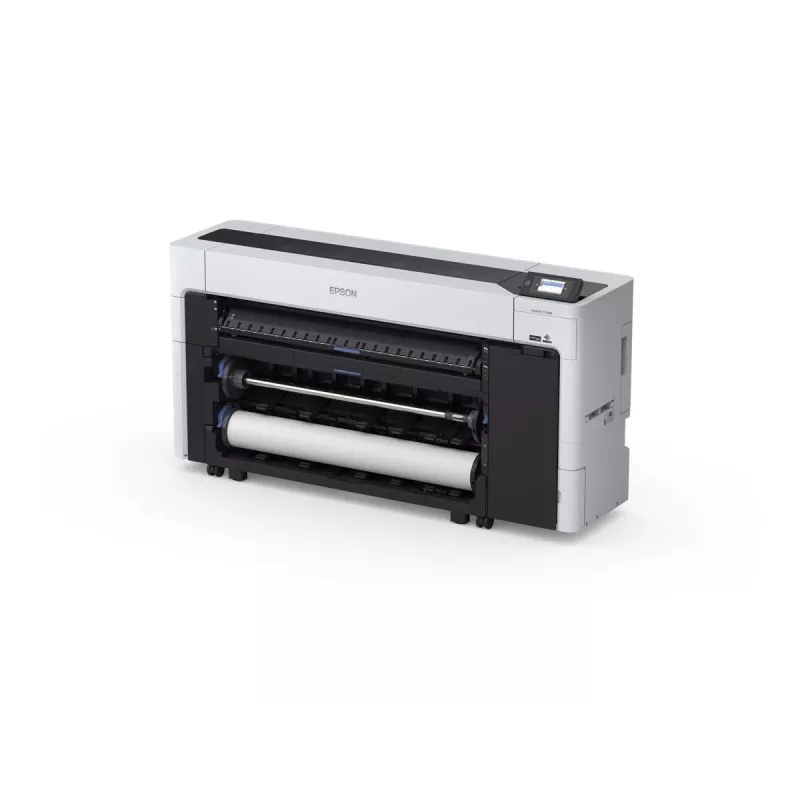

Epson SureColor SC-T7700DL 44-inch dual-rol 6-kleuren grootformaatprinter met PostScript 3 C11CJ74301A0

The Epson SureColor SC-T7700DL stands apart from typical large-format printers by combining a 44-inch print width with dual-roll auto-switching and a six-colour UltraChrome XD3 pigment ink system. This configuration is rare in its class: it delivers both high-speed CAD/GIS output and vivid poster graphics without manual media changes, while Adobe PostScript 3 support ensures seamless integration into professional workflows.

Highlights

• 44-inch (1118 mm) maximum print width with dual-roll auto-switching for uninterrupted production
• Six-colour UltraChrome XD3 pigment inks (CMYK, Photo Black, Red) for sharp lines and rich colour
• PrecisionCore MicroTFP printhead with 2400 x 1200 dpi resolution and minimum line width of 0.02 mm
• Adobe PostScript 3, HP-GL/2, ESC/P-R, and RTL printer languages for broad compatibility
• Auto-loading cut sheet capability and media thickness support from 0.08 mm to 1.5 mm
• 4.3-inch colour LCD touchscreen for intuitive control and job management

In daily use

The SC-T7700DL is built for high-volume technical and graphics environments. Its dual-roll design lets you keep two different media types loaded simultaneously—such as bond paper and glossy photo media—and the printer automatically switches between them per job. A1 CAD drawings print in approximately 25 seconds in standard mode, so large sets are produced quickly. The 4 GB memory and Gigabit Ethernet connection handle complex files with ease, while USB 3.0 offers a direct local option. Ink cartridges are available in 350 ml and 700 ml capacities, reducing the frequency of replacements. The integrated auto-loading cut sheet tray simplifies single-sheet printing without unloading rolls.

Full specifications

• Print technology: PrecisionCore MicroTFP printhead
• Ink type: UltraChrome XD3 pigment ink, 6 colours (CMYK, Photo Black, Red)
• Maximum print resolution: 2400 x 1200 dpi
• Maximum print width: 44 inches (1118 mm)
• Media handling: Dual roll auto-switching, auto-loading cut sheet
• Printer languages: Adobe PostScript 3, HP-GL/2, ESC/P-R, RTL
• Connectivity: USB 3.0, Gigabit Ethernet
• Memory: 4 GB
• Display: 4.3-inch colour LCD touchscreen
• Print speed (A1 CAD): 25 seconds in standard mode
• Ink cartridge capacity: 350 ml / 700 ml
• Minimum line width: 0.02 mm
• Media thickness: 0.08 mm - 1.5 mm
• Power consumption (printing): 90 W

Final note

For professional print shops, engineering firms, and graphic designers who demand both speed and colour accuracy, the Epson SureColor SC-T7700DL is a robust, dual-roll workhorse that minimises downtime and maximises output quality.
