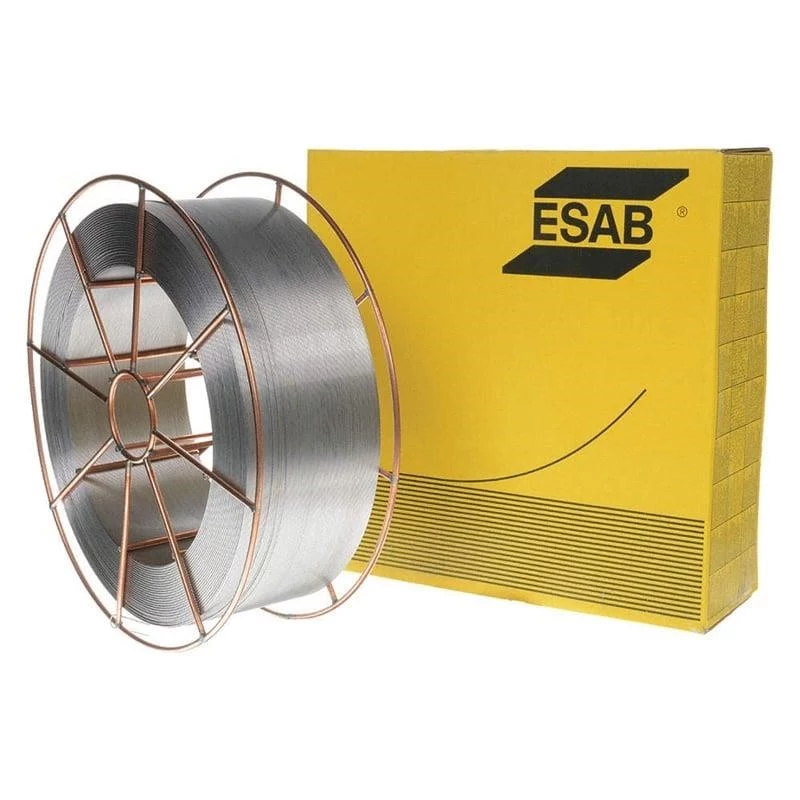

ESAB OK Aristorod 12.50 D1.0 18kg massief lasdraad ER70S-6

Welders facing inconsistent arc stability and porosity on unalloyed and carbon steels need a wire that delivers clean, strong welds with minimal spatter. The ESAB OK Aristorod 12.50 is a copper-coated solid wire engineered for GMAW (MIG/MAG) welding, offering a smooth arc and excellent feedability even at high wire speeds. Its precise chemical composition and controlled copper coating ensure reliable performance across a wide range of applications, from general fabrication to robotic welding.

Who is it for

This wire is ideal for professional welders, fabricators, and manufacturers working with unalloyed and carbon steels. It suits both manual and automated welding setups, especially where high productivity and consistent weld quality are required. Whether you are welding thin sheet metal or thicker structural components, this ER70S-6 wire provides the versatility needed for all-position welding.

Main features

• Premium copper-coated solid wire for stable arc and low spatter
• Classified as AWS A5.18 ER70S-6 and ISO 14341-A G3Si1
• Excellent feedability with 18 kg B300 spool for extended welding time
• Suitable for welding with CO2 or Ar/CO2 mixed shielding gases
• All-position welding capability with DC+ polarity
• High toughness: typical impact strength of 100 J at -20°C
• Approved by major classification societies: ABS, BV, DNV, GL, LR, TUV

Specifications

• Wire diameter: 1.0 mm
• Spool weight: 18 kg
• Spool type: B300
• Welding process: GMAW (MIG/MAG)
• Shielding gas: CO2, Ar/CO2 mixtures
• Typical tensile strength: 560 MPa
• Typical yield strength: 470 MPa
• Typical elongation: 26%
• Typical impact strength: 100 J at -20°C
• Chemical composition: C 0.08%, Si 0.90%, Mn 1.50%
• Welding positions: All positions
• Current type: DC+

Tips

For optimal results, use a shielding gas mixture of Ar/18%CO2 for spray arc transfer or 100% CO2 for short circuit welding. Ensure proper storage in a dry environment to maintain the copper coating and prevent moisture pickup. Adjust wire feed speed and voltage according to material thickness and joint configuration.
