EURA ADP-20A3 audio intercomsysteem grafiet wit

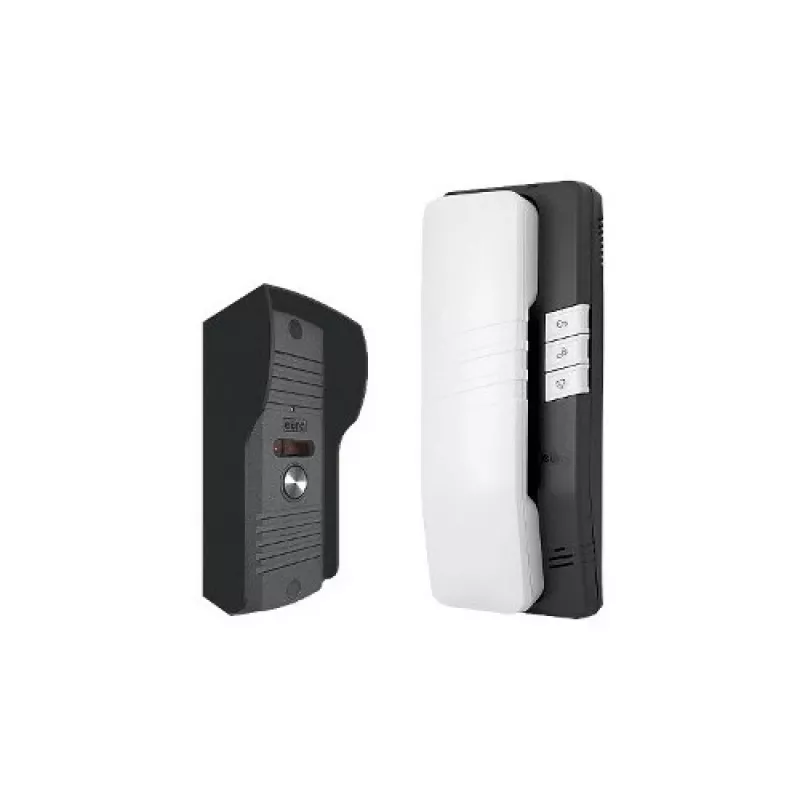

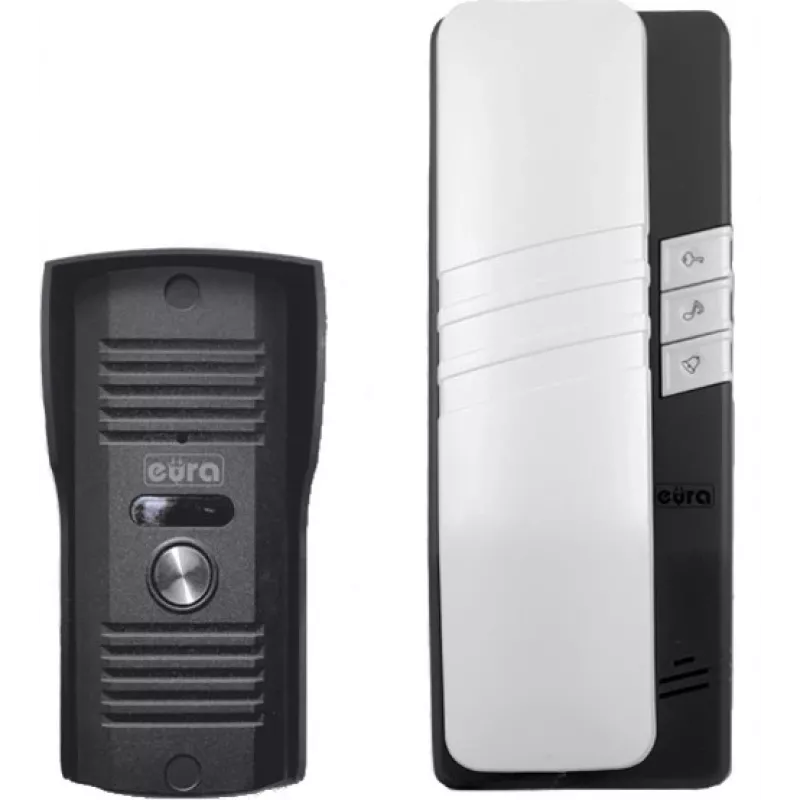

The EURA ADP-20A3 is a reliable 2-wire audio intercom system designed for single-family homes. It includes one outdoor panel with a backlit nameplate and rain cover, and one indoor handset with volume control, door release, and gate control buttons. The system supports an additional indoor handset for expanded coverage.

Advantages

Easy 2-wire installation, durable aluminum outdoor panel, and clear audio communication. The outdoor unit is weather-resistant and features a rain cover for added protection.

Suitable for

• Single-family homes requiring a simple audio intercom
• Replacement or upgrade of existing 2-wire systems
• Properties needing door release and gate control

Key specifications

• System Type: Audio Intercom System

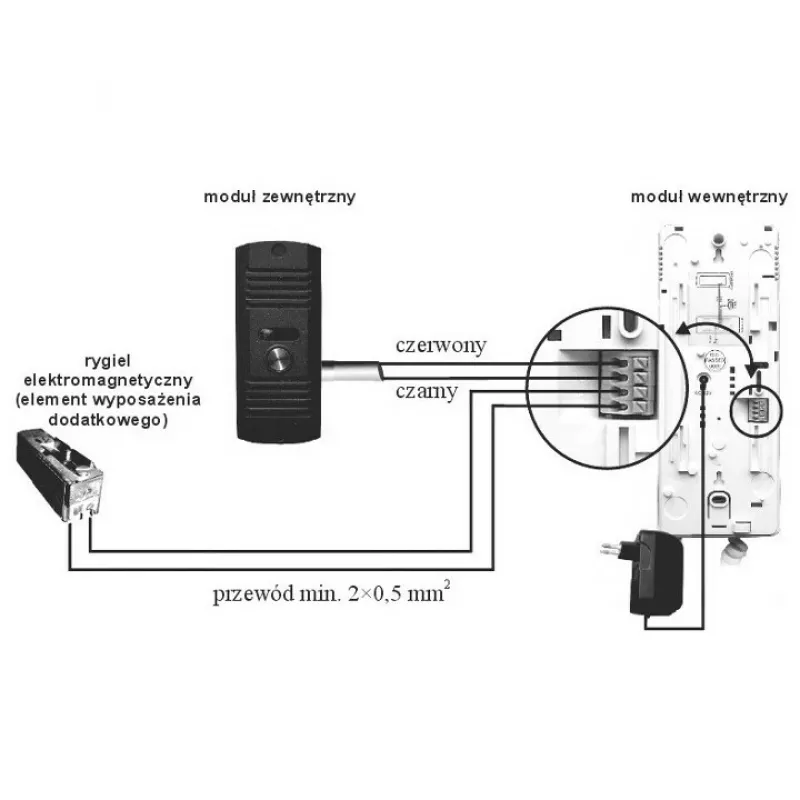

• Wiring: 2-Wire
• Outdoor Panel Material: Aluminum Alloy
• Outdoor Panel Mounting: Surface Mount
• Outdoor Panel Features: Backlit Nameplate, Rain Cover
• Indoor Unit Features: Volume Control, Door Release Button, Gate Control Button
• Power Supply: AC 230V / 50Hz
• Max. Cable Length: 100m (with 0.5mm² cable)
• Outdoor Unit Dimensions: 80 x 140 x 30 mm
• Indoor Unit Dimensions: 80 x 210 x 40 mm
• Operating Temperature (Outdoor): -15°C to +50°C
• Expandability: Supports 1 additional indoor handset
• Door Release Output: 12V DC
• Gate Control Output: Potential-free relay contact (NO)
• Number of Indoor Units Included: 1
• Number of Outdoor Panels Included: 1

Recommendations

For best performance, use 0.5mm² or thicker cable and keep the total cable length under 100m. The system is designed for single-family use and can be expanded with one additional indoor handset.
