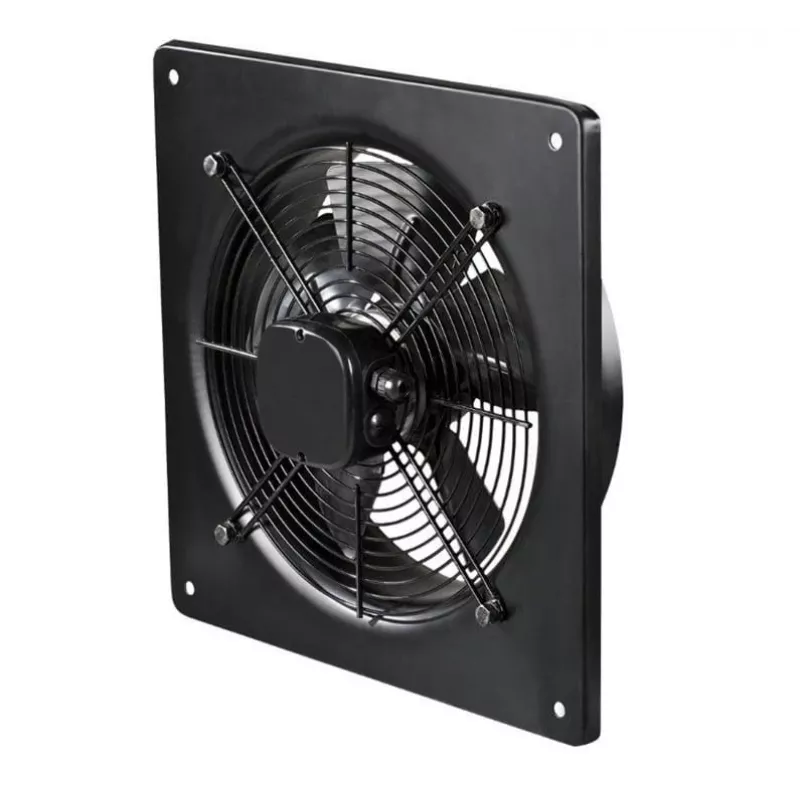

FAN OV 2E250 axiale ventilator 230V AC 250mm

The FAN OV 2E250 is a high-performance axial fan designed for efficient cooling in various industrial and electronic applications. With a robust AC capacitor motor and durable construction, it delivers reliable airflow of up to 800 m³/h at 2500 RPM.

Advantages

This fan offers a perfect balance of airflow and noise level, operating at just 65 dB(A). Its ball bearing system ensures a long service life of 40,000 hours at 40°C, while the die-cast aluminum housing and black-coated steel impeller provide durability and corrosion resistance.

Suitable for

• Cooling electronic enclosures and cabinets
• Ventilation in industrial machinery
• Heat dissipation in power supplies and UPS systems
• General purpose air movement

Key specifications

• Fan Type: Axial Fan
• Motor Type: AC Capacitor Motor
• Nominal Voltage: 230 V AC
• Frequency: 50/60 Hz
• Power Consumption: 58 W (50Hz)
• Current Consumption: 0.26 A (50Hz)
• Airflow: 800 m³/h (50Hz)
• Speed: 2500 RPM (50Hz)
• Noise Level: 65 dB(A) (50Hz)
• Bearing Type: Ball Bearing
• Housing Material: Die-cast Aluminum
• Impeller Material: Sheet Steel, Black Coated
• Protection Class: IP20
• Operating Temperature: -25 to +70 °C
• Connection: Wire Leads
• Capacitor Required: 2 µF, 400 VDB
• Life Expectancy: 40,000 hours (L10 at 40°C)
• Mounting: Flange Mount
• Fan Diameter: 250 mm
• Fan Depth: 80 mm

Recommendations

For optimal performance, use with a suitable capacitor (2 µF, 400 VDB) and ensure proper mounting to maximize airflow. This fan is ideal for applications requiring reliable and continuous operation.
