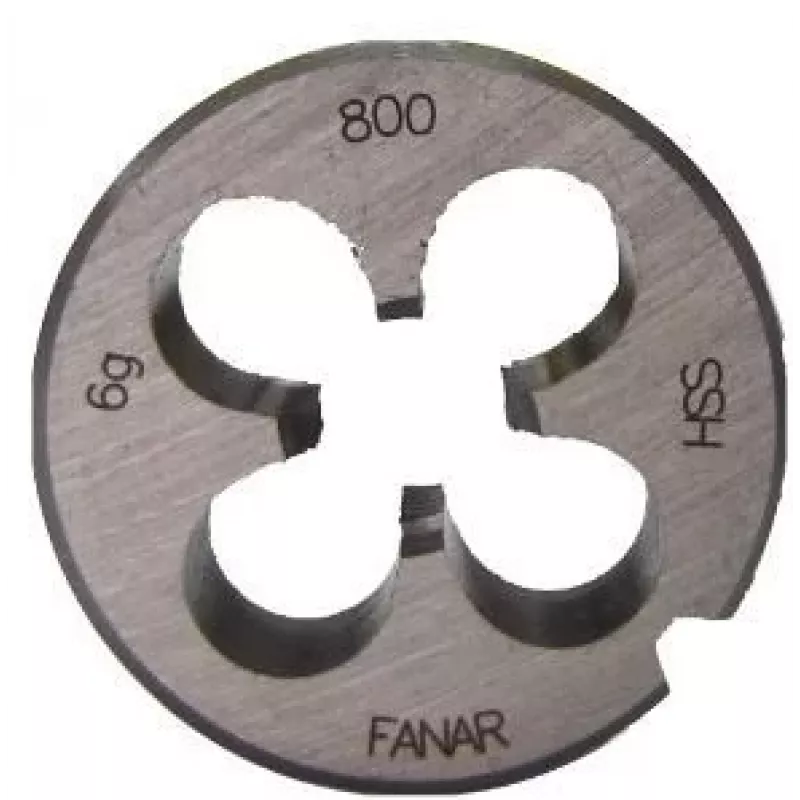

FANAR ronddraadsnijplaat M27 x 2,00 mm HSS800 DIN 22568

Where ordinary carbon steel dies dull quickly and tear threads, this FANAR round threading die holds its edge. Precision-ground from HSS800 high-speed steel, it cuts clean, accurate M27 x 2.00 mm metric coarse threads in steel, cast iron, and non-ferrous metals. The DIN 22568 geometry ensures consistent pitch and tolerance class 6g, so every fastener fits reliably.

Highlights

• Metric ISO coarse thread: M27 x 2.00 mm, right-hand cutting direction
• Manufactured to DIN 22568 with tolerance class 6g for precision threading
• High-speed steel HSS800 – bright, uncoated finish with 5 precision-ground cutting edges
• Outer diameter 65 mm, thickness 20 mm – fits standard die stocks and holders
• Suitable for manual or machine threading on steel, cast iron, and non-ferrous metals

In daily use

Mount the die in a suitable die stock or holder and apply steady pressure with a suitable cutting lubricant. The five cutting edges distribute load evenly, reducing chatter and producing smooth, dimensionally accurate external threads. The 65 mm outer diameter and 20 mm thickness provide ample clamping surface and rigidity, while the bright finish resists corrosion during storage. Ideal for maintenance, repair, and production threading of bolts, studs, and shafts.

Full specifications

• Brand: FANAR
• Model: N1-121001-0276
• MPN: N1-121001-0276
• EAN: 5900920200168
• Thread standard: Metric ISO (M)
• Nominal thread diameter: 27 mm
• Thread pitch: 2.00 mm
• Thread type: Coarse
• Die type: Round threading die
• Material: High-speed steel (HSS)
• Material grade: HSS800
• Manufacturing standard: DIN 22568
• Cutting direction: Right-hand
• Outer diameter: 65 mm
• Thickness: 20 mm
• Tolerance class: 6g
• Application: Cutting external threads on steel, cast iron, non-ferrous metals
• Tool compatibility: Requires a suitable die stock/holder
• Surface finish: Bright (uncoated)
• Manufacturing process: Precision ground
• Number of cutting edges: 5
• Recommended use: Manual or machine threading

Final note

A dependable choice for workshops that demand clean, repeatable threads without premature tool wear.
