FBT AC AC-W 568 verstelbare wandsteun voor ARCHON-serie, zwart

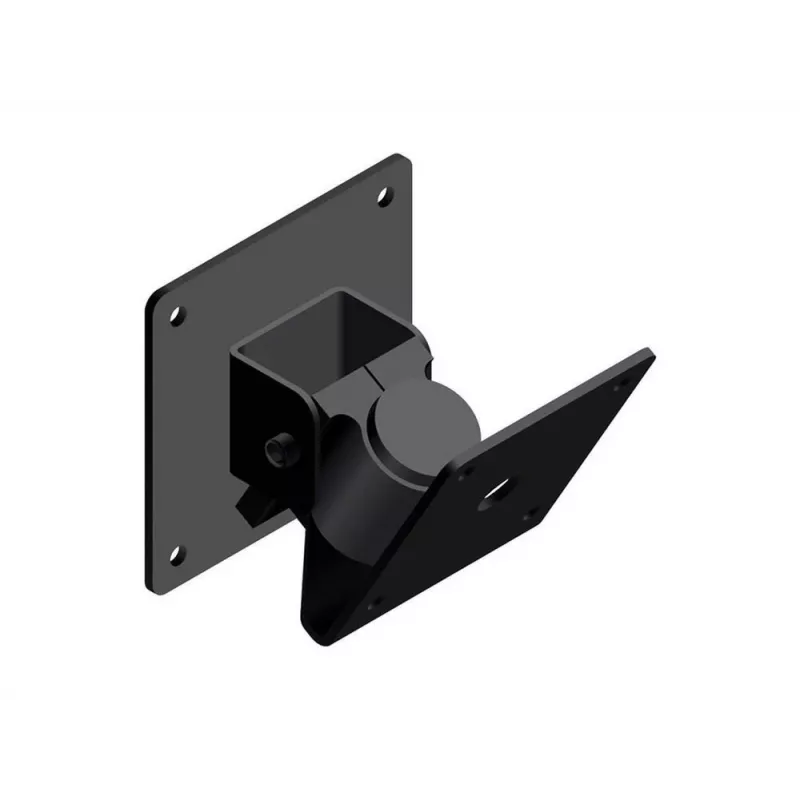

The FBT AC AC-W 568 is a robust, adjustable wall mount bracket specifically designed for the FBT ARCHON series loudspeakers, including models such as ARCHON 106, 108, 110, and 112. Engineered for professional audio installations, this bracket provides secure and flexible positioning to optimize sound coverage in commercial sound systems, houses of worship, auditoriums, and other indoor venues.

Advantages

This wall mount bracket offers exceptional adjustability with tilt and swivel/pan capabilities, allowing precise aiming of the loudspeaker. Its steel construction with a powder-coated finish ensures durability and a sleek appearance. The bracket supports a maximum load capacity of 20 kg (44 lbs), making it suitable for a wide range of ARCHON series speakers. Installation is straightforward, with speaker mounting hardware included; wall mounting hardware is not included, allowing you to select the appropriate anchors for your specific wall type.

Suitable for

• Professional audio installations requiring precise speaker positioning
• Commercial sound systems in retail, hospitality, and corporate environments
• Houses of worship, auditoriums, and conference rooms
• Indoor applications where a secure, adjustable wall mount is needed

Key specifications

• Product Type: Wall Mount Bracket
• Compatibility: FBT ARCHON Series Loudspeakers (ARCHON 106, 108, 110, 112)
• Adjustability: Tilt and Swivel/Pan
• Maximum Load Capacity: 20 kg (44 lbs)
• Tilt Angle Range: -30° to +30°
• Swivel/Pan Angle Range: -90° to +90°
• Material: Steel
• Finish: Powder-coated
• Color: Black
• Mounting Type: Wall
• Distance from Wall: Approx. 120 mm (4.7 inches)
• Application: Professional Audio Installation, Commercial Sound Systems
• Speaker Mounting Hardware: Included
• Wall Mounting Hardware: Not Included
• Recommended Use: Indoor
• Mounting Orientation: Vertical

Recommendations

For optimal performance and safety, ensure that the wall structure can support the combined weight of the bracket and loudspeaker. Use appropriate wall anchors (not included) rated for the load. Always follow the installation instructions provided with the bracket.
